Head Units

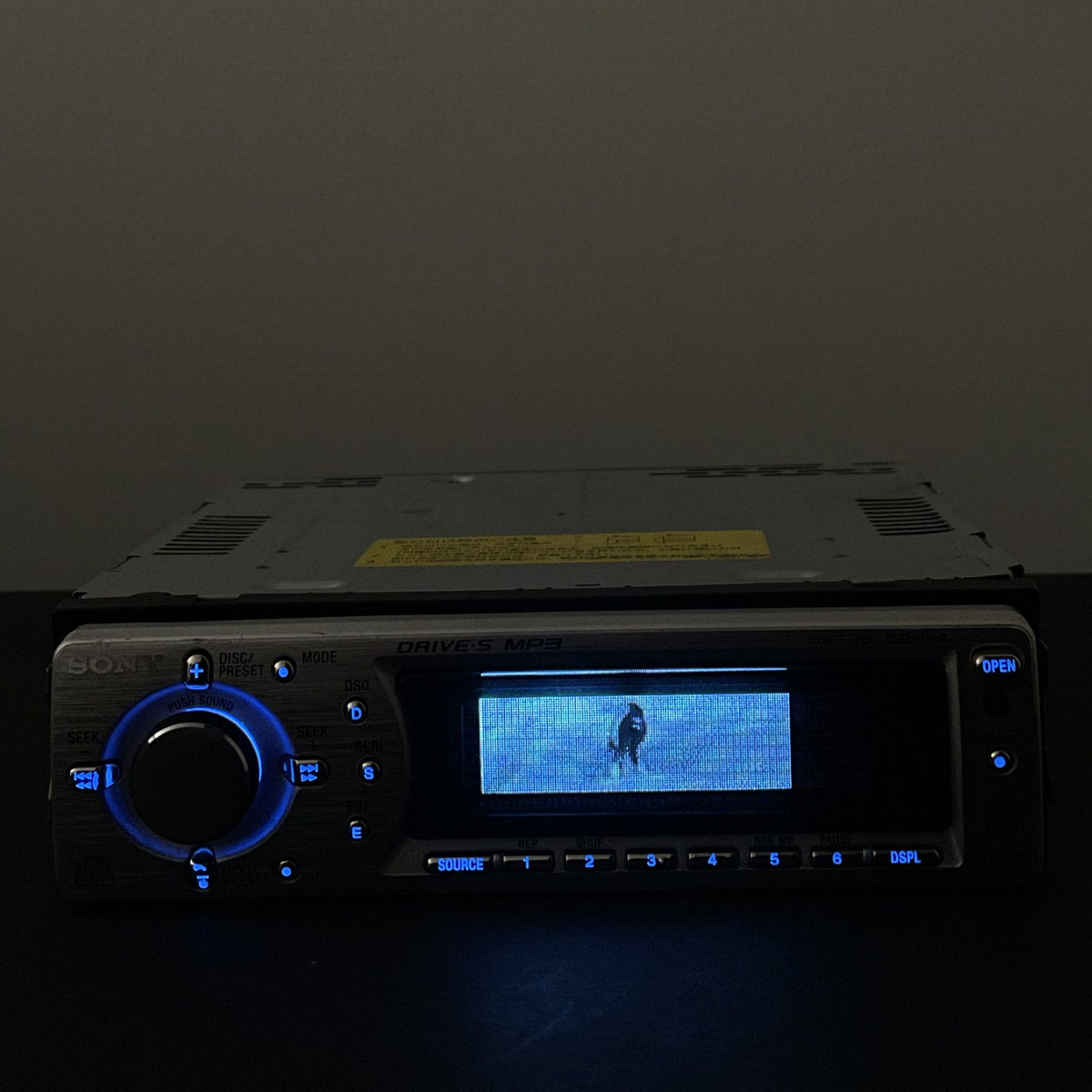

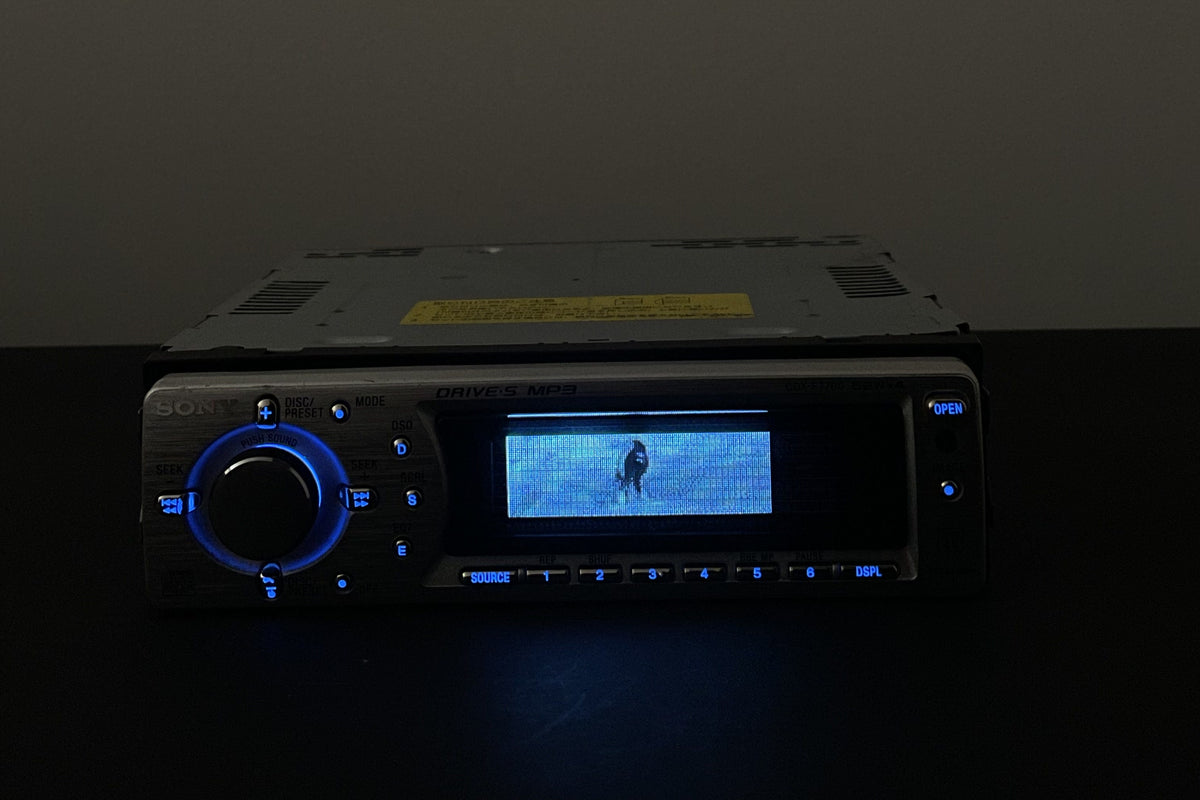

Sony CDX-F7700
AM/FM コンパクトディスクプレーヤー — The Sony CDX-F7700 is a single-DIN CD receiver from Sony's North American Mobile ES line up. Worth noting that its a JDM build: the FM tuner covers the Japan domestic 76–90MHz band, so factor that in if FM reception matters to you. That aside, it's a well-built unit — a 52W×4 amp, a genuinely clean CD section (120dB S/N, 0.01% THD), Sony's BUS system inputs for linking to other compatible components, and front/rear/subwoofer pre-outs at a healthy 4V level. A solid period CD deck.
Bluetooth has been added, and tested.
Amplifier has been tested successfully.
CD has been tested successfully.
Harness Included.
| CDX-F7700 — KEY FEATURES | |
|---|---|
| Media | CD player — single-DIN CD receiver (Sony Mobile ES Bus system) |
| Tuner | FM/AM (JDM band) |
| Power | 52W × 4 max output (4 Ω) / 23.2W × 4 continuous (4 Ω, 20 Hz–20 kHz, ≤5% THD) |
| CD spec | S/N 120 dB, frequency response 10 Hz–20 kHz, separation 85 dB, THD 0.01% |
| Tone Control | Bass ±10 dB (62 Hz), Treble ±10 dB (16 kHz), Loudness +8 dB (100 Hz) / +2 dB (10 kHz) |
| Pre-out | 4V level, 220 Ω impedance — front/rear + mono subwoofer output |
| Form factor | Single DIN — approx. 178 × 50 × 178 mm / approx. 1.2 kg |
A note on this item
This is a vintage head unit. Every deck is tested by us before listing, but as a used product we're unable to offer a warranty. If it arrives damaged in transit and has developed a fault we are here to help ASAP, please get in touch — we'll do everything we can to sort it out for you. We just ask that you please be mindful of the product's age. Harness is not included unless otherwise specified in the listing.
