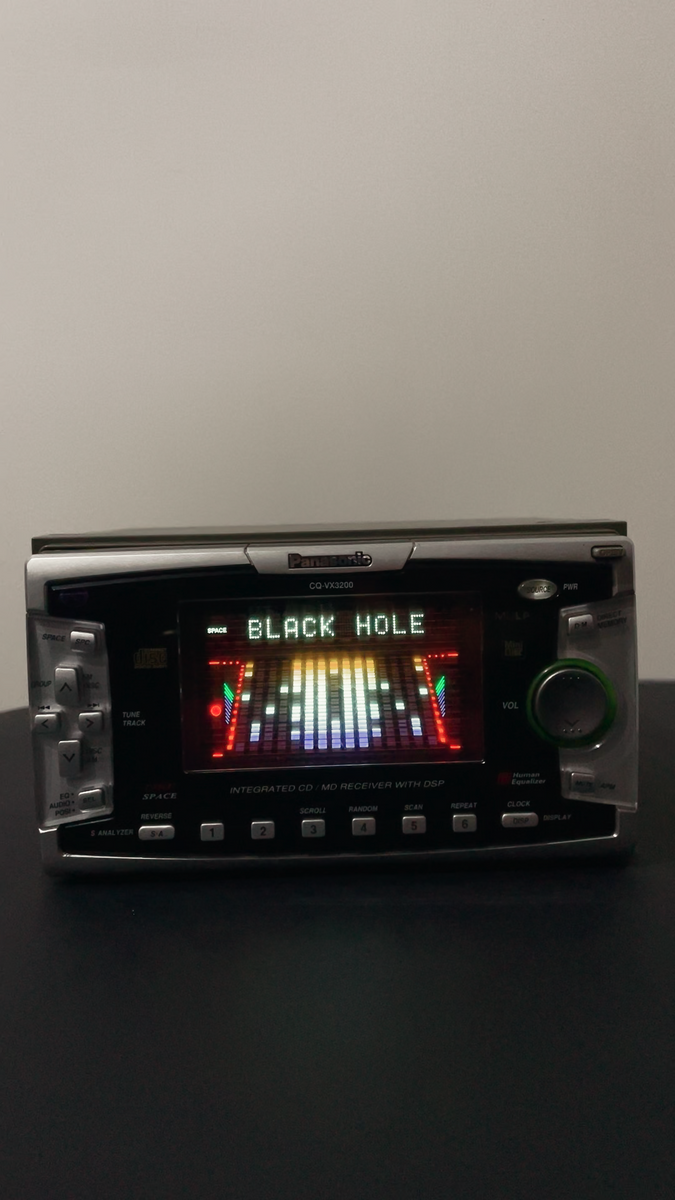

Panasonic CQ-VX3200D
インテグレーテッド CD・MD・DSPレシーバー — The Panasonic CQ-VX3200D is an integrated CD/MD/DSP receiver from Panasonic's early-2000s lineup, packing a 41W×4 amp and a 7-mode DSP sound field (Live House, Concert Hall, Jazz Club, Stadium, Disco, Vocal, Cinema) into a double-DIN shell. The "Gradation FL" display gives the readout a layered, three-dimensional look that was a step up from the flat displays of cheaper decks. MDLP support means longer recording times on MD, and the Super Dynamic Bass Boost (S.D.B.B.) plus Super Bass Control Subwoofer mode let you run the rear channel output as a makeshift subwoofer feed. A solid, fuss-free Panasonic deck.
Issues:
Intermittent Illumination issues. The display is illuminating however buttons are failing to do so. Please consider this when purchasing it.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
CD has been tested successfully.
MD has not been tested.
Harness Included.
| CQ-VX3200D — KEY FEATURES | |
|---|---|
| Media | CD / CD-R/RW (MP3 playback) + MiniDisc (MDLP support) — integrated CD/MD/DSP receiver |
| Tuner | FM/AM — FM 76.0–89.9 MHz (Japan domestic band), AM 522–1,629 kHz (9 kHz steps) |
| Power | 41W × 4 max output / 16W × 4 continuous (4 Ω, 1 kHz, 1% THD), 1.8V pre-out |
| DSP / Sound | 7-mode sound field (Live House, Concert Hall, Jazz Club, Stadium, Disco, Vocal, Cinema), 7-band EQ (80 Hz–10 kHz, ±12 dB) |
| Bass tech | Super Dynamic Bass Boost (S.D.B.B.) + Super Bass Control Subwoofer mode (rear channel as sub) |
| Display | Gradation FL display — layered, 3D-style readout |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 160 mm / approx. 2.4 kg |
