Head Units

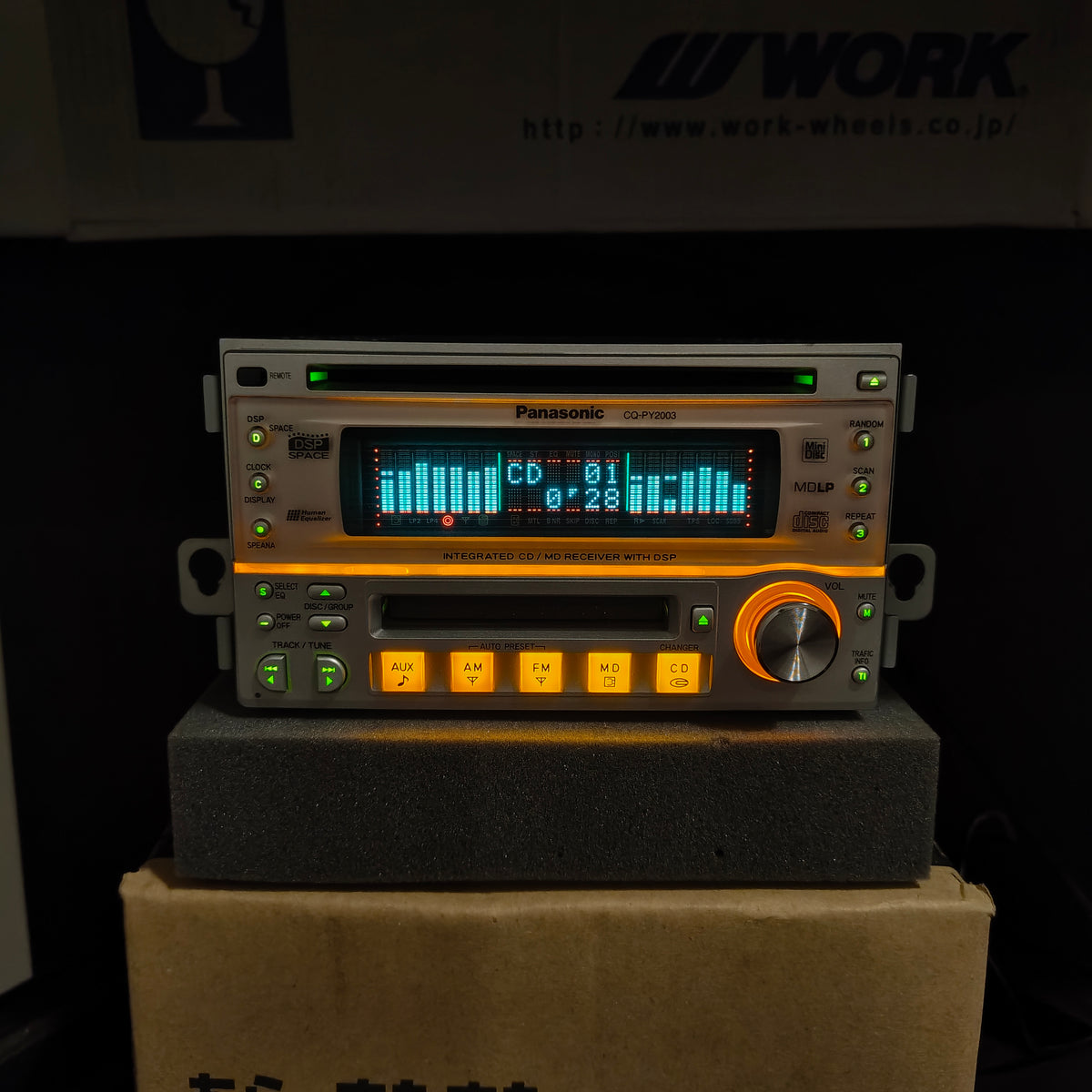

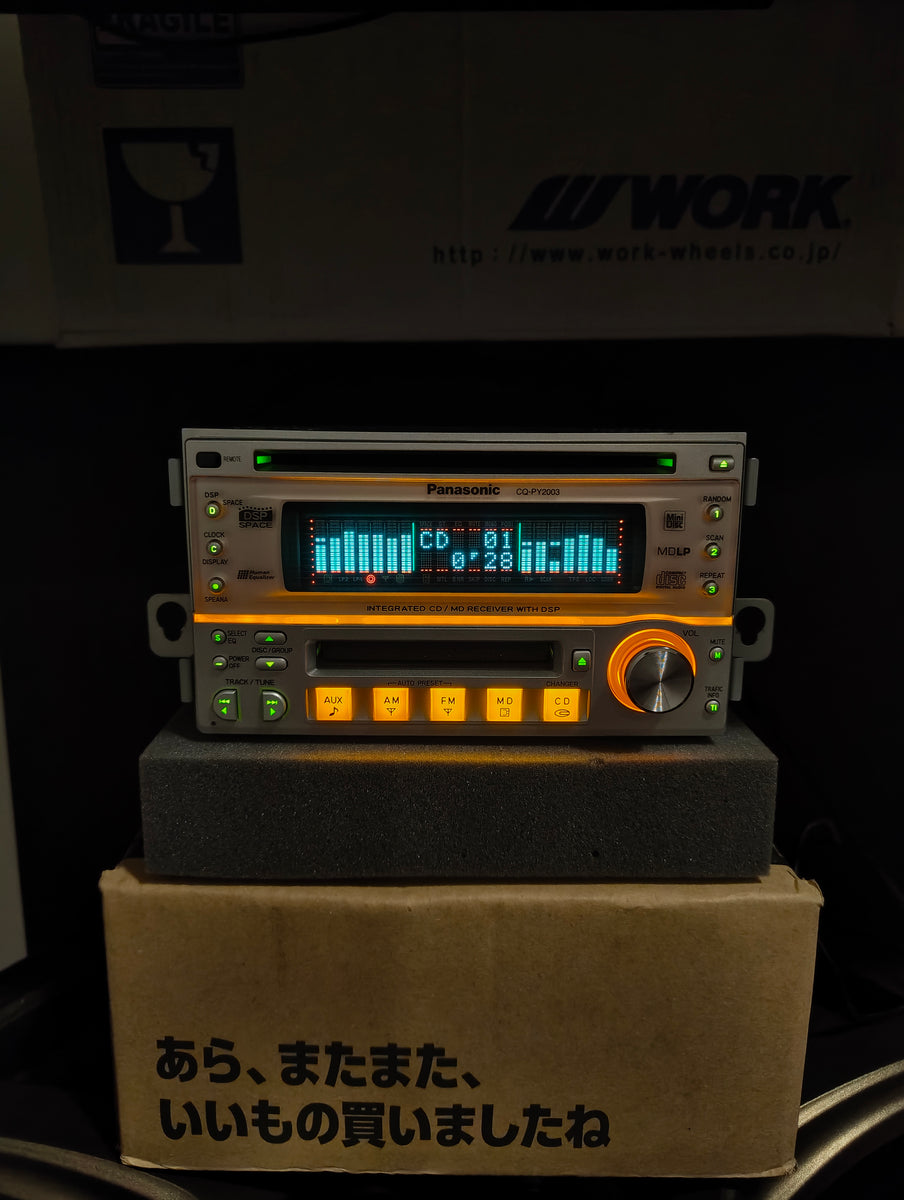

Panasonic CQ-PY2003
MDコンポデッキ — The CQ-PY2003 is Panasonic's double-DIN MD/CD unit with a built-in DSP — seven space modes and a seven-band EQ with ±12dB of range on each band. That's more sound tuning than most units from this era offered out of the box. Both decks run clean, AUX input is present, and the pre-out is a solid 2Vrms. A well-sorted deck that looks CRISP. That's probably the best way we can describe it, it just looks bloody crisp in its space frame.
Bluetooth is tested and included.
Amplifier has been tested successfully.
CD has been tested successfully.
MD has been tested successfully.
Harness Included.
| CQ-PY2003 — KEY FEATURES | |
|---|---|
| Media | MiniDisc · CD · AUX IN |
| Tuner | FM 76.0–89.9 MHz · AM 522–1629 kHz — JDM tuner range |
| Power | 45W × 4 max · 16W × 4 rated (1kHz, 1%, 4Ω) |
| DSP | 7 space modes · 7-band EQ (80/160/320/640/1.6k/4k/10k Hz) · ±12 dB per band (13 steps) |
| CD spec | S/N 85 dB (IHF, A) · 5 Hz–20 kHz · Wow & Flutter below measurable limit |
| MD spec | S/N 85 dB (IHF, A) · 5 Hz–20 kHz · Wow & Flutter below measurable limit |
| Pre-out | 2Vrms (CD) · Output impedance 600Ω |
| Form factor | Double DIN — 178 × 100 × 160 mm / 2.2 kg |
A note on this item
This is a vintage head unit. Every deck is tested by us before listing, but as a used product we're unable to offer a warranty. If it arrives damaged in transit and has developed a fault we are here to help ASAP, please get in touch — we'll do everything we can to sort it out for you. We just ask that you please be mindful of the product's age. Harness is not included unless otherwise specified in the listing.
How We Prep Your Deck →
