Kenwood SW201X

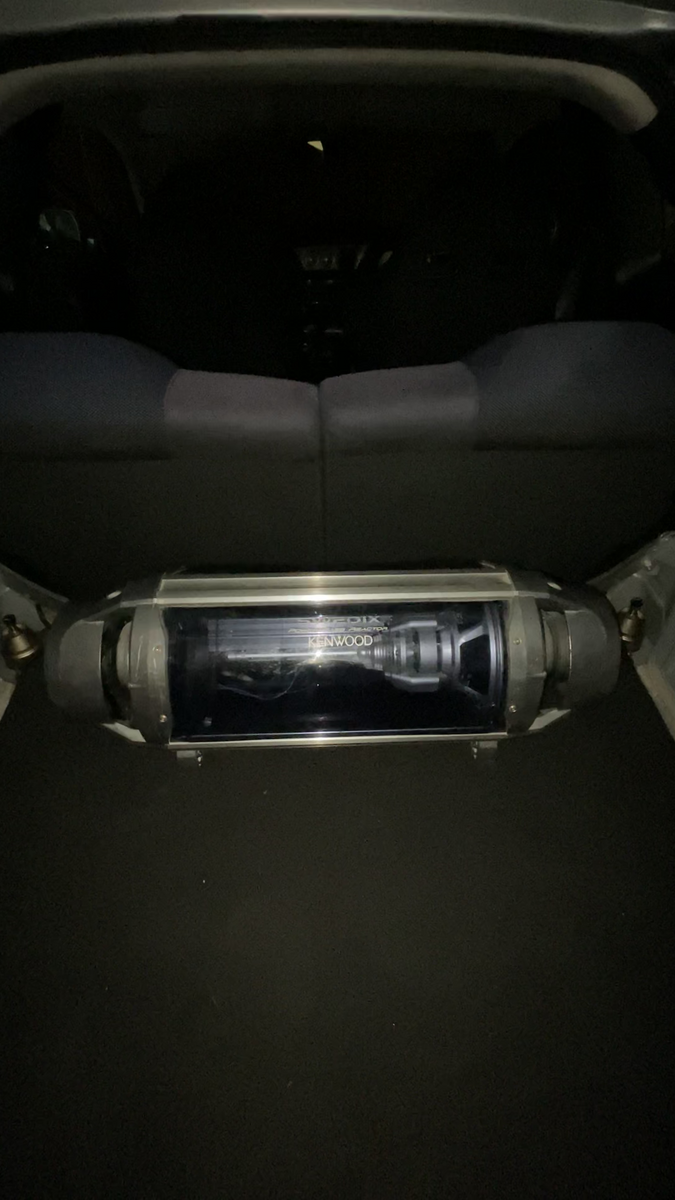

パワーバスリアクター（筒型サブウーファーシステム） — The Kenwood SW201X "Power Bass Reactor" is a self-contained, tube-shaped powered subwoofer — a 200mm long-throw woofer at one end of a sealed cylindrical enclosure, a matching 200mm passive radiator at the other, and a built-in amp driving the whole thing. The dual voice coil woofer is fed 240W (60W × 2Ω × 4, dual-coil drive), with a 3-step low-pass crossover (50/80/120Hz), a 0°/180° phase switch for dialling in cabin placement, and a bass boost switch. A wired remote handles level, crossover frequency, boost and the blue CFL illumination ring from the driver's seat. Accepts either RCA line-level or high-level speaker inputs, so it'll hook up to almost anything. A genuinely eye-catching, period "tune-up" subwoofer.
Harness Included.
| SW201X — KEY FEATURES | |
|---|---|
| Type | Tube-shaped (筒型) self-contained powered subwoofer system, built-in amplifier |
| Max Output | 240W (60W × 2Ω × 4, dual voice coil drive) |
| Frequency Response | 20–120 Hz |
| S/N Ratio | 85 dB |
| Crossover | Low-pass, 3-step switchable: 50 Hz / 80 Hz / 120 Hz |
| Phase Switch | 0° / 180° |
| Inputs | RCA line input 100mV / 10kΩ, high-level (speaker) input 1.0V / 1kΩ |
| Power | DC 14.4V (operating range 10.5–16V), max current draw 14A, fuse 15A |
| Cabinet | Passive radiator type, ABS plastic construction |
| Driver Complement | 200mm Strato Blue Pearl P.P. injection-moulded cone woofer + matching 200mm passive radiator |
| Dimensions / Weight | 738 (W) × 260 (H) × 246 (D) mm / approx. 8.5 kg |
