Kenwood M909

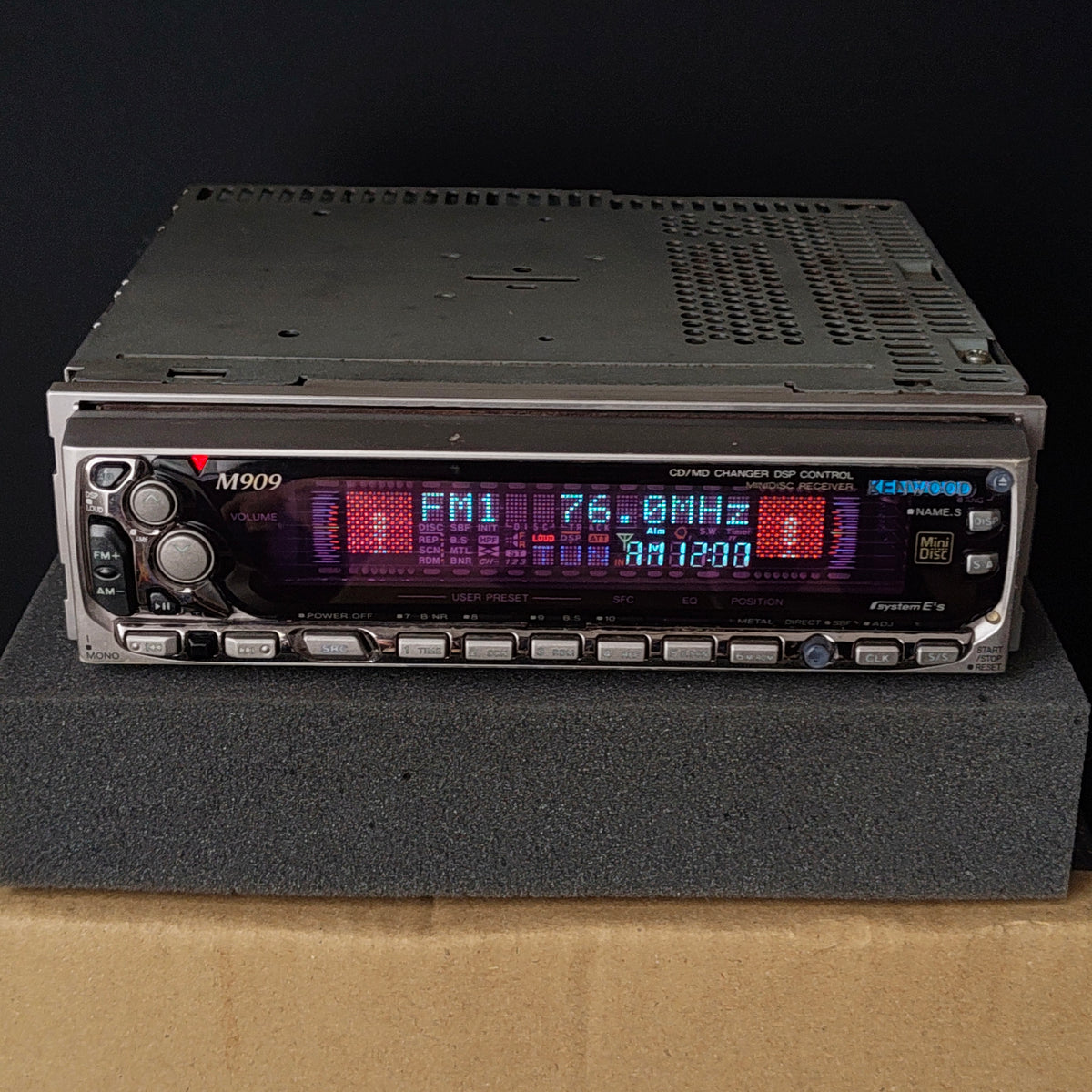

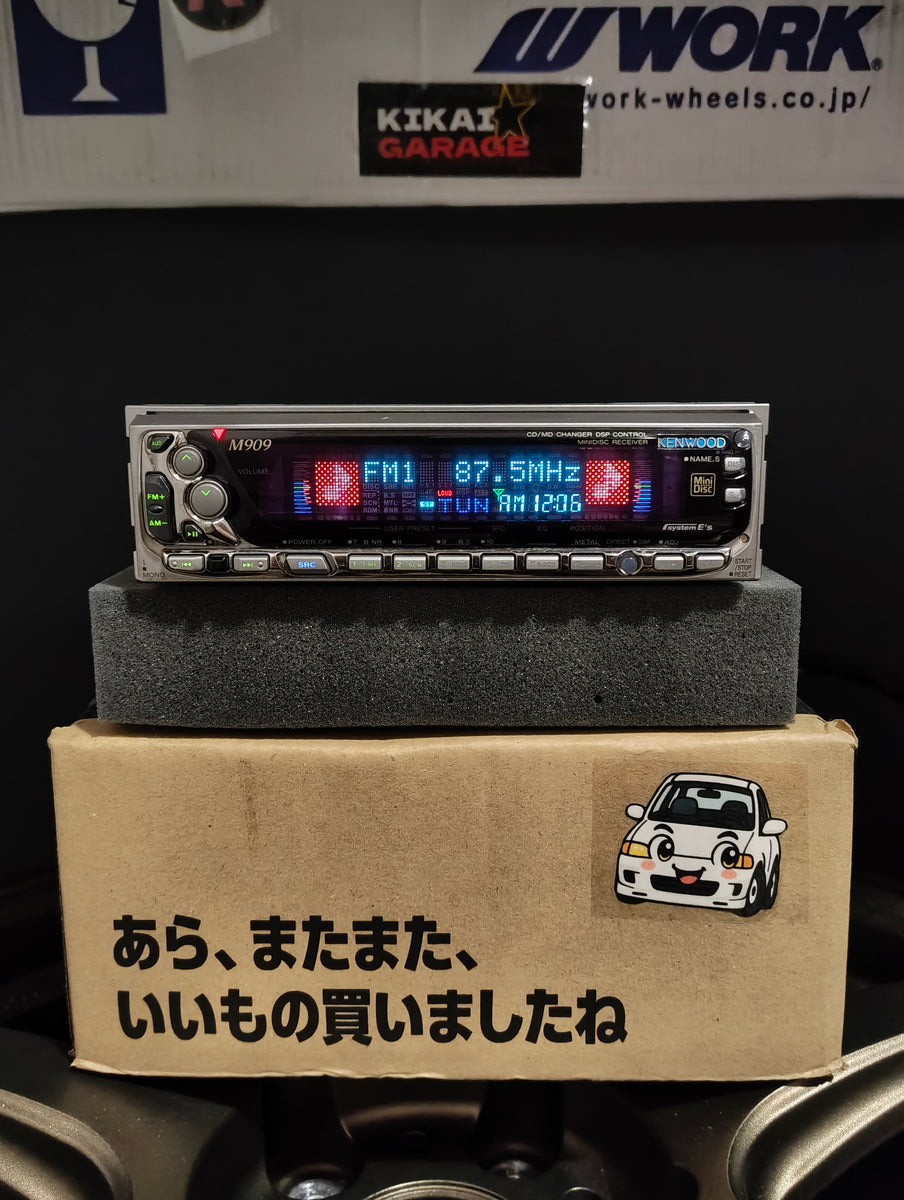

電動フルオートスライドパネル MDレシーバー — The Kenwood M909 is an MD receiver built around Kenwood's electric full-auto slide panel — a motorised face that opens and closes itself, a mechanism borrowed from Kenwood's flagship 2DIN decks of the era and squeezed into this single-DIN unit. Inside, the "System E's" hybrid IC cuts distortion through a 44W×4 amplifier, backed by a twin-stabilised "System E's PRO" power supply for cleaner output under load. The display is Kenwood's "Varius Sign" FL tube — a 15×15 dot matrix running a genuinely wide range of animations and readouts, with three-step brightness adjustment to suit the cabin. MD kana titles and CD text (via changer) are both supported, there's a 12-hour clock with stopwatch, timer and alarm modes, and a gold-plated 1.5V high-voltage pre-out for driving a subwoofer with real headroom. A contoured hand-grip wired remote rounds it out — a genuinely theatrical deck for its generation.
Amplifier has been tested successfully.
MD has has been tested successfully.
Harness Included.
| M909 — KEY FEATURES | |
|---|---|
| Media | MiniDisc playback (MD kana title display, CD TEXT display via changer) — electric full-auto slide panel MD receiver |
| Tuner | FM/AM — FM 76.0–90.0 MHz (Japan domestic band, 100 kHz steps), AM 522–1,629 kHz (9 kHz steps, 28dBμ sensitivity) |
| Power | 44W × 4 max output / 28W × 4 continuous (4 Ω, 1 kHz, 10% THD), 1500mV gold-plated pre-out (FM/10 kΩ) |
| Sound tech | "System E's" hybrid IC distortion reduction + "System E's PRO" twin stabilised power supply |
| Display | "Varius Sign" FL display tube — 15×15 dot matrix, 3-step brightness adjustment |
| Clock / Timer | 12-hour clock with stopwatch, timer and alarm (4-mode clock function) |
| Remote | Contoured hand-grip wired remote control |
| MD spec | Frequency response 20 Hz–20 kHz (±1 dB), S/N 93 dB (1 kHz), dynamic range 90 dB, separation 85 dB |
| Power supply | DC 14.4V (operating range 11–16V), max current draw 10A |
| Form factor | Single DIN (1-DIN) — 178 × 50 × 160 mm / approx. 1.5 kg |
