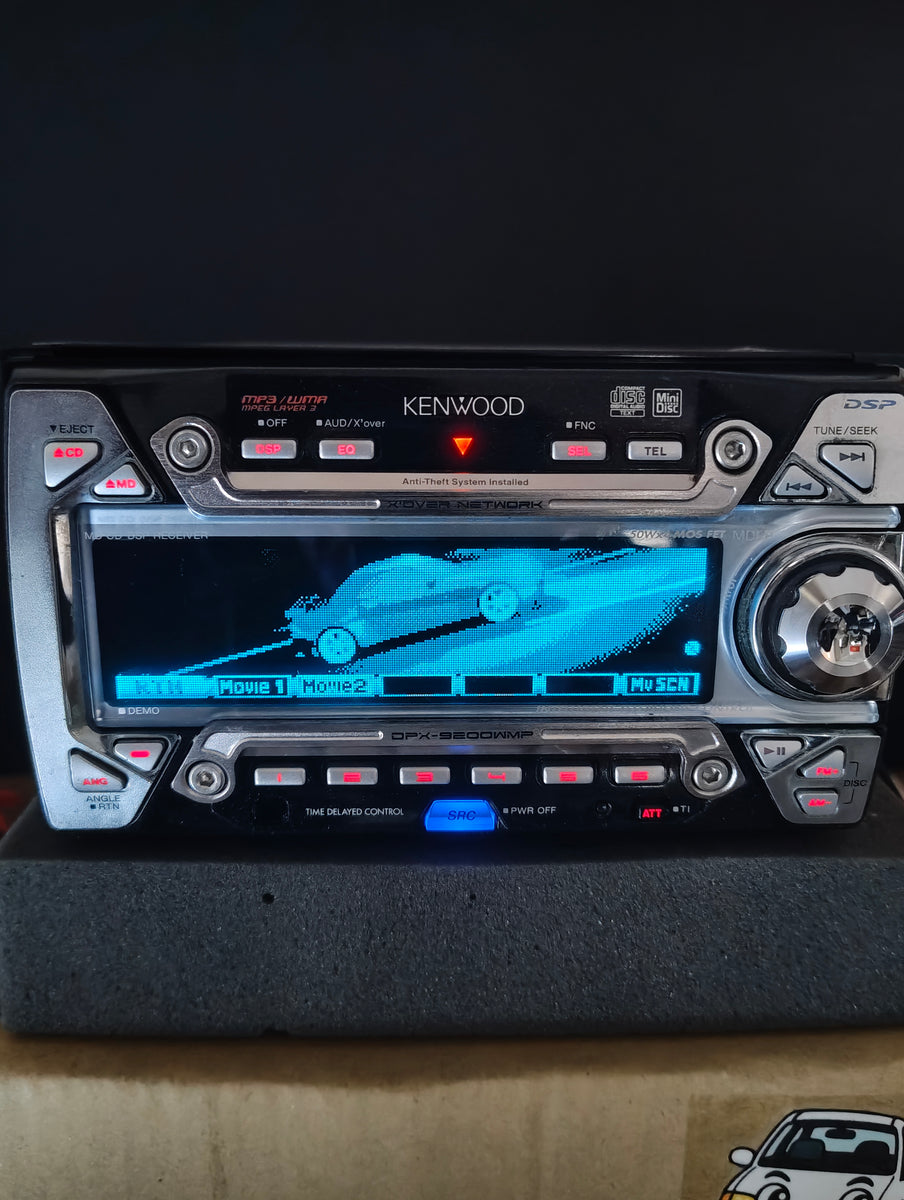

Kenwood DPX-9200WMP
MP3/WMA対応 デュアルサイズCD/MDレシーバー: The DPX-9200WMP is the senior half of a pair, and the gap between it and the DPX-8200WMP is exactly where the interest sits. Both read MP3 and WMA off burned discs, both play MiniDisc with MDLP, but this one gets 20-bit converters instead of 18-bit and a nine band equaliser instead of seven, which is the difference between shaping a system and nudging it. The CD transport is the headline number: 105 dB signal to noise off a double speed constant linear velocity mechanism, with 95 dB of dynamic range behind it. There is a real AUX input, 1.8V pre-outs for external amplification, and you can even add a credit card remote to control it. If you want one deck in this drop that will read essentially anything you put in front of it and still hand you the tools to tune it afterwards, this is that deck.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
CD has not been tested.
MD has not been tested.
Harness Included.
| DPX-9200WMP KEY FEATURES | |
|---|---|
| Media | CD and CD-R/RW with MP3 (MPEG-1/2/2.5 Audio Layer-3) and WMA (Windows Media Audio) decoding, plus MiniDisc with MDLP |
| Tuner | FM/AM. FM 76.0–90.0 MHz (Japan domestic band, 100 kHz steps), AM 522–1,629 kHz (9 kHz steps). FM usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 75 dB mono, selectivity 80 dB or better, stereo separation 40 dB (1 kHz). AM sensitivity 28 dBu |
| Power | 50W x 4 max output, 30W x 4 rated (4 ohm, 1 kHz, 10% THD), pre-out 1.8V into 10 kohm, 600 ohm or less output impedance |
| DSP and EQ | Third order delta sigma 20-bit converters at 128 times oversampling, against 18-bit on the DPX-8200WMP. Nine band EQ at 60, 120, 250, 500 Hz, 1, 2, 4, 8 and 16 kHz, plus or minus 12 dB in 6 steps, where the 8200WMP gets seven bands |
| CD spec | GaAlAs laser diode, 1-bit D/A with 8x oversampling, 400 to 1,000 rpm CLV at double speed, 10 Hz–20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 105 dB, dynamic range 95 dB, separation 85 dB, wow and flutter below measurable limits |
| MD spec | GaAlAs laser diode, 1-bit D/A with 8x oversampling, 400 to 900 rpm CLV, 20 Hz–20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 90 dB, dynamic range 90 dB, separation 85 dB, wow and flutter below measurable limits |
| AUX input | 20 Hz–20 kHz (plus or minus 1 dB), 1.5V maximum input, 68 kohm or greater input impedance |
| Remote support | Supports a credit card wireless remote (CR2025 cell) |
| Electrical | 14.4V nominal (11 to 16V operating), 10A maximum draw |
| Form factor | Double DIN (2-DIN), 178 x 100 x 155 mm, approx. 2.8 kg |
