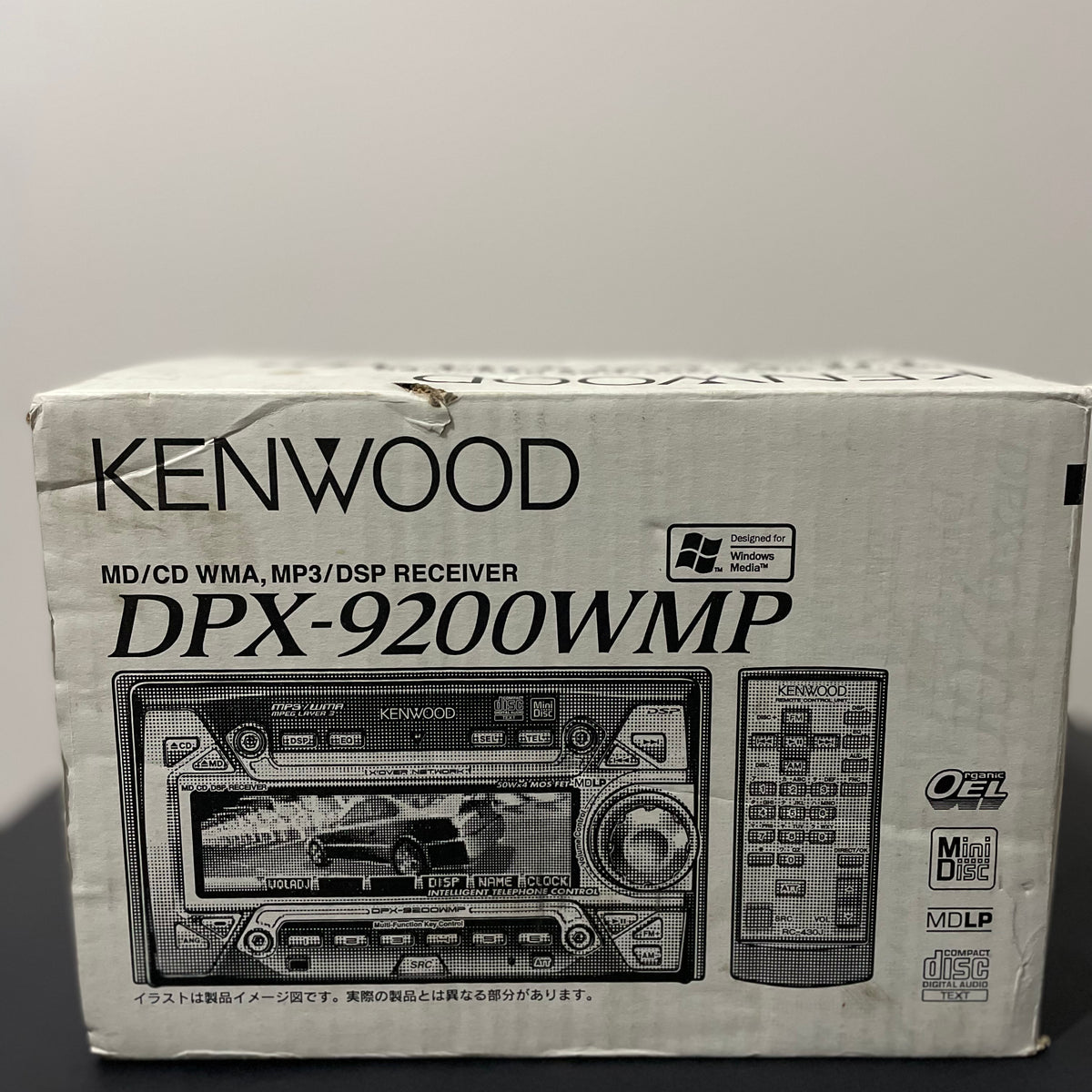

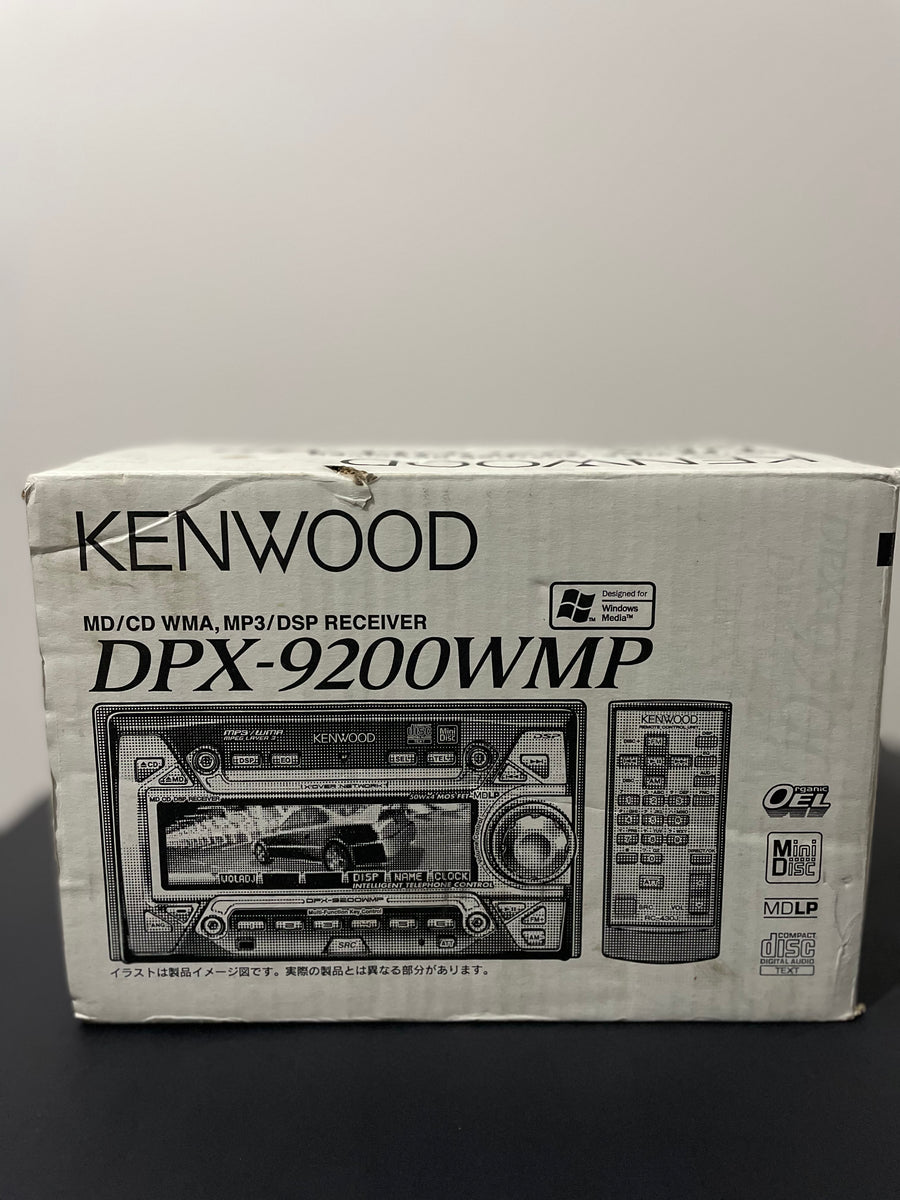

Kenwood DPX-9200WMP
WMA/MP3対応 MD/CDレシーバー — The Kenwood DPX-9200WMP is a double-DIN MD/CD receiver built for the MP3 era — on top of MD and CD playback, it decodes WMA and MP3 straight off CD-R/RW discs, with Japanese-character ID3 and WMA-Tag display so your burnt discs show proper title/artist/album info instead of garbled text. The 16-grayscale, 256×64 full-dot OEL display runs animated graphics, wallpapers and spectrum analysers, and Kenwood's "Net Display Selector" lets you download and burn your own custom display images. Underneath is a genuinely full-spec DSP — 11-pattern SFC hall simulation, time-delayed front/rear output, listening-position correction, dynamic compression, and a digital crossover network with independent front/rear high-pass filters and a non-fader subwoofer output. A 50W×4 MOSFET amp, 9-band graphic EQ, MDLP and MD group management round out a seriously well-equipped deck.
Bluetooth has been added, and tested.
Amplifier has been tested successfully.
CD has been tested successfully.
MD has not been tested.
Harness Included.
| DPX-9200WMP — KEY FEATURES | |
|---|---|
| Media | MiniDisc (MDLP) + CD / CD-R/RW with WMA & MP3 playback (Japanese ID3/WMA-Tag display) — dual-size MD/CD receiver |
| Tuner | FM/AM — FM 76.0–90.0 MHz (100 kHz steps), AM 522–1,629 kHz (9 kHz steps, 28dBμV sensitivity) |
| Power | 50W × 4 max output / 30W × 4 continuous (4 Ω, 1 kHz, 10% THD), 1800mV pre-out (FM/10 kΩ) |
| Display | 16-grayscale 256×64 full-dot OEL — 2 animations, 5 wallpapers, 5 spectrum analyser patterns, downloadable "Net Display Selector" graphics |
| DSP | Full-spec DSP — 11-pattern SFC, Time Delayed Control, Position Control, Compression, 9-band graphic EQ (60 Hz–16 kHz, ±12 dB) |
| Crossover | Digital X'Over Network — independent front/rear HPF cutoff & slope, non-fader LPF for subwoofer |
| Disc spec | MD — 20 Hz–20 kHz (±1 dB), S/N 90 dB, separation 85 dB | CD — 10 Hz–20 kHz (±1 dB), S/N 105 dB, separation 85 dB, MP3 (MPEG-1/2/2.5 Layer3) & WMA decoding |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 155 mm / approx. 2.8 kg |
