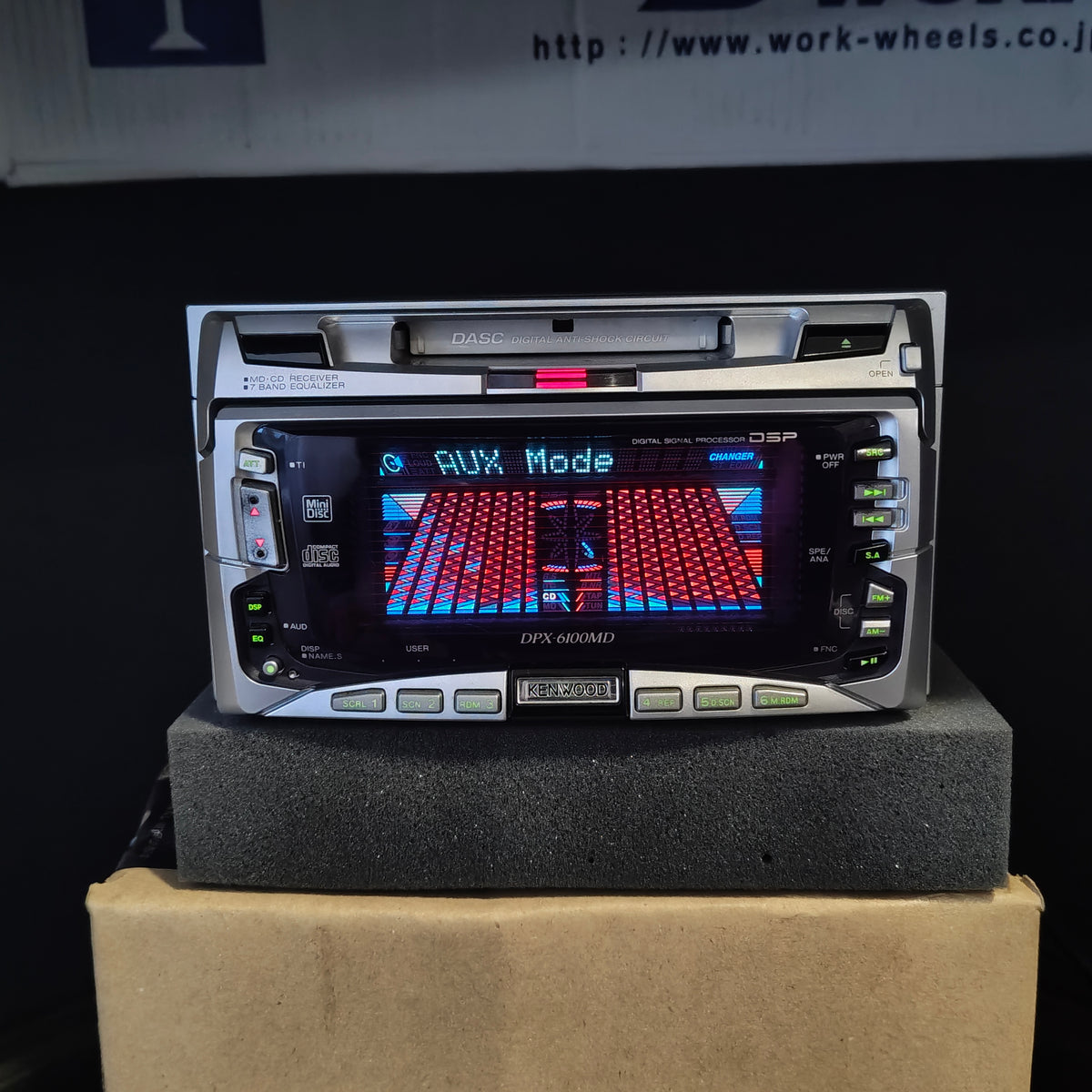

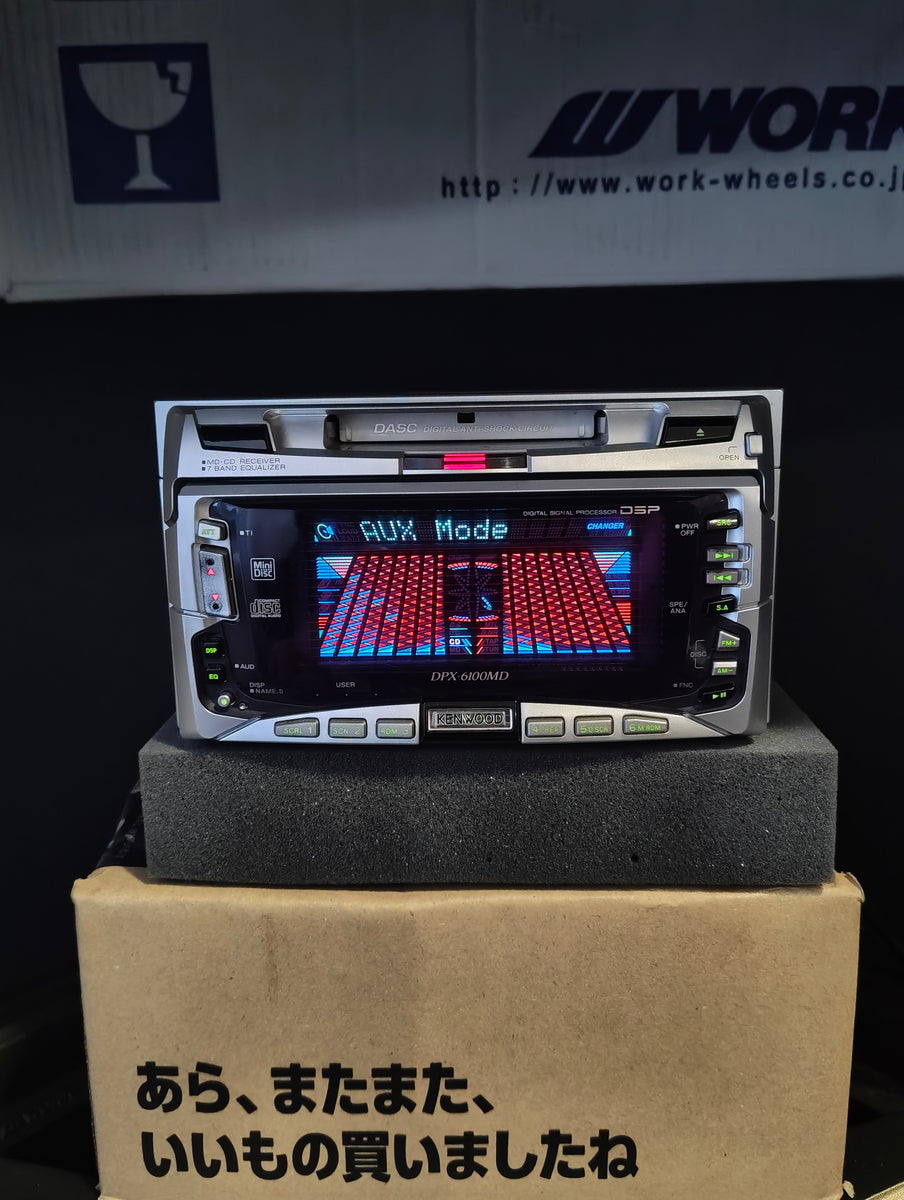

Kenwood DPX-6100МD
デュアルサイズ MD/CD レシーバー — The Kenwood DPX-6100MD is a double-DIN head unit from the year 2000 flexing that it can play both MiniDisc and CD in the same slot-loading deck. Japanese domestic spec. This is the machine that was in Crowns, Chasers and Cedrics while the rest of the world was still figuring out MP3s.
Bluetooth is included, and tested.
CD has been tested successfully.
MD is not operational.
Harness Included.
| DPX-6100MD — KEY FEATURES | |
|---|---|
| Media | MiniDisc (MD) + CD / CD-R — both formats |
| Tuner | FM/AM — Japan domestic spec (FM 76.0–90.0 MHz) |
| Power | 47W × 4 max output / 29W × 4 rated (4 Ω, 10% THD) |
| Preout | 1500 mV / 10 kΩ — compatible with external amplifiers |
| DSP | 6 sound fields — Stadium, Concert Hall, Club Disco, Church, Listening, Bypass |
| Equalizer | 7-band (60 / 160 / 400 / 1k / 2k / 6k / 16 kHz) ±12 dB — 3× user memory + 5 genre presets |
| Display | 9-mode spectrum analyser — Radar, Falling Star, Music Scope, Rolling Bar, and more |
| Disc naming | DNPS: name up to 10 CDs. SNPS: name up to 30 radio stations |
| Changer ctrl | External CD/MD changer compatible via KCA-S210A switching unit |
| Panel angle | 4-position adjustable tilt |
| Security | 4-digit PIN anti-theft code lock |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 155 mm / 2.9 kg |
A note on this item
This is a vintage head unit. Every deck is tested by us before listing, but as a used product we're unable to offer a warranty. If it arrives damaged in transit and has developed a fault we are here to help ASAP, please get in touch — we'll do everything we can to sort it out for you. We just ask that you please be mindful of the product's age. Harness is not included unless otherwise specified in the listing.
