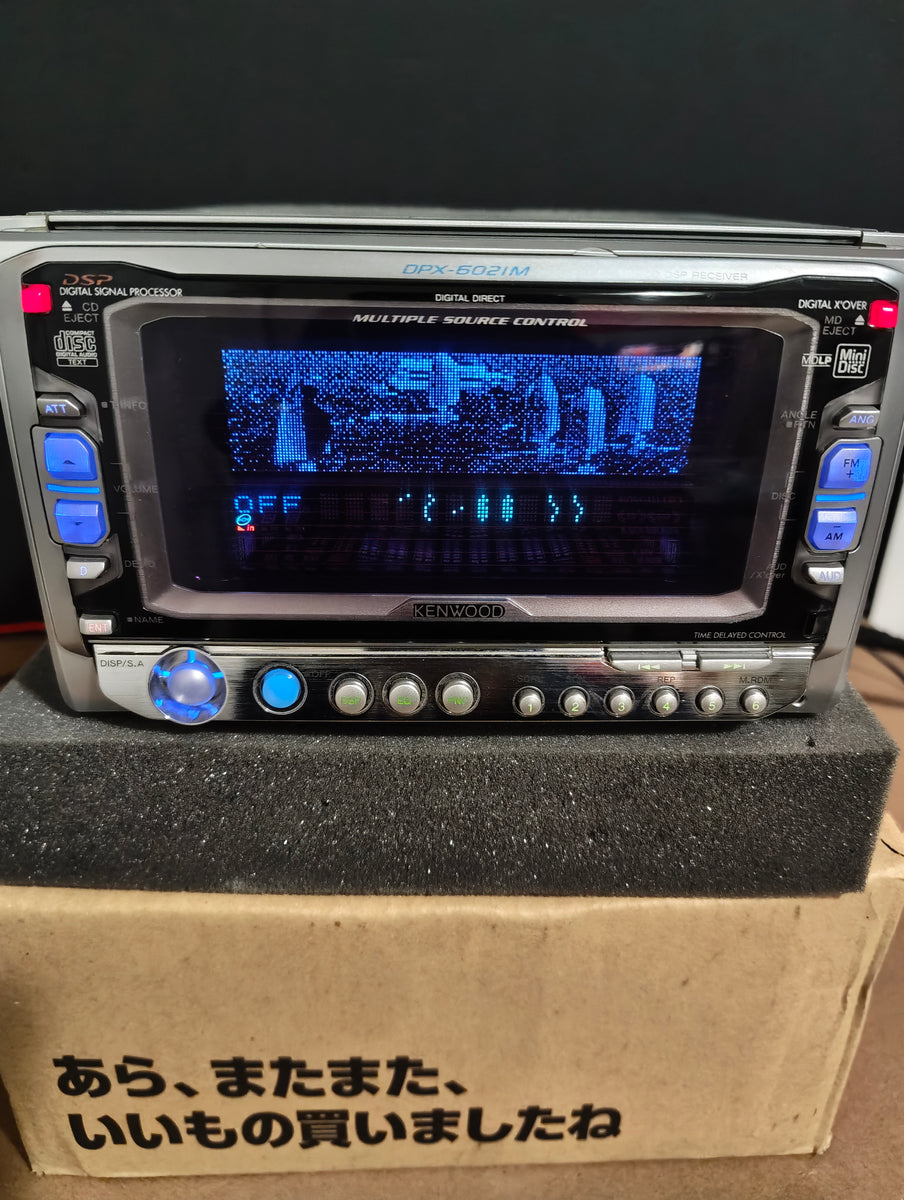

Kenwood DPX-6021M
CD/MDレシーバー — The DPX-6021M is the sensible middle child of Kenwood's DPX-9021MPi / 8021Mi / 6021M generation: same twin-slot 2-DIN chassis, same converter section, minus the 9021's MP3 decoder. What it keeps is the part that matters — third-order ΔΣ 20-bit converters running 128× oversampling, feeding a 9-band equaliser that spans 60 Hz to 16 kHz at ±12 dB. The MD deck is the star here and posts better numbers than the CD side does: 0.005% THD, 93 dB S/N, 85 dB separation. 47W × 4 on tap, 1.5V pre-outs for when that stops being enough, and the wireless remote is still in the box. If you actually run MiniDisc, this is the deck that respects it.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
CD has been tested is not working
MD has been tested and is not working.
Note: You will not have any problem using this unit for Bluetooth regardless of CD / MD fault.
Harness Included.
| DPX-6021M — KEY FEATURES | |
|---|---|
| Media | MiniDisc + CD — twin-slot 2-DIN receiver (no MP3 decoding; that was the 9021MPi's party trick) |
| Tuner | FM/AM — FM 76.0–90.0 MHz (Japan domestic band, 100 kHz steps), AM 522–1,629 kHz (9 kHz steps). FM usable sensitivity 9.3 dBf (0.8 µV/75 Ω), S/N 80 dB (mono), selectivity ≥80 dB (±400 kHz), stereo separation 40 dB (1 kHz) |
| Power | 47W × 4 max output / 29W × 4 rated (4 Ω, 1 kHz, 10% THD), 1.5V/10 kΩ pre-out (≤600 Ω output impedance) |
| DSP / EQ | Third-order ΔΣ 20-bit A/D and D/A converters, 128× oversampling. 9-band EQ at 60/120/250/500/1k/2k/4k/8k/16k Hz, ±12 dB in ±6 steps |
| MD spec | GaAlAs double-hetero laser diode (λ=780 nm), 400–900 rpm CLV, 20 Hz–20 kHz (±1 dB), THD 0.005% (1 kHz), S/N 93 dB, dynamic range 93 dB, separation 85 dB, wow & flutter below measurable limits |
| CD spec | GaAlAs double-hetero laser diode (λ=780 nm), 500–200 rpm CLV, 10 Hz–20 kHz (±1 dB), THD 0.01% (1 kHz), S/N 95 dB, dynamic range 93 dB, separation 88 dB, wow & flutter below measurable limits |
| Remote | Uses Wireless IR remote (AAA cells) |
| Electrical | 14.4V nominal (11–16V operating), 10A maximum current draw |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 155 mm / approx. 3.3 kg |
