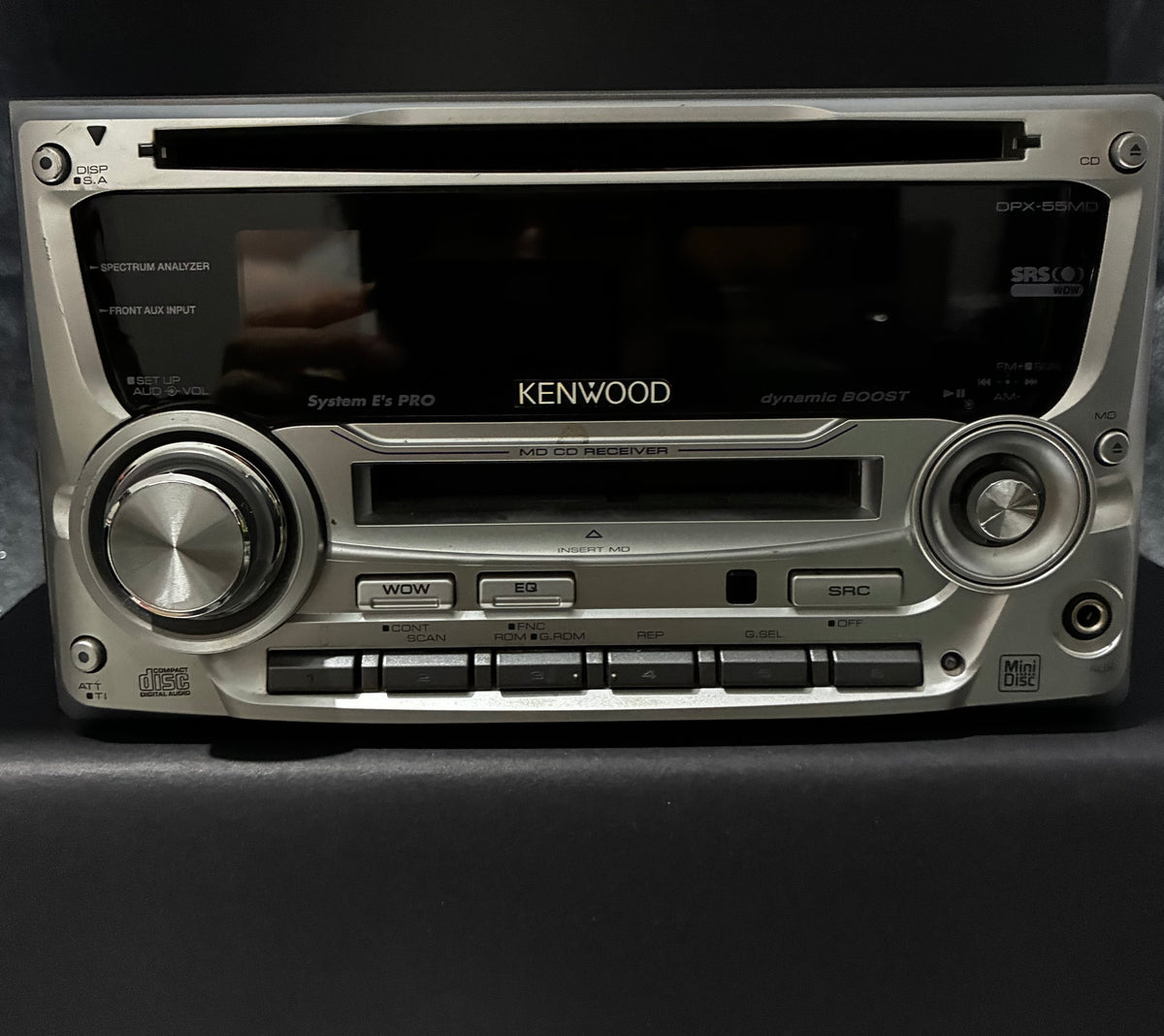

Kenwood DPX-55MD
デュアルサイズCD/MDレシーバー: The DPX-55MD is the straightforward one in its family, and that is the appeal. Kenwood shipped three decks off this chassis: the DPX-44 with a cassette deck, the DPX-66MD with MP3, WMA and AAC decoding, and this one sitting in the middle doing CD and MiniDisc with nothing bolted on top. What it does have is a CD transport quoting 105 dB signal to noise and 0.008% distortion, which is better than plenty of decks wearing far more badges, plus a three band tone control with a proper midrange point at 1 kHz rather than the usual bass and treble only. There is an AUX input on board for a phone or a Bluetooth module. At 1.9 kg it is also the lightest 2-DIN in the drop by a clear margin. No pre-outs on this model, so plan on running it off the internal 50W x 4.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
CD has been tested and is working :P
MD has been tested and is working :P
Harness Included.
| DPX-55MD KEY FEATURES | |
|---|---|
| Media | CD and MiniDisc. No MP3, WMA or AAC decoding, that was the DPX-66MD in the same chassis |
| Tuner | FM/AM. FM 76.0–90.0 MHz (Japan domestic band, 100 kHz steps), AM 522–1,629 kHz (9 kHz steps). FM usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 75 dB mono, selectivity 80 dB or better, stereo separation 30 dB (1 kHz). AM sensitivity 28 dBu |
| Power | 50W x 4 max output, 30W x 4 rated (4 ohm, 1 kHz, 10% THD or less), 4 to 8 ohm speakers. No pre-outs on this model |
| Tone control | Three bands: bass 100 Hz, middle 1 kHz and treble 10 kHz, each plus or minus 8 dB |
| CD spec | GaAlAs laser diode, 1-bit D/A with 8x oversampling, 500 to 200 rpm CLV, 10 Hz–20 kHz (plus or minus 1 dB), THD 0.008% (1 kHz), S/N 105 dB, dynamic range 93 dB, wow and flutter below measurable limits |
| MD spec | GaAlAs laser diode, 1-bit D/A with 8x oversampling, 900 to 400 rpm, 20 Hz–20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 90 dB, dynamic range 90 dB, wow and flutter below measurable limits |
| AUX input | 20 Hz–20 kHz (plus or minus 1 dB), 1,200 mV maximum input, 100 kohm input impedance |
| Electrical | 14.4V nominal (11 to 16V operating), 10A maximum draw |
| Form factor | Double DIN (2-DIN), 178 x 100 x 155 mm, approx. 1.9 kg |
