SOLD
Head Units

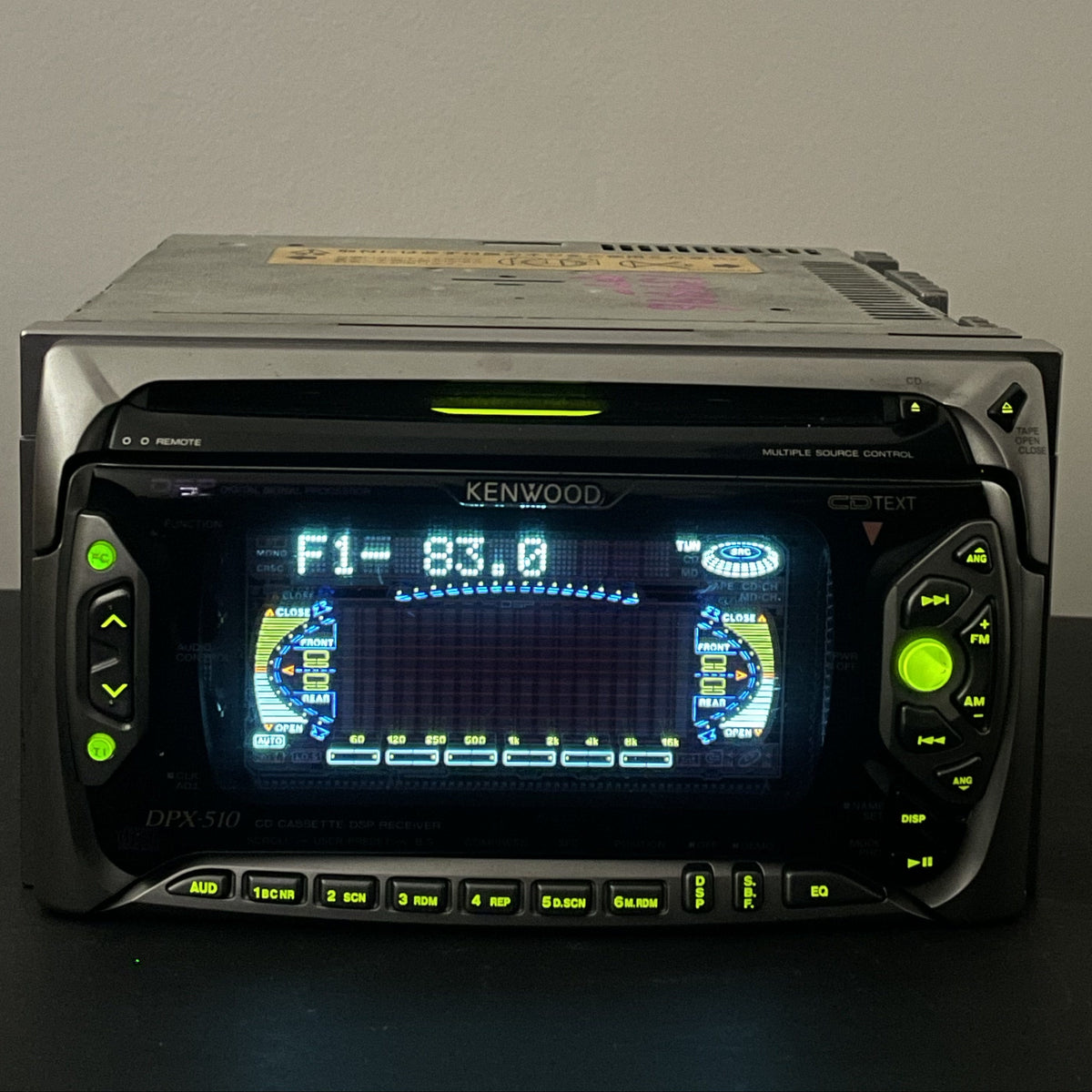

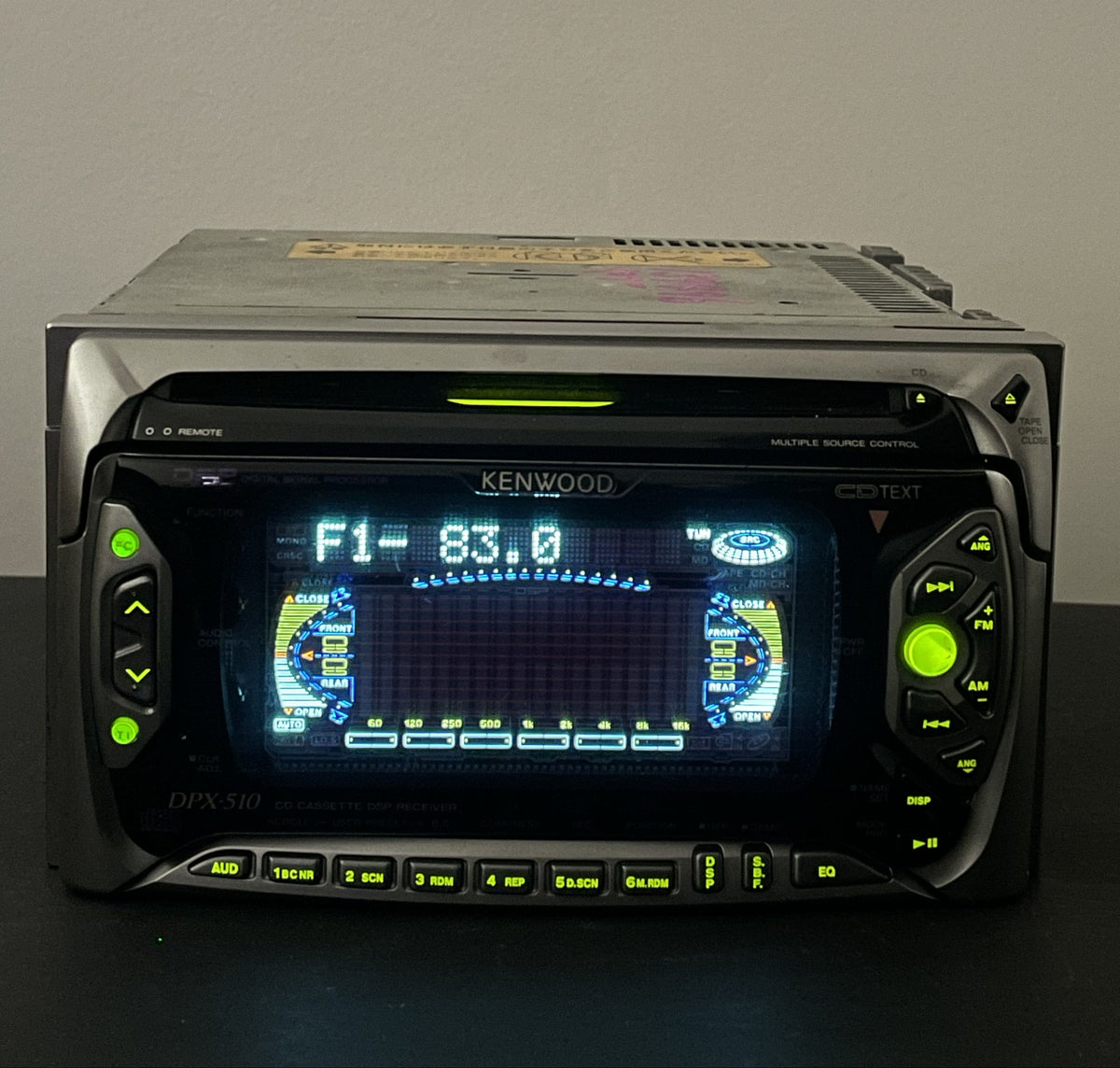

Kenwood DPX-510
UNIT IS SOLD FIND ANOTHER IN THE SHOP →デュアルサイズ カセット/CD DSPレシーバー — The Kenwood DPX-510 is a dual-size (DPX) cassette/CD receiver with a properly specced onboard DSP — a 9-band parametric EQ running through an "enhanced dual-bit" 20-bit D/A converter with 128x oversampling, giving it noticeably cleaner output than most tape-era decks. The CD section runs a 1-bit DAC behind a GaAlAs laser pickup for low noise and distortion, while the cassette deck supports Dolby B and C noise reduction for genuinely listenable tape playback. A 40W×4 amp and clean 800mV pre-out round it out — a tidy, do-it-all dual-size deck.
Amplifier has been tested successfully.
Harness Included.
| DPX-510 — KEY FEATURES | |
|---|---|
| Media | Cassette deck (Dolby B/C NR) + CD / CD-R/RW — dual-size cassette/CD receiver |
| Tuner | FM/AM — FM 76.0–90.0 MHz (100 kHz steps), AM 522–1,629 kHz (9 kHz steps) |
| Power | 40W × 4 max output / 25W × 4 continuous (4 Ω, 1 kHz, 1% THD), 800mV pre-out (10 kΩ, ≤600 Ω impedance) |
| DSP / EQ | 9-band parametric EQ (60 Hz–16 kHz, ±8 dB), enhanced dual-bit 20-bit D/A converters (64x/128x oversampling) |
| CD section | 1-bit D/A converter, GaAlAs laser pickup, 8x oversampling digital filter, 93 dB S/N, 93 dB dynamic range |
| Cassette spec | Tape speed 4.76 cm/s, wow & flutter 0.08% (WRMS), frequency response 25 Hz–22 kHz, S/N 60 dB (NR off) / 68 dB (Dolby B) / 74 dB (Dolby C) |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 155 mm / approx. 2.9 kg |
A note on this item
This is a vintage head unit. Every deck is tested by us before listing, but as a used product we're unable to offer a warranty. If it arrives damaged in transit and has developed a fault we are here to help ASAP, so please get in touch and we'll do everything we can to sort it out for you. We just ask that you please be mindful of the product's age. Harness is not included unless otherwise specified in the listing. Professional installation required. We can't be responsible for faults caused by incorrect installs.
How We Prep Your Deck →
SOLD OUT — Kiai na!
