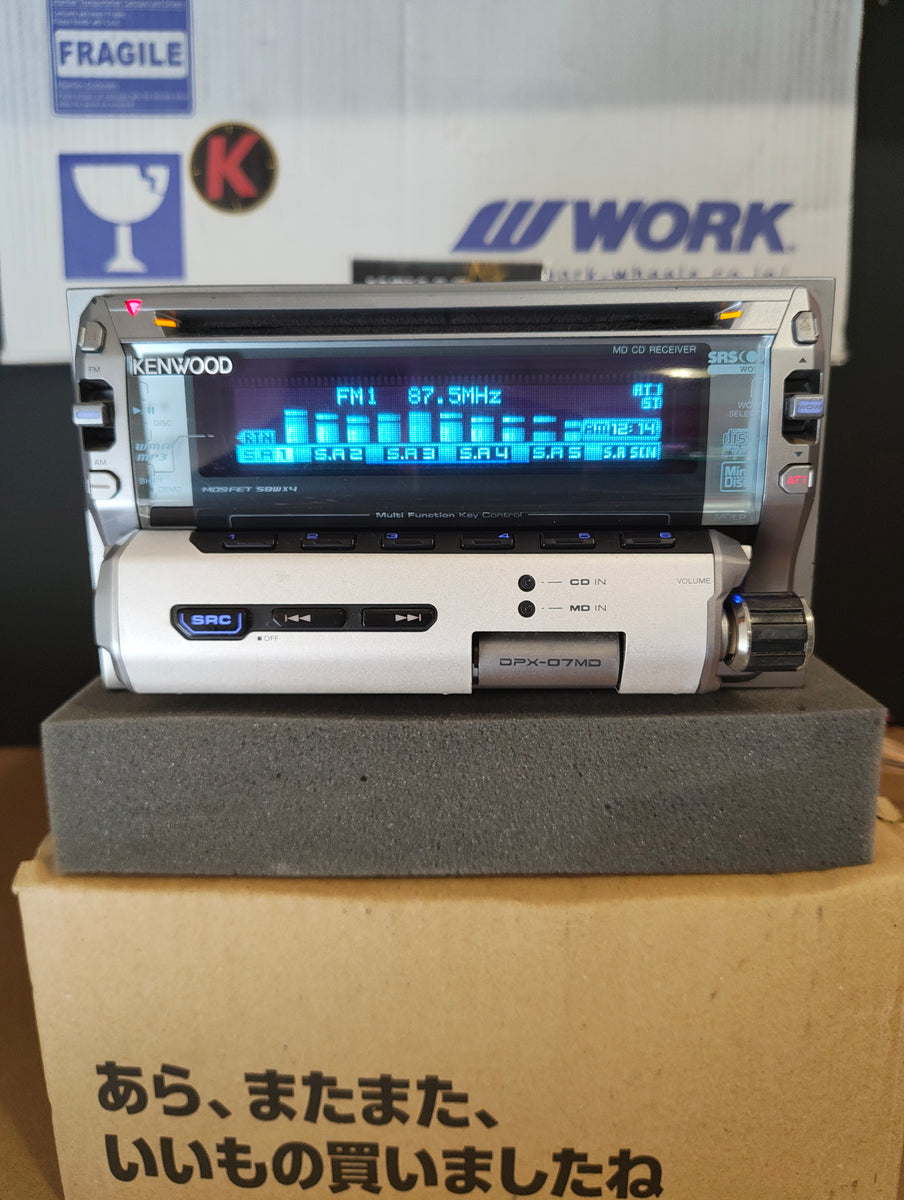

Kenwood DPX-07MD
MP3/WMA対応 CD/MDレシーバー — By the time the DPX-07MD landed, Kenwood had stopped pretending burned discs were a fad: the CD side reads MP3 and WMA off CD-R/RW, so a single disc holds a weekend's worth of music, while the MD slot underneath keeps the MiniDisc collection in play. The CD transport is the headline — 1-bit D/A with 8× oversampling, double-speed CLV, and a quoted 104 dB signal-to-noise ratio that's frankly absurd for a car deck (for the time at least). There's a proper AUX input on board (1.2V max, 100 kΩ), 50W × 4 of amplification, 1.8V pre-outs, and the remote is included. Late-era JDM 2-DIN done properly.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
CD has been tested and is not working
MD has been tested and is not working :(
Harness Included.
| DPX-07MD — KEY FEATURES | |
|---|---|
| Media | CD / CD-R/RW with MP3 (MPEG-1/2 Audio Layer-3) and WMA (Windows Media™ Audio) playback + MiniDisc, plus AUX input |
| Tuner | FM/AM — FM 76.0–90.0 MHz (Japan domestic band, 100 kHz steps), AM 522–1,629 kHz (9 kHz steps). FM usable sensitivity 9.3 dBf (0.8 µV/75 Ω), S/N 75 dB (mono), selectivity ≥80 dB (±400 kHz), stereo separation 30 dB (1 kHz) |
| Power | 50W × 4 max output / 30W × 4 rated (4 Ω, 1 kHz, 10% THD), 1.8V/10 kΩ pre-out (≤600 Ω output impedance) |
| CD spec | GaAlAs laser diode, 1-bit D/A with 8× digital filter oversampling, 1,000–400 rpm CLV (double-speed), 10 Hz–20 kHz (±1 dB), THD 0.01% (1 kHz), S/N 104 dB, dynamic range 93 dB, separation 85 dB, wow & flutter below measurable limits |
| MD spec | GaAlAs laser diode, 1-bit D/A with 8× digital filter oversampling, 450–950 rpm CLV, 20 Hz–20 kHz (±1 dB), THD 0.01% (1 kHz), S/N 90 dB, dynamic range 90 dB, separation 80 dB, wow & flutter below measurable limits |
| AUX input | 20 Hz–20 kHz (±1 dB), 1.2V maximum input, 100 kΩ input impedance |
| Remote | Wireless IR remote included (AA cells) |
| Electrical | 14.4V nominal (11–16V operating), 10A maximum current draw |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 155 mm / approx. 2.2 kg |
