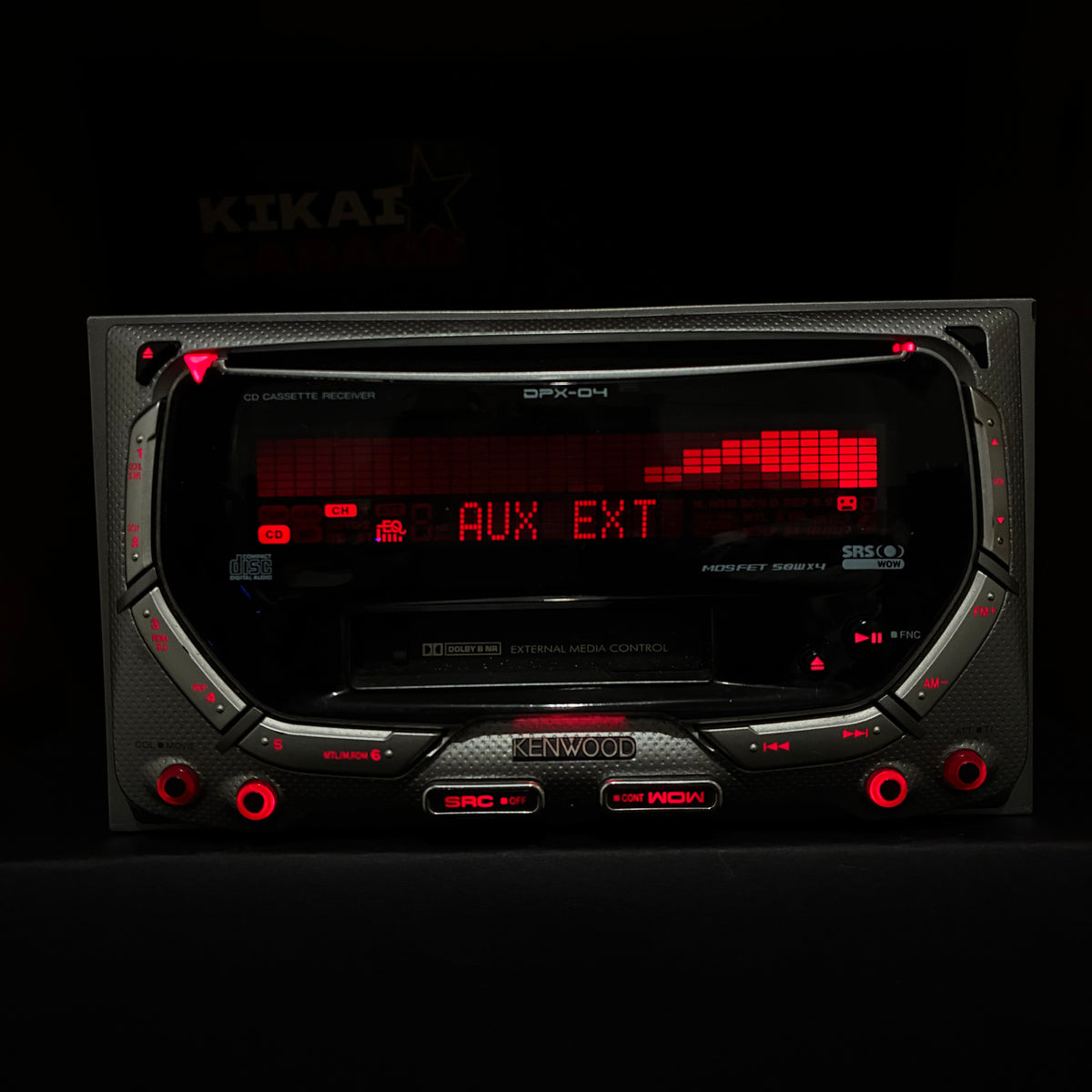

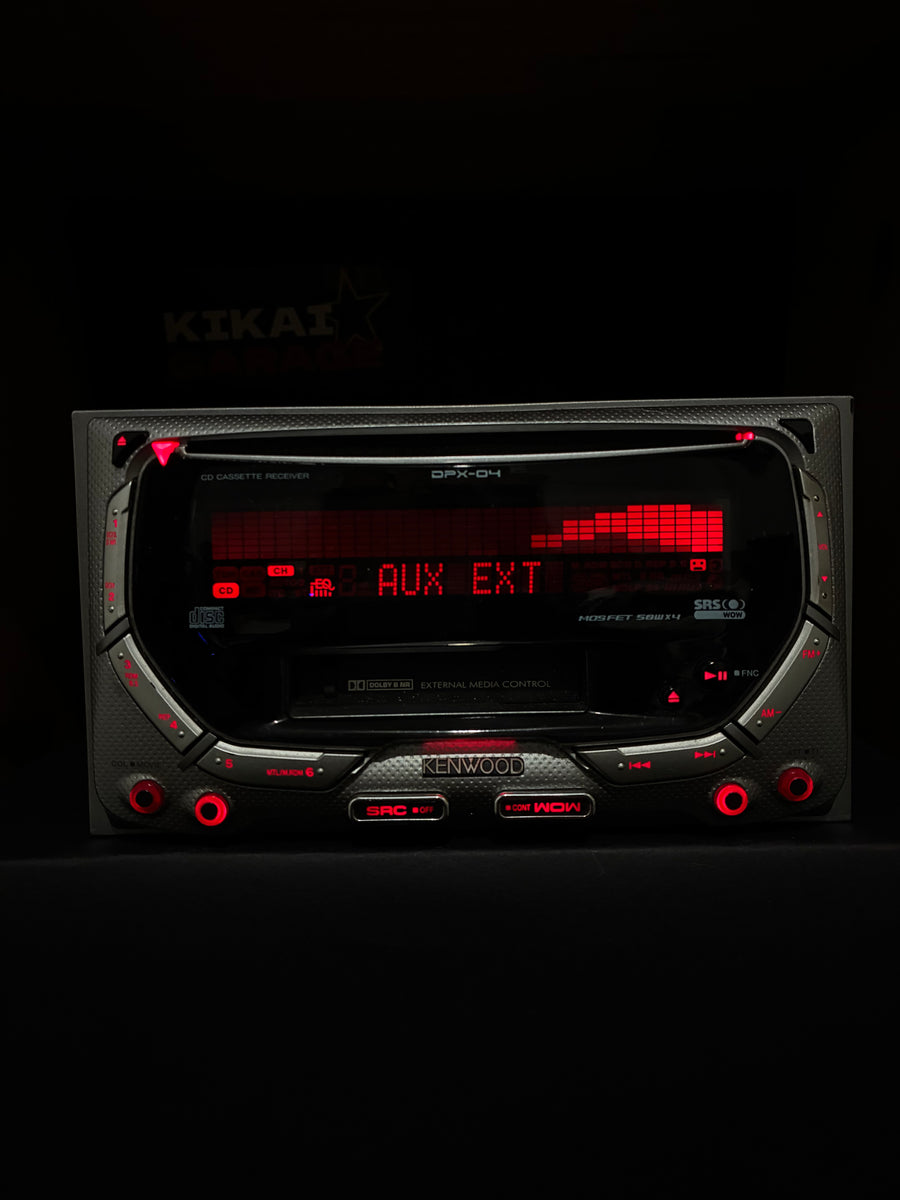

Kenwood DPX-04
デュアルサイズ カセット/CDレシーバー — The Kenwood DPX-04 is a dual-size cassette/CD receiver from the era before MiniDisc took over the dash — built for the huge installed base of tape collections that weren't going anywhere. A 1-bit D/A converter and GaAlAs laser pickup handle CD duties with genuinely solid numbers for the class, while the cassette deck runs Dolby B noise reduction to keep your mixtapes sounding the way they should. Backed by a 50W×4 amp that's punchy for a dual-size deck of this vintage, it's the kind of unit that just gets on with the job CD when you want it, tape when that's what you've got.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
CD has been tested and is working.
Cassette has been tested and is working.
Harness Included.
| DPX-04 — KEY FEATURES | |
|---|---|
| Media | CD / CD-R / CD-RW playback + Cassette deck with Dolby B NR — dual-size cassette/CD receiver |
| Tuner | FM/AM — FM 76.0–90.0 MHz (Japan domestic band, 100 kHz steps), AM 522–1,629 kHz (9 kHz steps) |
| Power | 50W × 4 max output / 30W × 4 continuous (4 Ω, 1 kHz, 10% THD) |
| CD section | 1-bit D/A converter, GaAlAs laser diode — 93 dB S/N ratio, 93 dB dynamic range, 85 dB stereo separation |
| Cassette section | 4.76 cm/s tape speed, 0.1% wow & flutter (WRMS), Dolby B NR — 50 dB S/N off / 60 dB on |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 155 mm / approx. 2.3 kg |
