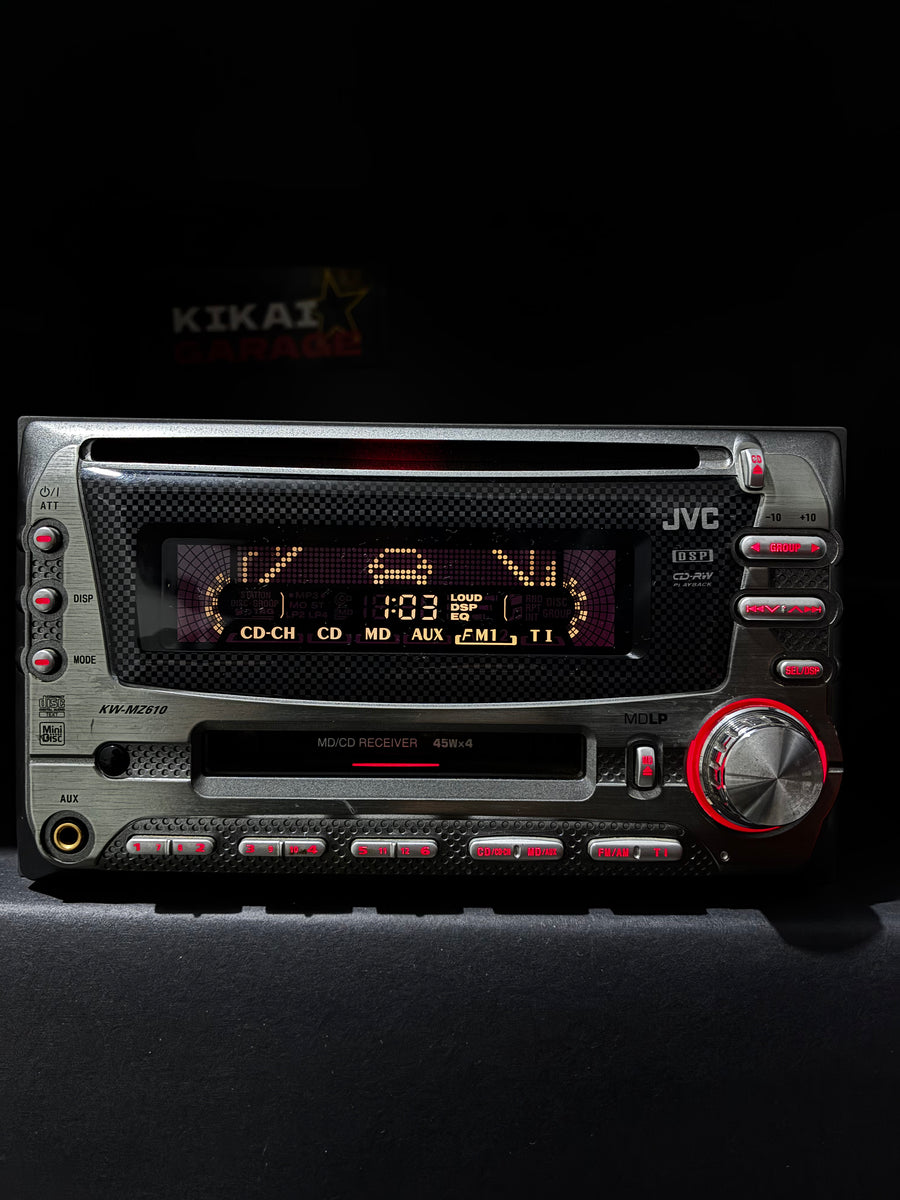

JVC KW-MZ610
CD/MDレシーバー: JVC built the KW-MZ610 in 2003 around its display, and it shows. The level meter has five different animation modes, including one that falls from the top of the screen like a shower and another that rotates, and you can switch the whole thing off if you would rather just read the track name. Underneath the theatre it is a properly specified deck: the CD section quotes 99 dB signal to noise and 98 dB dynamic range, the strongest CD transport in this drop, and the MD side handles MDLP so an 80 minute disc recorded in LP4 runs for 320 minutes. It reads MP3 discs with ID3 tag display as well. The detail worth knowing is the amp gain switch, which drops maximum output from 45W to 30W per channel so you can run smaller factory speakers without cooking them. AUX is a 3.5 mm stereo mini jack, which makes connecting a phone or a Bluetooth module about as painless as it gets on a deck this age.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
MD has been tested and is not working :(
CD has been tested and is working :)
Harness Included.
| KW-MZ610 KEY FEATURES | |
|---|---|
| Media | MiniDisc with MDLP via ATRAC3 (LP2 gives 160 min, LP4 gives 320 min from an 80 min disc) and CD, including MP3 discs with ID3 tag display |
| Tuner | FM/AM. FM 76.0–90.0 MHz (Japan domestic band), AM 522–1,629 kHz. FM usable sensitivity 14.3 dBf (1.43 uV/75 ohm), AM sensitivity 27 dBu (22.4 uV). External FM/AM antenna connector to JASO plug spec |
| Power | 45W + 45W front and 45W + 45W rear (4 ohm, 1 kHz), 4 to 8 ohm speakers. Amp gain switch drops maximum output to 30W per channel to suit lower rated speakers |
| Display | Level meter with five modes (rising from the bottom, falling from the top, spreading from the centre, rotating, and a rolling cycle of all four) plus off |
| Sound | DSP with listening position adjustment and a user equaliser with storable memory settings |
| CD spec | Compact disc digital audio, 44.1 kHz sampling, 2 channel stereo, 5 Hz–20 kHz, dynamic range 98 dB, S/N 99 dB |
| MD spec | MiniDisc digital audio, 2 channel stereo, 20 Hz–20 kHz, dynamic range 92 dB, S/N 93 dB |
| Inputs and outputs | AUX on a 3.5 mm stereo mini jack, DIN jack input, and one set of RCA pre-outs at 2.0V into 1 kohm |
| Electrical | DC 14.4V negative earth (11 to 16V usable) |
| Form factor | Double DIN (2-DIN), 178 x 100 x 169 mm overall with a 178 x 100 x 150 mm mounting depth, approx. 2.2 kg |
