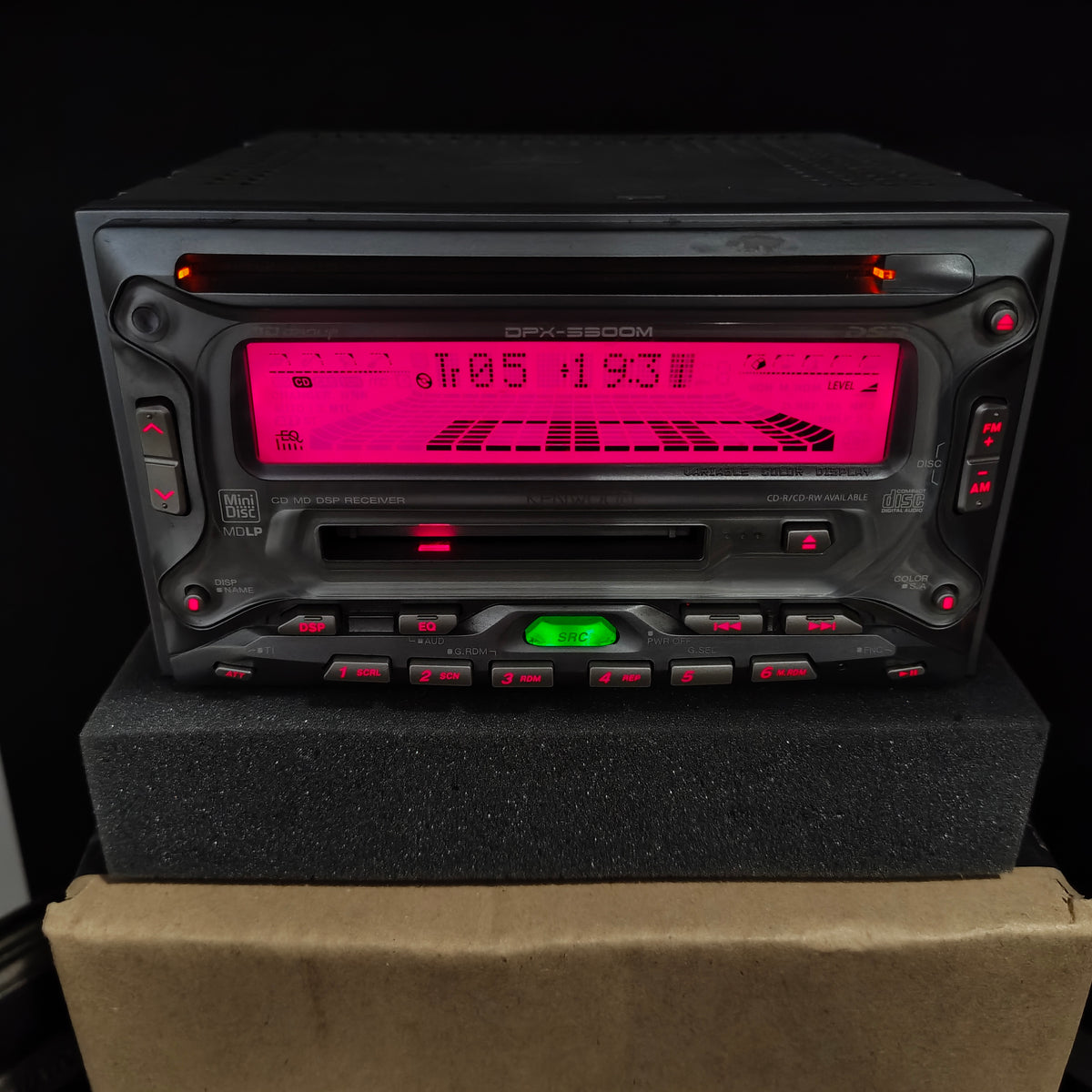

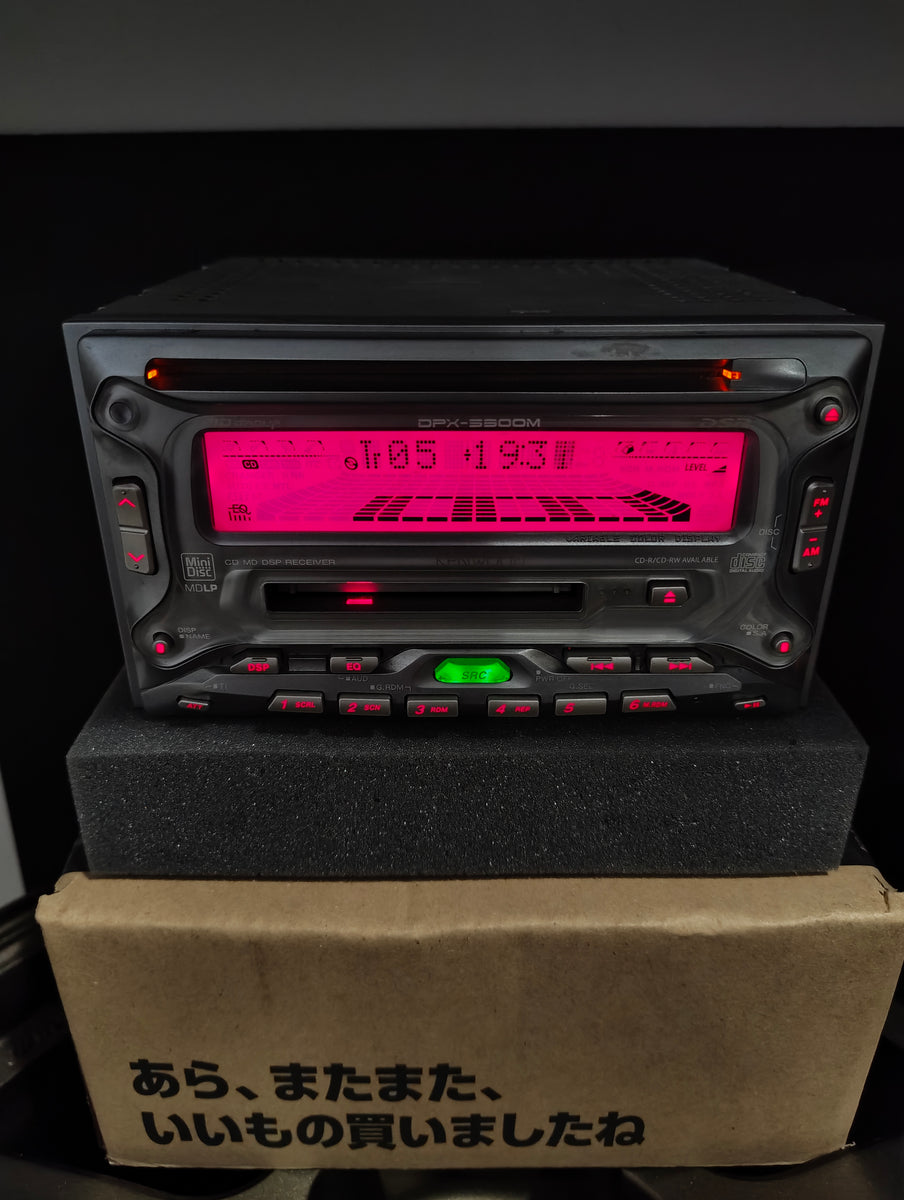

Kenwood DPX-5300M
デュアルサイズ MD/CDレシーバー — The Kenwood DPX-5300M is a 2002 double-DIN MD/CD receiver that took the dual-size formula and dressed it up for a generation raised on flip phones with changeable face plates. The headline act is the Variable Color Display — 12 selectable display colours plus a colour-scan mode that cycles through the lot, so you can match it to your interior lighting or just let it do its own thing. Under the hood it's running Kenwood's "Multi-Task LSI Type Q", a single chip handling a 3-band 13-point parametric EQ and electronic volume, paired with a 47W×4 amp that punches well above its price bracket. It's solid.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
CD has been tested successfully.
MD has not been tested.
Harness Included.
| DPX-5300M — KEY FEATURES | |
|---|---|
| Media | MiniDisc (MDLP + NetMD playback) + CD / CD-R / CD-RW with CD TEXT (via changer) — dual-size MD/CD receiver |
| Tuner | FM/AM — FM 76.0–90.0 MHz (Japan domestic band, 100 kHz steps), AM 522–1,629 kHz (9 kHz steps) |
| Power | 47W × 4 max output / 29W × 4 continuous (4 Ω, 1 kHz, 10% THD), 1.5V pre-out |
| Display | Variable Color Display — 12 selectable colours, plus a seamless colour-scan mode and custom user colour |
| Sound tech | Multi-Task LSI "Type Q" — single-chip 3-band, 13-point parametric EQ ("New dB Equalizer") with electronic volume, plus built-in EASY DSP |
| Disc tools | MD Group management with Group Select display, disc/track name input, and disc changer control |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 155 mm / approx. 2.2 kg |
