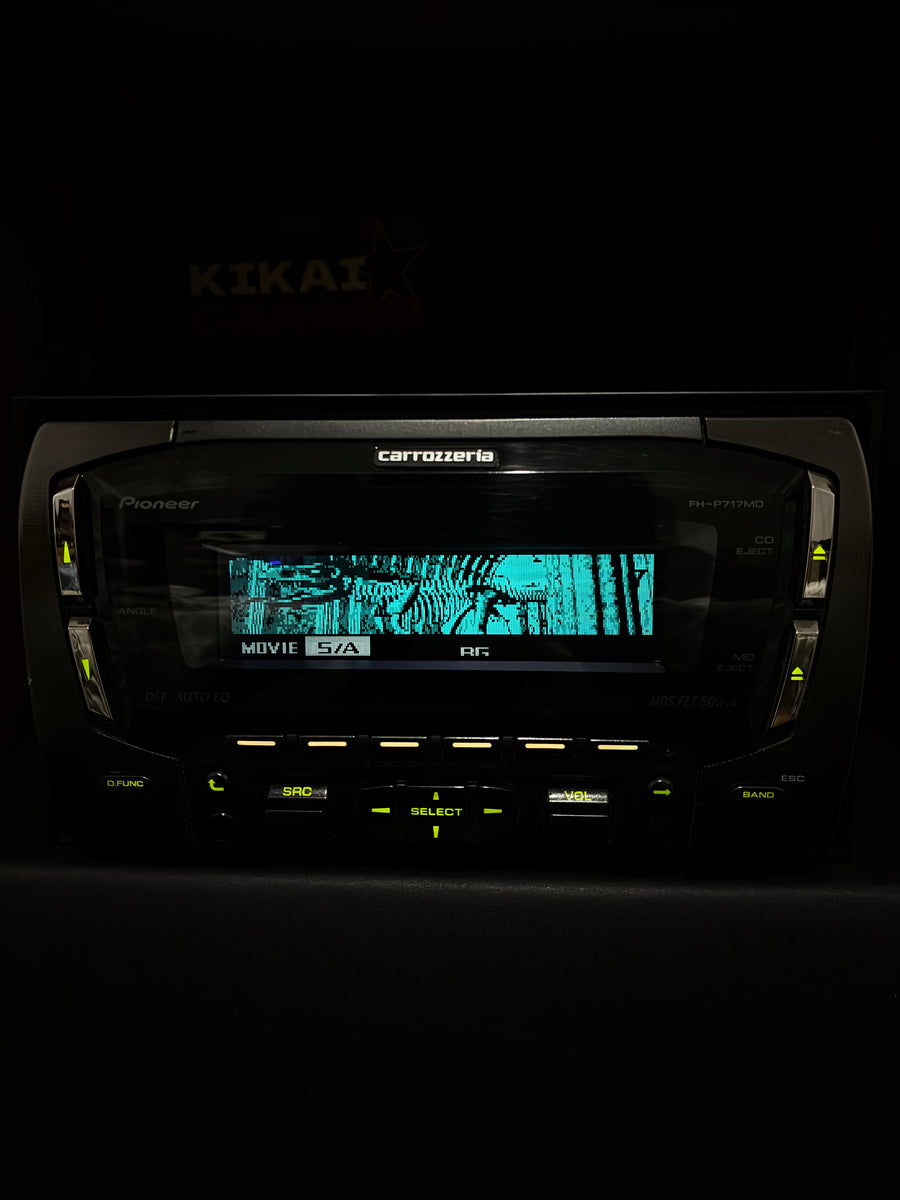

Carrozeria FH-P717MD
MD/CD/チューナー・DSPメインユニット: Pioneer's own name for the FH-P717MD puts DSP in the product category, which tells you where the money went. The centrepiece is a 13 band graphic equaliser running from 50 Hz to 12.5 kHz at plus or minus 12 dB, which is a lot of resolution for a 2002 head unit, and behind it sits a network section with independent high pass filters for front and rear at 12 dB per octave plus a dedicated subwoofer output with its own 18 dB per octave slope, level trim down to minus 24 dB and switchable phase. In other words you can time a three way system properly without adding an outboard processor. The tuner is a strong one too, 40 dB of stereo separation and 50 dB selectivity at 9 kHz spacing, which matters on a crowded Japanese FM band. You can even add a remote to control it. At 2.7 kg it is a seriously heavy deck, and it feels it.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
MD is not working :(
CD has been tested and is working :)
Harness Included.
| FH-P717MD KEY FEATURES | |
|---|---|
| Media | MiniDisc and CD. No MP3 or WMA decoding on this model |
| Tuner | FM/AM. FM 76.1–89.9 MHz (Japan domestic band), AM 522–1,629 kHz (9 kHz steps). FM usable sensitivity 9 dBf (0.8 uV/75 ohm mono), 50 dB quieting 14 dBf, S/N 70 dB IHF-A, stereo separation 40 dB, THD 0.3%. AM sensitivity 18 uV, selectivity 50 dB |
| Power | 50W x 4 max output, 22W x 4 rated (50 Hz–15 kHz, 5% THD), 4 ohm load (4 to 8 ohm usable), pre-out 2.0V into 1 kohm |
| Equaliser | 13 band graphic EQ at 50, 80, 125, 200, 315, 500, 800 Hz, 1.25, 2, 3.15, 5, 8 and 12.5 kHz, plus or minus 12 dB |
| Crossover | High pass filters set independently for front and rear at 50, 63, 80, 100 or 125 Hz with a 12 dB/oct slope. Subwoofer output at the same frequency points with an 18 dB/oct slope, level from minus 24 to plus 6 dB and normal or reverse phase |
| Loudness | Contour of 10 dB at 100 Hz and 7 dB at 10 kHz, measured at minus 30 dB volume |
| CD spec | Compact disc digital audio, 44.1 kHz sampling, 16-bit linear, 5 Hz–20 kHz (plus or minus 1 dB), S/N 94 dB (1 kHz, IHF-A), dynamic range 92 dB, 2 channel stereo |
| MD spec | MiniDisc digital audio, 44.1 kHz sampling, 16-bit linear, 20 Hz–20 kHz (plus or minus 1 dB), S/N 90 dB (1 kHz, IHF-A), dynamic range 90 dB, 2 channel stereo |
| Remote support | Supports a wireless IR remote (2 x AAA) |
| Electrical | DC 14.4V negative earth (10.8 to 15.1V usable), 10.0A maximum draw |
| Form factor | Double DIN (2-DIN), 178 x 100 x 160 mm with a 170 x 95 x 16 mm nose, approx. 2.7 kg excluding the cord unit |
