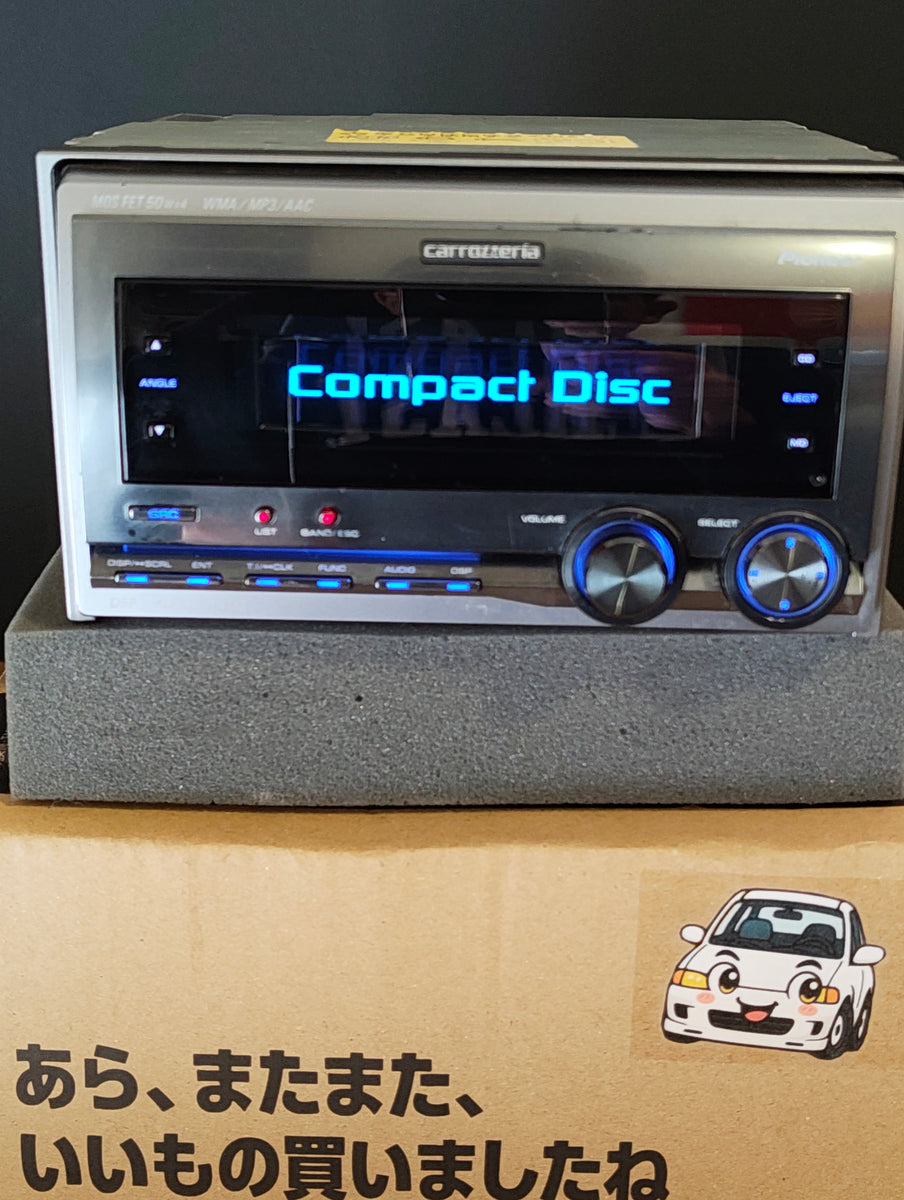

Carrozeria FH P070MD
CD·MDレシーバー — Carrozeria is what Pioneer calls itself in Japan, and the FH-P070MD is a solid example of why the brand carried weight in the domestic market. This double-DIN CD/MD receiver comes loaded: full MDLP long-play support, MP3/WMA/AAC decoding from disc, a 13-band graphic EQ, a high-pass crossover with subwoofer output control, and Pioneer's Z-Enhancer Plus DSP system covering five sound field presets plus a fully programmable custom mode. AUX input accepts three sensitivity levels to match whatever source you're connecting. JDM FM tuner, 76.0–90.0 MHz. Well-specced for its era. Honestly? The animations just go wild.
Bluetooth is included and tested :P
Amplifier has been tested successfully.
CD has been tested and is working.
MD has been tested however is not working.
Harness Included.
| CARROZERIA FH-P070MD — KEY FEATURES | |
|---|---|
| Media | CD / MiniDisc (MDLP) / MP3 / WMA / AAC / WAV / FM·AM Tuner / AUX |
| Tuner | FM 76.0–90.0 MHz (JDM band) / AM 522–1,629 kHz |
| Power | 22 W RMS × 4 ch at 4 Ω (50 W max × 4) / 5% THD / 50–15,000 Hz |
| DSP / Sound | Z-Enhancer Plus: BASS BOOST / IMPACT / EXCITE / USER CUSTOM / OFF — 5 DSP presets: STADIUM / HALL / CLUB / CHURCH / L-ROOM — 13-band graphic EQ |
| Crossover | High-pass filter: 50–200 Hz (−6 / −12 dB/oct) / Subwoofer: 50–200 Hz (−6 / −12 / −18 dB/oct) |
| AUX / Line-out | AUX: LOW / MID / HIGH sensitivity / Line-out: 2.2 V (CD 1 kHz) / 1 kΩ output impedance |
| Disc formats | MP3: MPEG-1 & 2 Layer 3 / WMA: Ver 7, 7.1, 8, 9 (2ch) / AAC: MPEG-4 (iTunes) / WAV: Linear-PCM, MS ADPCM |
| MD spec | MDLP / S/N 90 dB / Dynamic range 90 dB / Freq. 20–20,000 Hz (±1 dB) |
| Form factor | Double DIN — 178 × 100 × 184.5 mm (install depth 156.5 mm) / approx. 2.2 kg |
