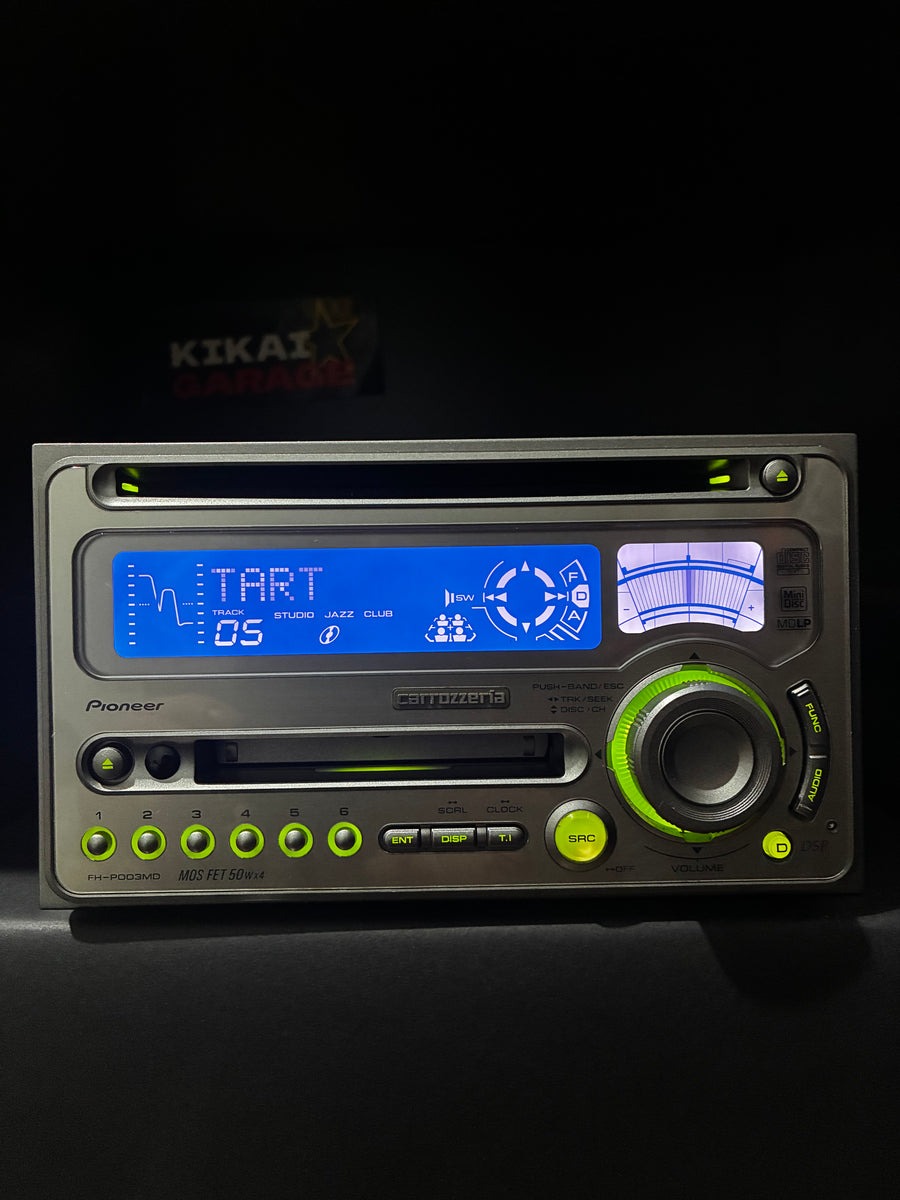

Carrozzeria (Pioneer) FH-P003MD
UNIT IS SOLD FIND ANOTHER IN THE SHOP →MD/CD/チューナー・DSPメインユニット: The FH-P003MD is where Pioneer's 2002 DSP main unit line starts, and the surprise is how little got left out. The FH-P005MD above it adds MP3 decoding and the FH-P717MD adds four more equaliser bands, but this one still carries the full processing toolkit: a 9 band graphic EQ running 50 Hz to 12.5 kHz at plus or minus 12 dB, a network high pass filter with selectable slope, and a dedicated subwoofer output with its own frequency, slope, level trim and phase invert. That is a properly tunable three way setup from the cheapest deck in the family. The MD side reads MDLP, so long play discs recorded at double or quadruple length play without complaint, and the CD side handles CD-R and CD TEXT. At 1.8 kg it is the lightest 2-DIN in the drop by a clear margin, and it still puts out 50W x 4 with 1.8V pre-outs for when that stops being enough. Entry level on the price list, not on the spec sheet.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
MD has been tested and is working successfully.
CD has been tested and is working successfully.
Harness Included.
| FH-P003MD KEY FEATURES | |
|---|---|
| Media | MiniDisc with MDLP long play support, plus CD and CD-R with CD TEXT display. No MP3 or WMA decoding, that was the FH-P005MD |
| Tuner | FM/AM. FM 76.1–89.9 MHz (Japan domestic band), AM 522–1,629 kHz (9 kHz steps). FM usable sensitivity 8 dBf (0.7 uV/75 ohm mono, S/N 30 dB), 50 dB quieting 10 dBf, S/N 75 dB IHF-A, THD 0.3% stereo and 0.1% mono, response 30–15,000 Hz (plus or minus 3 dB), stereo separation 45 dB. AM sensitivity 18 uV, S/N 65 dB |
| Power | 50W x 4 max output, 22W x 4 rated (50–15,000 Hz, 5% THD), 4 ohm load (4 to 8 ohm usable), pre-out 1.8V into 1 kohm |
| Equaliser | 9 band graphic EQ at 50, 100, 200, 400, 800 Hz, 1.6, 3.15, 6.3 and 12.5 kHz, plus or minus 12 dB |
| Crossover | Network high pass filter at 50, 63, 80, 100 or 125 Hz with a 6 or 12 dB/oct slope. Subwoofer output at the same frequency points with a 12 or 18 dB/oct slope, level from minus 24 to plus 6 dB, and normal or reverse phase |
| Loudness | Contour of 10 dB at 100 Hz and 7 dB at 10 kHz, measured at minus 30 dB volume |
| CD spec | Compact disc digital audio, 44.1 kHz sampling, 16-bit linear, 5–20,000 Hz (plus or minus 1 dB), S/N 94 dB (1 kHz, IHF-A), dynamic range 92 dB, 2 channel stereo |
| MD spec | MiniDisc digital audio, 44.1 kHz sampling, 16-bit linear, 20–20,000 Hz (plus or minus 1 dB), S/N 90 dB (1 kHz, IHF-A), dynamic range 90 dB, 2 channel stereo |
| Expansion | Multi-CD changer control for an external Pioneer changer |
| Remote support | Supports a wireless remote, so you can even add one to control it from the wheel end of the cabin |
| Electrical | DC 14.4V negative earth (10.8 to 15.1V usable), 10.0A maximum draw |
| Form factor | Double DIN (2-DIN), 178 x 100 x 160 mm with a 170 x 94 x 10 mm nose, approx. 1.8 kg excluding the cord unit |
