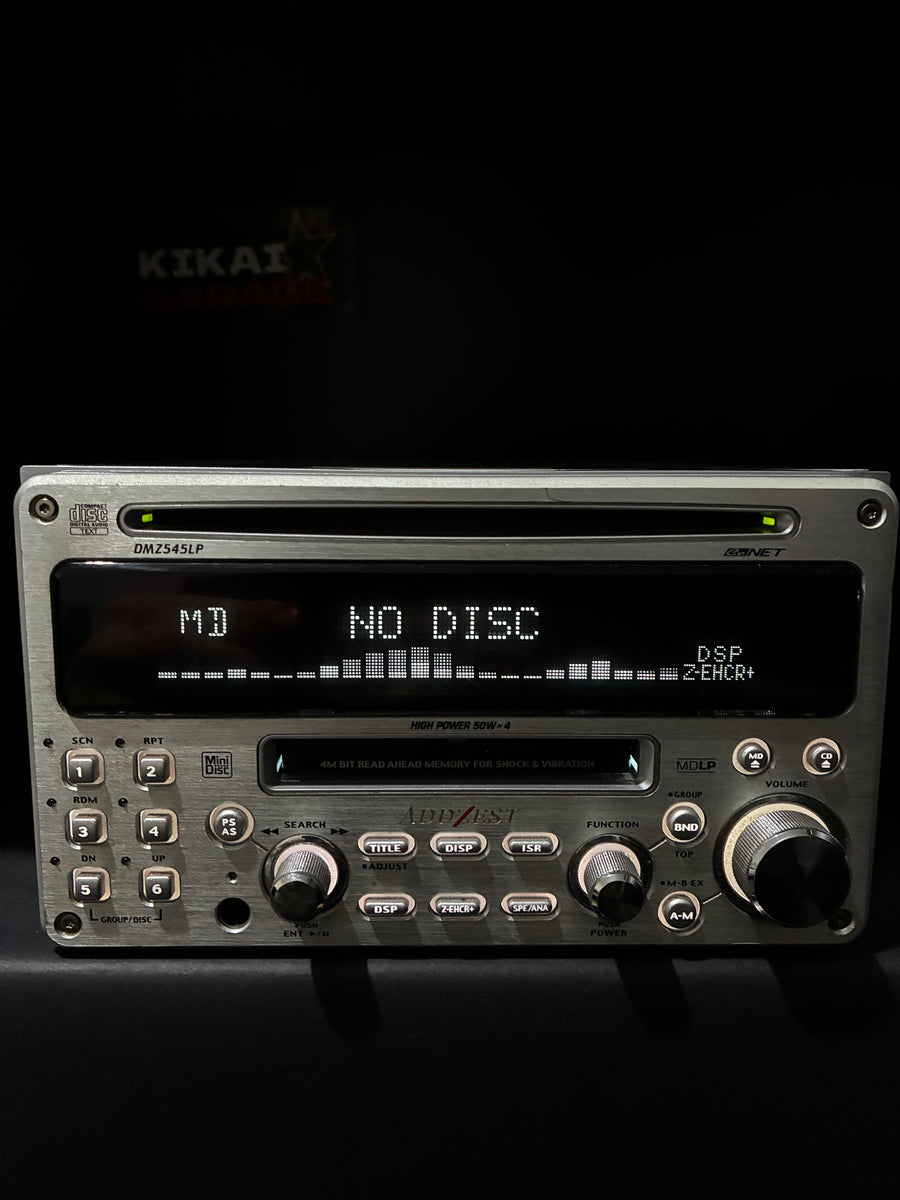

Addzest DMZ545LP
2DINセンターユニット: Addzest was Clarion's home-market badge, and the DMZ545LP is the version of that badge with the long-play MiniDisc deck fitted. Feed it an 80 minute disc recorded in LP4 and you get 320 minutes of continuous playback, which in 2004 was an absurd amount of music to carry in one slot, and it reads group-edited MDs properly rather than dumping every track into one flat list. Sound shaping comes in two layers: Z-Enhancer Plus for the character of the sound, with Bass Boost, Impact, Excite and a custom slot, and a separate five mode DSP for the space it sits in, from Club up to Stadium. Magna Bass EX adds 10 dB at 50 Hz when you drop the volume, so it keeps its weight at night. 50W x 4, a proper AUX input with three selectable sensitivity levels so a quiet source does not disappear, and CeNET wiring for an external DVD, CD or MD changer.
Bluetooth is included, and tested.
Amplifier has been tested successfully.
MD has been tested successfully.
CD has been tested successfully.
Harness Included.
| DMZ545LP KEY FEATURES | |
|---|---|
| Media | MiniDisc with MDLP (LP2 gives 160 min, LP4 gives 320 min from an 80 min disc) and group-edit playback, plus CD. MP3 only via an optional CeNET changer |
| Tuner | FM/AM. FM 76.0–90.0 MHz (Japan domestic band), AM 522–1,629 kHz. FM usable sensitivity 9 dBf, 50 dB quieting 15 dBf, S/N 70 dB, separation 35 dB (1 kHz). AM sensitivity 28 dBuV. ISR one touch station recall, Area Select automatic station naming, 30 station name memory |
| Power | 50W x 4 max output, 17W x 4 rated (20 Hz–20 kHz, 1%, 4 ohm), 4 to 8 ohm speakers, 2.0V line out |
| Sound | Z-Enhancer Plus with five settings (Bass Boost, Impact, Excite, Custom, off) layered over a five mode DSP (Stadium, Hall, Club, Church, Living Room). Magna Bass EX adds 10 dB at 50 Hz at low volume |
| Tone control | Bass selectable at 60, 100 or 200 Hz with plus or minus 15 dB, treble at 10 or 15 kHz with plus or minus 12 dB |
| AUX input | Three step input sensitivity: 650 mV, 1.3V or 2.0V for 2V output |
| CD spec | 10 Hz–20 kHz (plus or minus 1 dB), S/N 100 dB, dynamic range 95 dB, THD 0.01% |
| MD spec | 20 Hz–20 kHz, S/N 90 dB, dynamic range 85 dB, THD 0.01% (1 kHz) |
| Display | Message Information screensaver, 30 characters of your own text in alphanumerics or katakana |
| Electrical | DC 14.4V negative earth, 3.0A at 1W output, 15A and 3A fuses |
| Form factor | Double DIN (2-DIN), 178 x 100 x 180.5 mm with a 156.5 mm mounting depth, approx. 2.2 kg |
