Sony CDX-F7700
24 September 2026

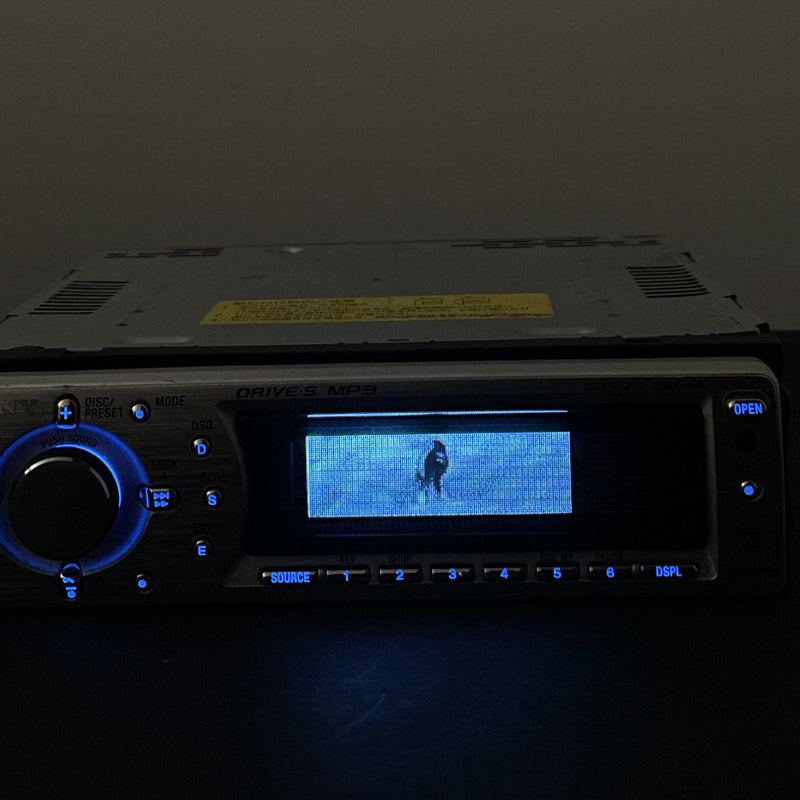

AM/FM コンパクトディスクプレーヤー — The Sony CDX-F7700 is a single-DIN CD receiver from Sony's North American Mobile ES line up. Worth noting that its a JDM build: the FM tuner covers the Japan domestic 76–90MHz band, so factor that in if FM reception matters to you. That aside, it's a well-built unit — a 52W×4 amp, a genuinely clean CD section (120dB S/N, 0.01% THD), Sony's BUS system inputs for linking to other compatible components, and front/rear/subwoofer pre-outs at a healthy 4V level. A solid period CD deck.
| SONY CDX-F7700 — KEY FEATURES | |
|---|---|
| Media | CD player — single-DIN CD receiver (Sony Mobile ES Bus system) |
| Tuner | FM/AM (JDM band) |
| Power | 52W × 4 max output (4 Ω) / 23.2W × 4 continuous (4 Ω, 20 Hz–20 kHz, ≤5% THD) |
| CD spec | S/N 120 dB, frequency response 10 Hz–20 kHz, separation 85 dB, THD 0.01% |
| Tone Control | Bass ±10 dB (62 Hz), Treble ±10 dB (16 kHz), Loudness +8 dB (100 Hz) / +2 dB (10 kHz) |
| Pre-out | 4V level, 220 Ω impedance — front/rear + mono subwoofer output |
| Form factor | Single DIN — approx. 178 × 50 × 178 mm / approx. 1.2 kg |
