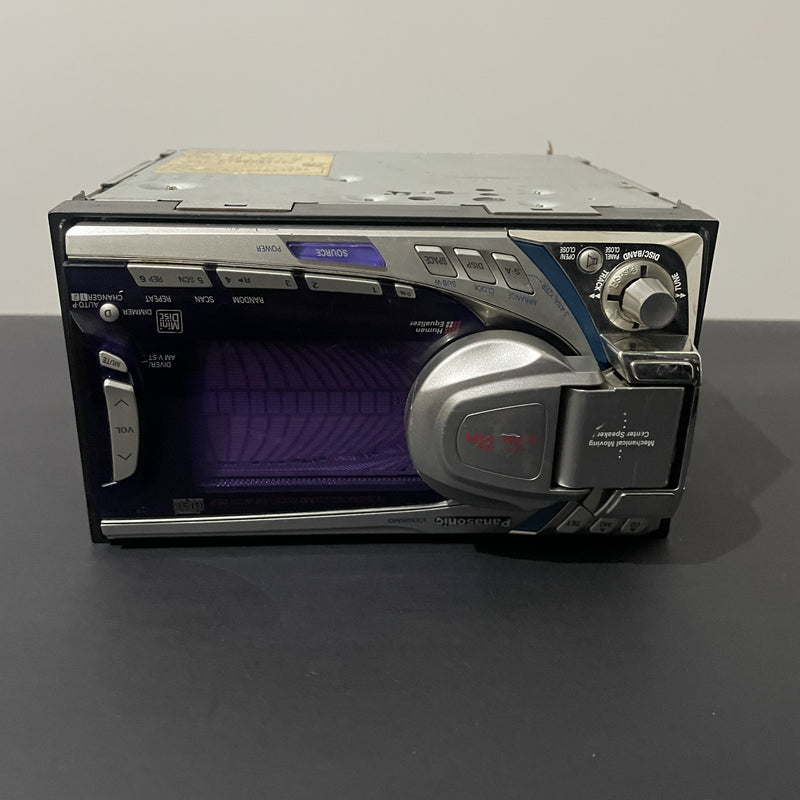

Panasonic CQ-VX505MD
24 September 2026
インテグレーテッド CD・MD・DSPレシーバー — The Panasonic CQ-VX505MD is an integrated CD/MD/DSP receiver from the same VX family as the CQ-VX3200D, but built around a 6-channel DSP output (2 inputs, 6 outputs) rather than a standard 4-channel layout — meaning front, rear, and a dedicated subwoofer channel can all be processed separately. The same 7-mode sound field selection (Live House, Concert Hall, Jazz Club, Stadium, Disco, Vocal, Cinema) and 7-band EQ carry over, paired with a 40W×4 + 10W max output stage. No cassette deck on this one — it's a clean CD/MD-only setup, which keeps things simple if tape was never your thing.
| PANASONIC CQ-VX505MD — KEY FEATURES | |
|---|---|
| Media | CD / CD-R/RW + MiniDisc — integrated CD/MD/DSP receiver (no cassette) |
| Tuner | FM/AM — FM 76.0–89.9 MHz (Japan domestic band), AM 522–1,629 kHz (9 kHz steps) |
| Power | 40W × 4 + 10W max output / 16W × 4 continuous (4 Ω, 1 kHz, 1% THD) |
| DSP / Sound | 6-channel DSP output (2-in/6-out) — 7-mode sound field (Live House, Concert Hall, Jazz Club, Stadium, Disco, Vocal, Cinema), 7-band EQ (80 Hz–10 kHz, ±12 dB) |
| CD/MD spec | Frequency response 5 Hz–20 kHz, S/N 90 dB (IHF-A), wow & flutter below measurable limits — both CD and MD sections |
| Pre-out | 600mV output level, 600 Ω impedance |
| Form factor | Double DIN (2-DIN) — 178 × 100 × 160 mm / approx. 2.7 kg |
