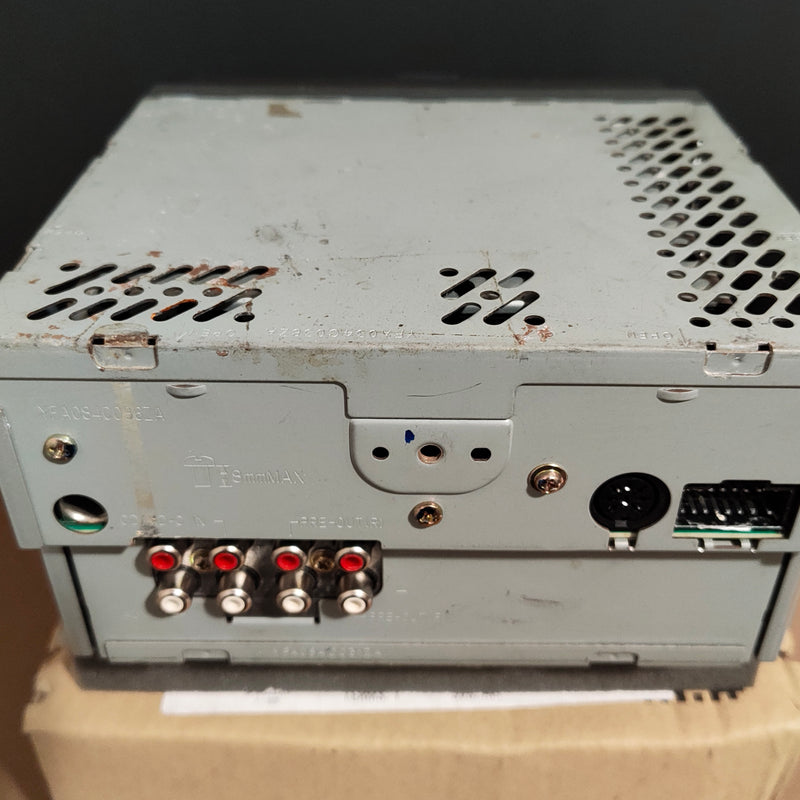

Panasonic CQ-VX3500

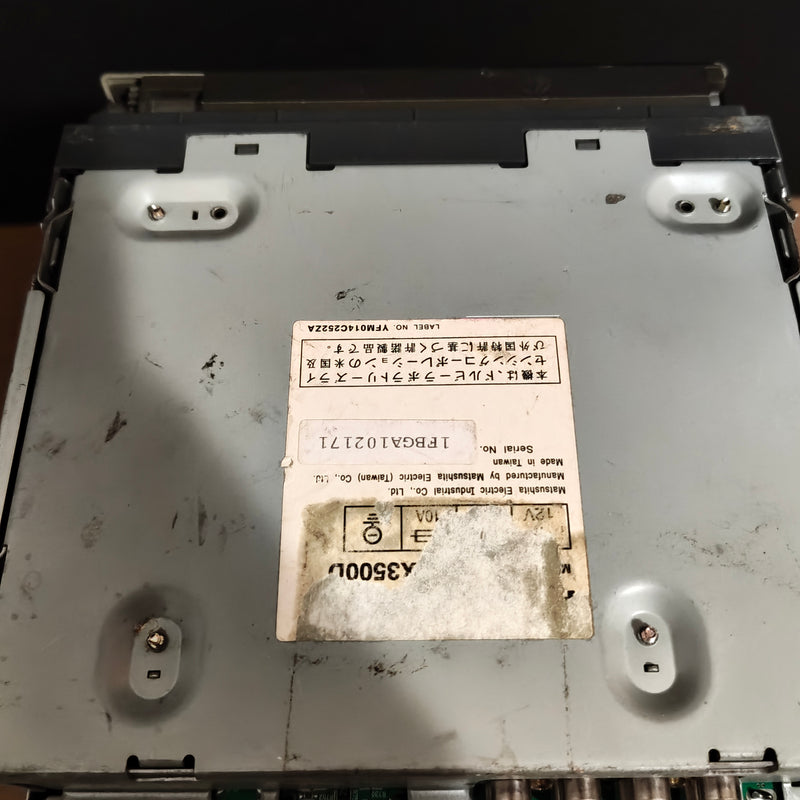

The Panasonic CQ-VX3500D is a double-DIN receiver with CD and MiniDisc transports, an FM/AM tuner and a DSP section. The model code printed on the manual's back cover is CQ-VX3500D; the fascia itself reads CQ-VX3500, the D being Panasonic's domestic-market suffix. The manual's part number is YFM284C353ZA.

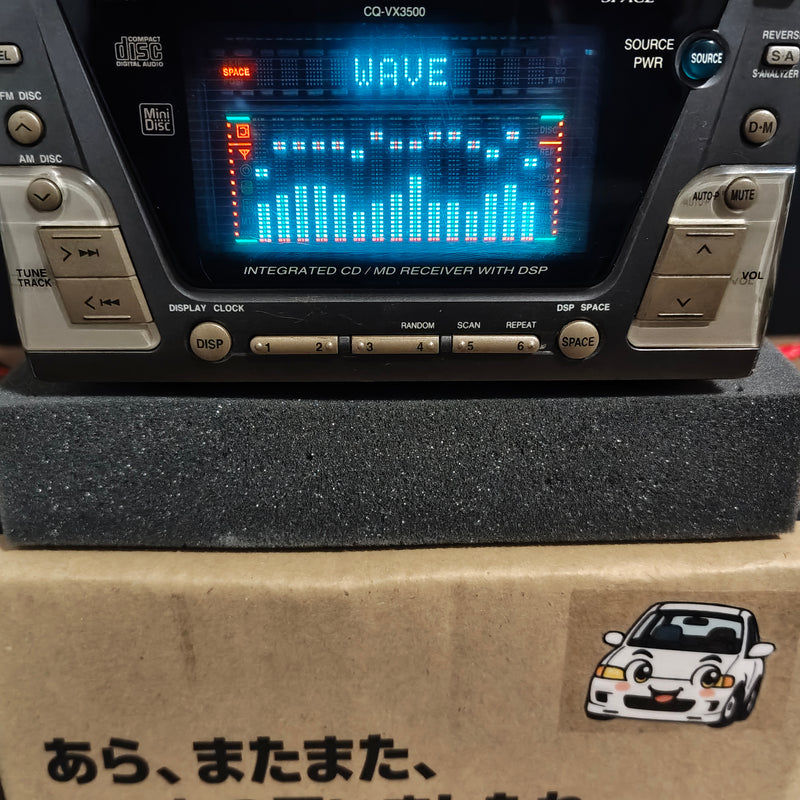

The DSP section takes two input channels and delivers four output channels, with seven selectable space modes. The equaliser has seven bands centred at 80, 160, 320, 640 Hz and 1.6, 4 and 10 kHz, adjustable across plus or minus 12 dB in thirteen steps. The manual also documents a Human Equalizer function, a spectrum analyser display, and a Super Dynamic Bass Boost control, along with a listening position selection and a subwoofer setting reached through the SBC-SW menu item.

The CD section is specified as two channels with 16-bit linear decoding, a frequency response of 20 Hz -> 20 kHz, signal-to-noise of 90 dB measured to JEITA and wow and flutter below measurable limits. The MiniDisc section covers 5 Hz -> 20 kHz with the same 90 dB signal-to-noise figure. CD-R media is supported.

An auxiliary input is provided at 2V sensitivity into 10 kohm, and the pre-out delivers 2V into an output impedance of 600 ohm or less. The manual documents changer control for CD and MD changers, an MD input, a reset switch and a remote receiver, with the CA-RC55D listed as the remote control.

Output is rated at 16W x 4 per channel at 1 kHz, 1 percent and 4 ohms, with a maximum of 41W x 4. Supply is DC 12V negative earth at a test voltage of 14.4V, drawing up to 8.5A at rated CD output.

CQ-VX3500D SPECIFICATIONS
Media	CD including CD-R, and MiniDisc
FM tuner	76.0 -> 89.9 MHz (Japan domestic band)
AM tuner	522 -> 1629 kHz
CD section	2 channels, 16-bit linear decoding, frequency response 20 Hz -> 20 kHz, S/N 90 dB (JEITA), wow and flutter below measurable limits
MD section	Frequency response 5 Hz -> 20 kHz, S/N 90 dB (JEITA), wow and flutter below measurable limits
Audio section	Maximum output 41W x 4 channels, rated output 16W x 4 channels (1 kHz, 1%, 4 ohm), matched speaker impedance 4 ohm, pre-out 2V into 600 ohm or less
DSP section	2 input channels and 4 output channels, 7 space modes. Equaliser centre frequencies 80, 160, 320, 640 Hz, 1.6, 4, 10 kHz, adjustment range plus or minus 12 dB in 13 steps
Sound features	Human Equalizer, spectrum analyser display, Super Dynamic Bass Boost, listening position selection, subwoofer setting via SBC-SW

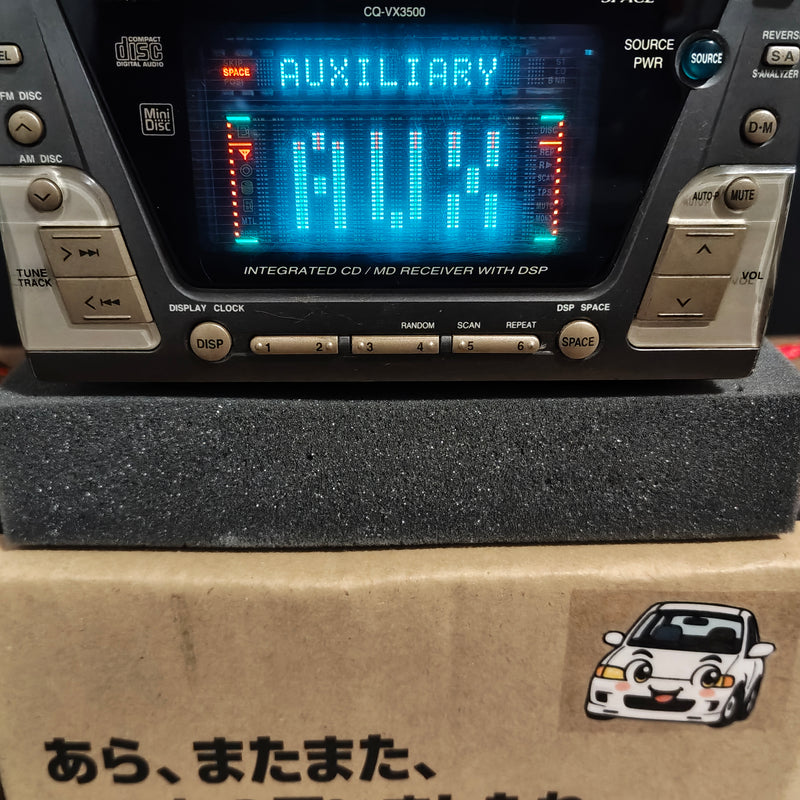

Auxiliary input	Sensitivity 2V, input impedance 10 kohm

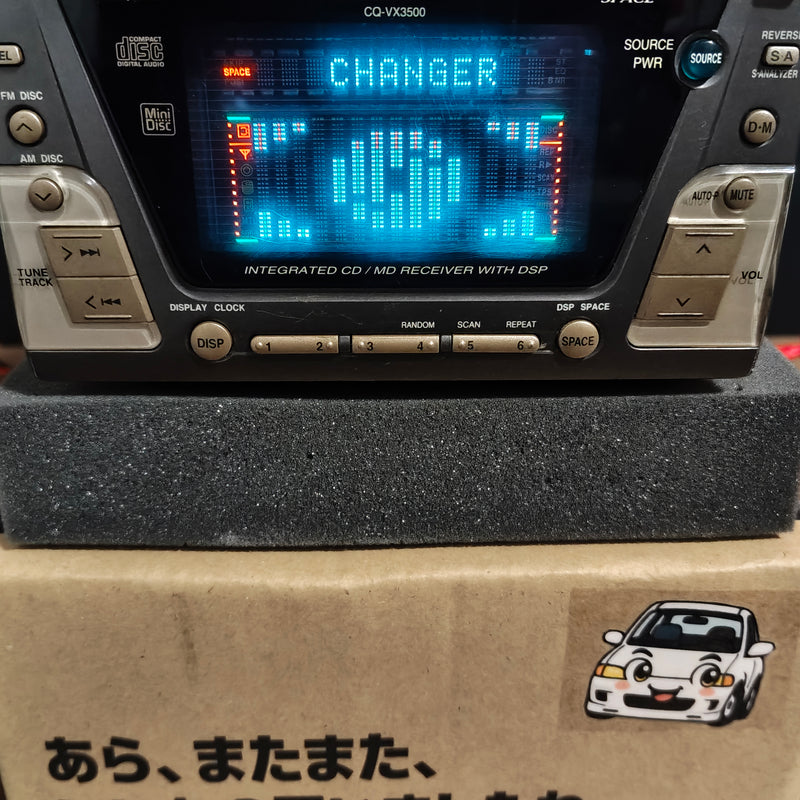

Expansion	CD and MD changer control, MD input
Remote control	CA-RC55D
Electrical	DC 12V negative earth at 14.4V test voltage, current draw up to 8.5A at rated CD output

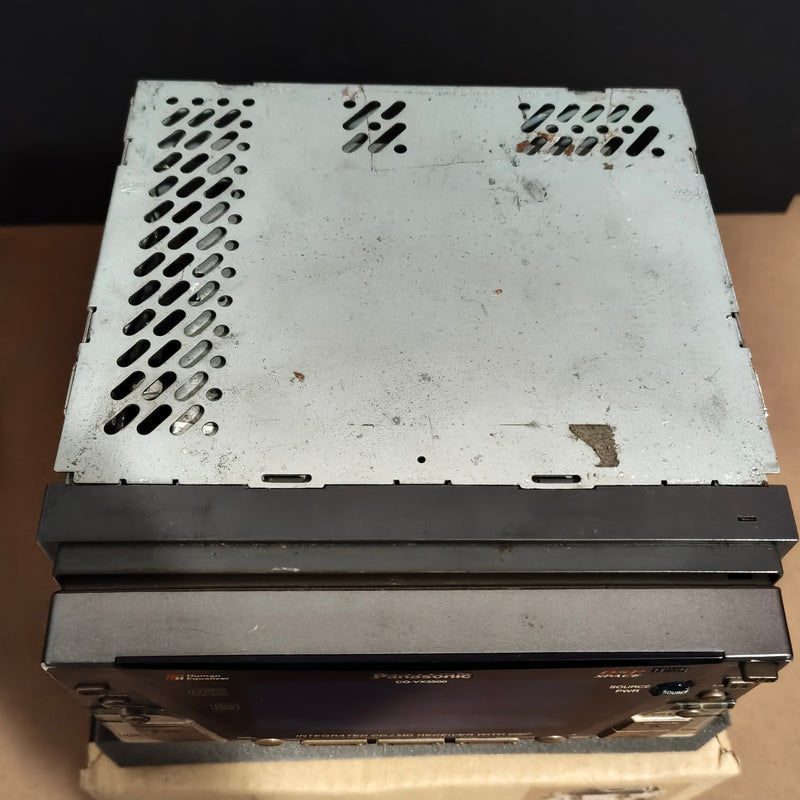

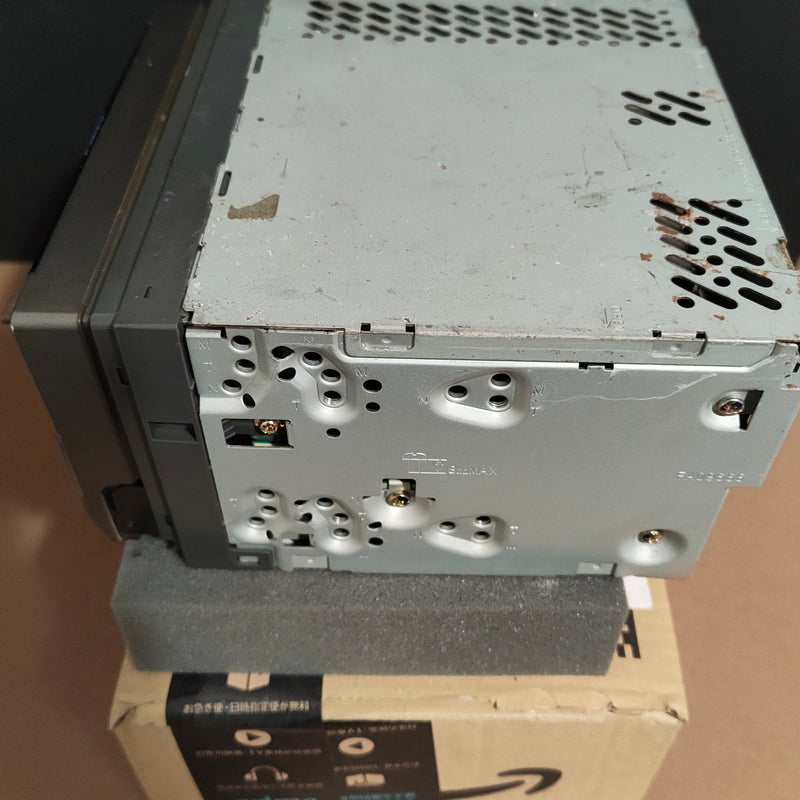

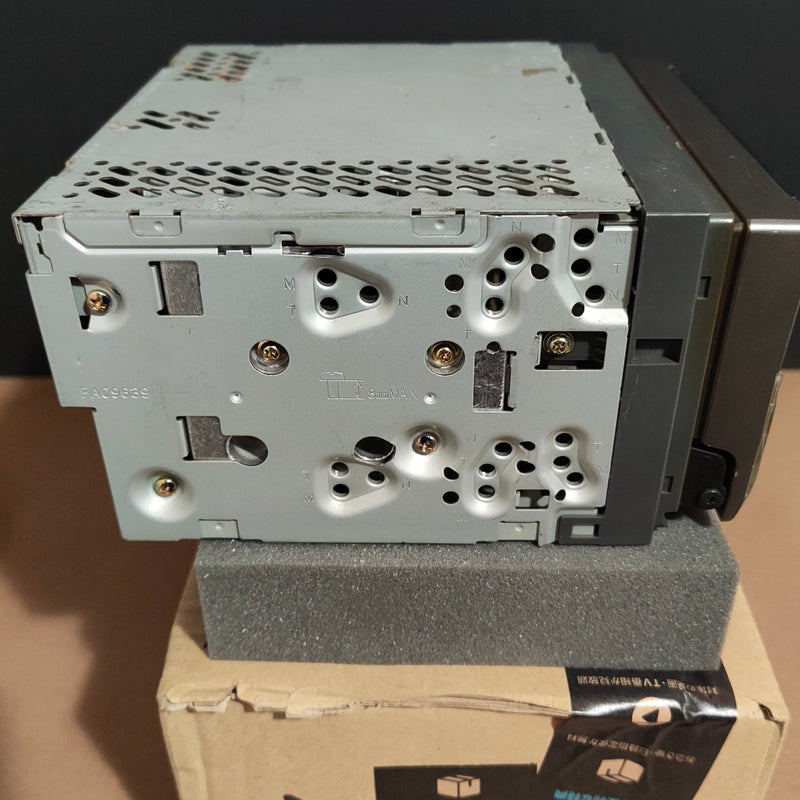

Form factor	Double-DIN, 178 x 100 x 160 mm, mass 2.3 kg
Source	Panasonic owner's manual for the CQ-VX3500D, part number YFM284C353ZA
