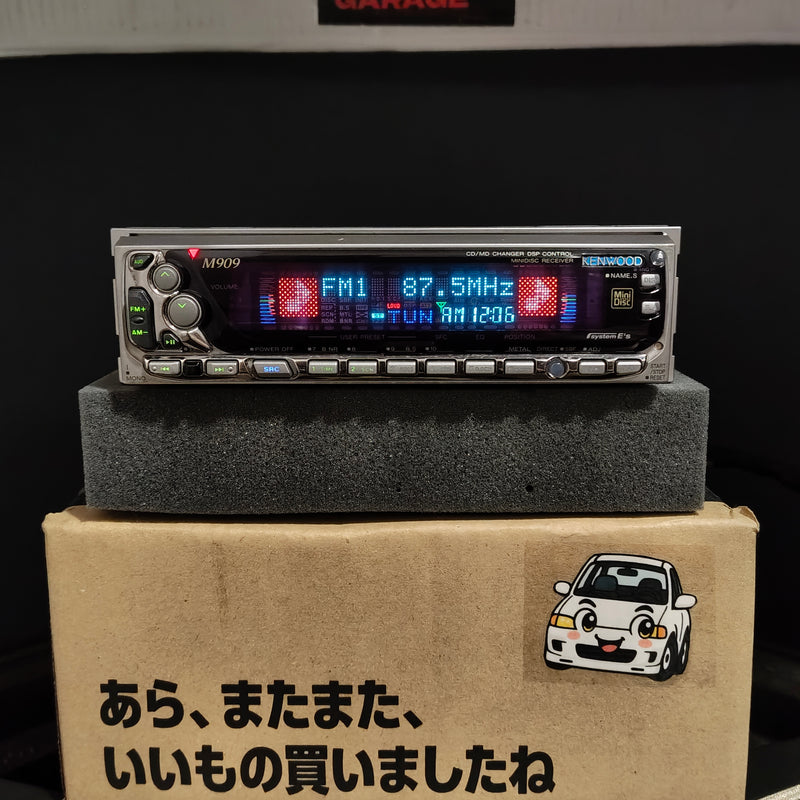

Kenwood M909

The Kenwood M909 is a single-DIN receiver with a MiniDisc transport and an FM/AM tuner. The manual carries publication number B64-1334-00. Its mounting dimensions are 178 x 50 x 160 mm with a mass of 1.7 kg, so despite a fascia that presents at double-DIN scale it occupies a single-DIN aperture. The specification lists no CD section.

The MiniDisc transport uses a GaAlAs double-hetero laser diode at 780 nm with an eight times oversampling digital filter and a 1-bit digital-to-analogue converter, running at 400 -> 900 rpm under constant linear velocity. Frequency response is 20 Hz -> 20 kHz within plus or minus 1 dB, with 0.01 percent distortion at 1 kHz, 93 dB signal-to-noise, 90 dB dynamic range and 85 dB stereo separation. Wow and flutter is below measurable limits.

Sound adjustment is a two-band tone control at 100 Hz and 10 kHz, each across plus or minus 10 dB. No multi-band equaliser or DSP section appears in the specification.

Output is rated at 28W x 4 into 4 ohms at 1 kHz and 10 percent THD with a maximum of 44W x 4. The specification gives a pre-out impedance of 600 ohm or less but no pre-out level. A remote control is listed among the supplied parts, alongside the power harness, four truss screws and one bind screw.

M909 SPECIFICATIONS
Media	MiniDisc. No CD section is listed in the specification
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 40 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu
MD section	GaAlAs double-hetero laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 400 -> 900 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 20 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 93 dB (1 kHz), dynamic range 90 dB, stereo separation 85 dB
Audio section	Maximum output 44W x 4, rated output 28W x 4 (4 ohm, 1 kHz, 10% THD), pre-out impedance 600 ohm or less. No pre-out level specified
Tone control	Bass plus or minus 10 dB (100 Hz), treble plus or minus 10 dB (10 kHz)
Supplied parts	Power harness, truss screws M5 x 6 mm (four), bind screw M4 x 6 mm (one), remote control
Electrical	14.4V (11 -> 16V), maximum current draw 10.0A
Form factor	Single-DIN, mounting dimensions 178 x 50 x 160 mm, mass 1.7 kg
Source	Kenwood owner's manual, publication B64-1334-00
