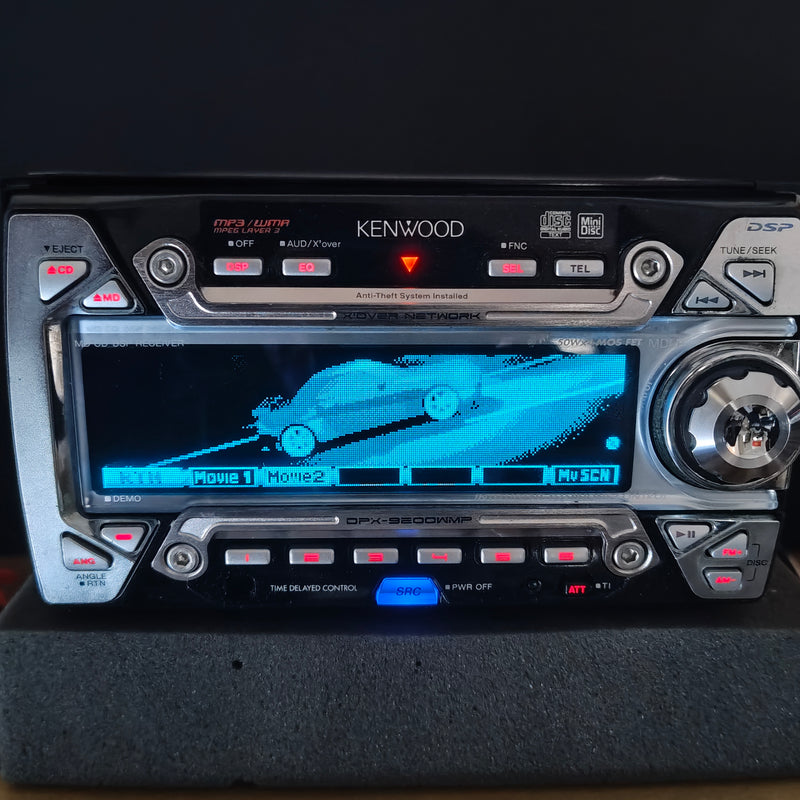

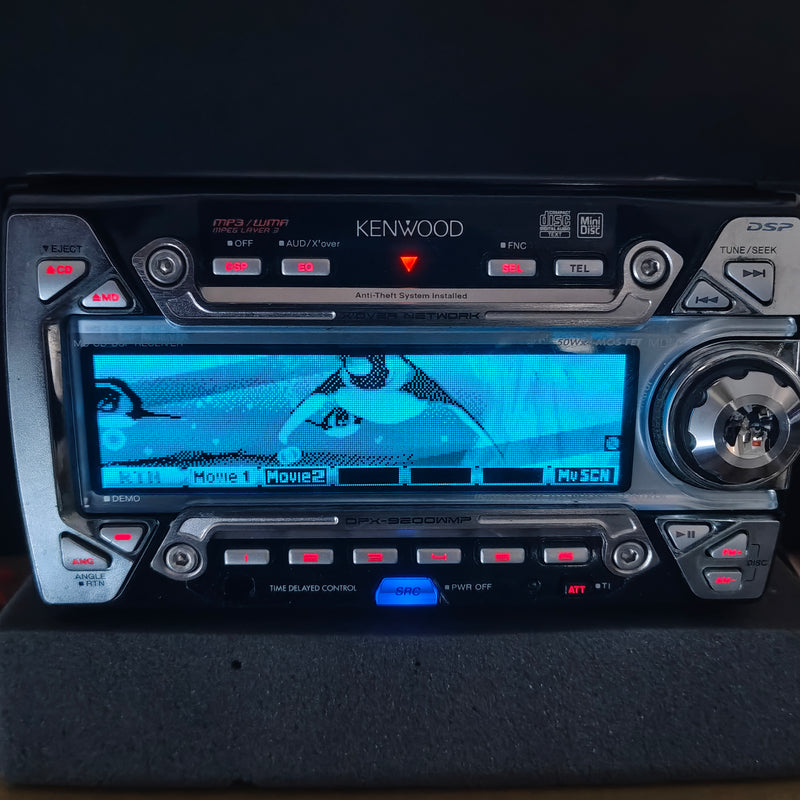

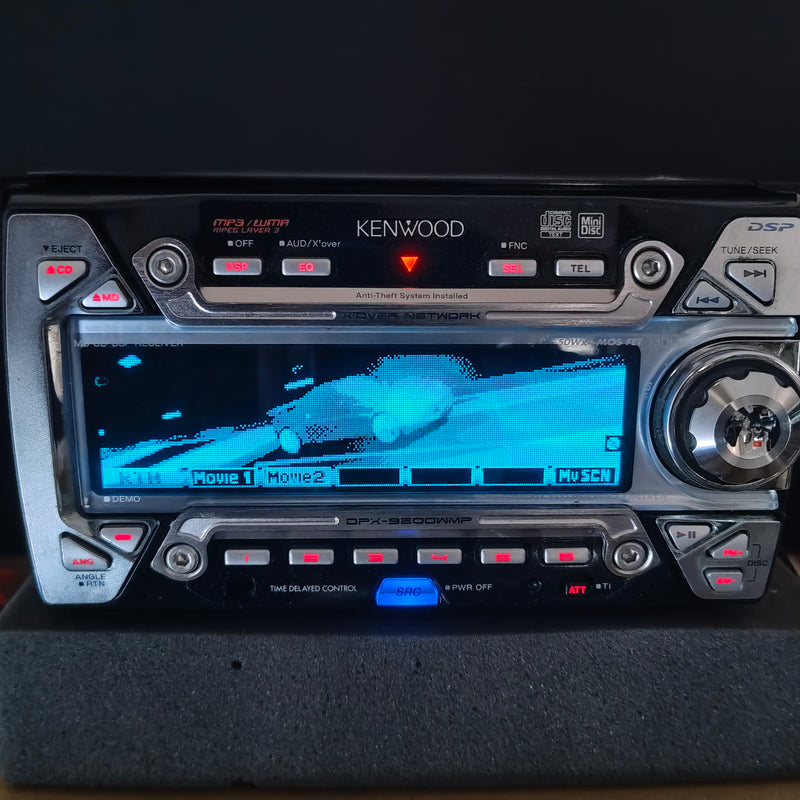

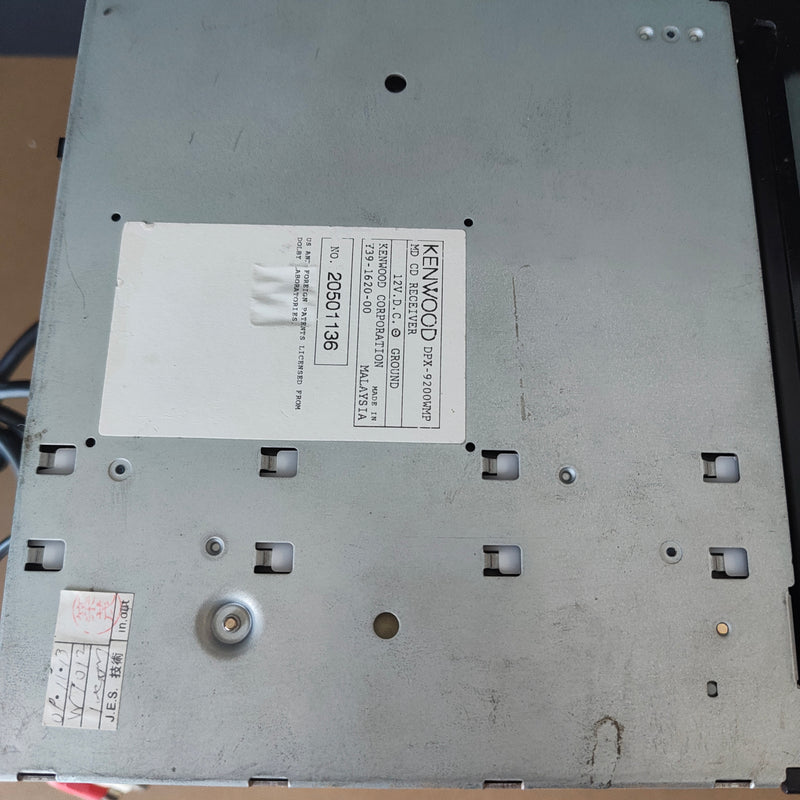

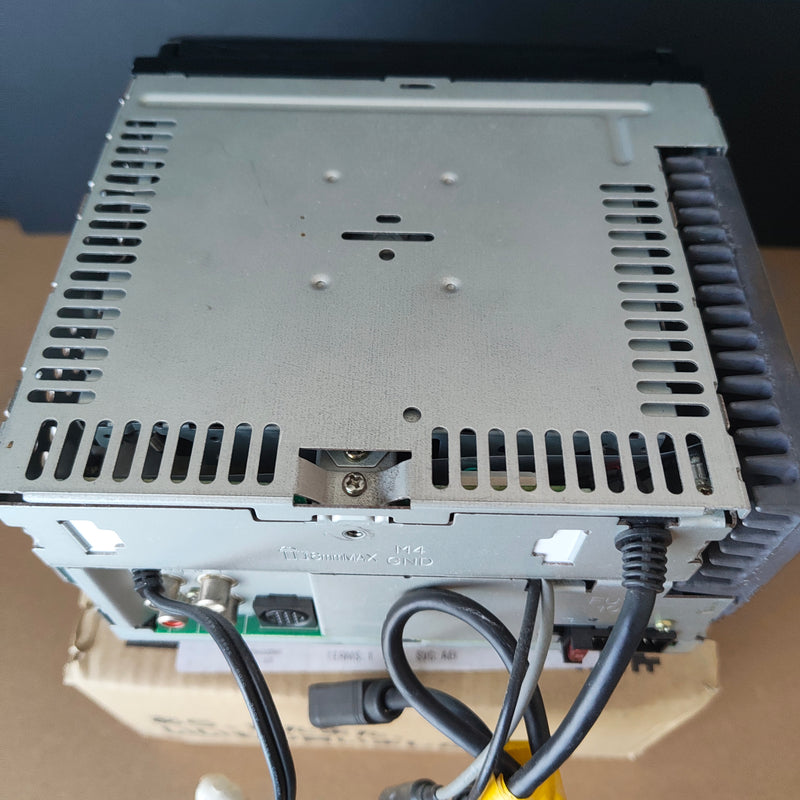

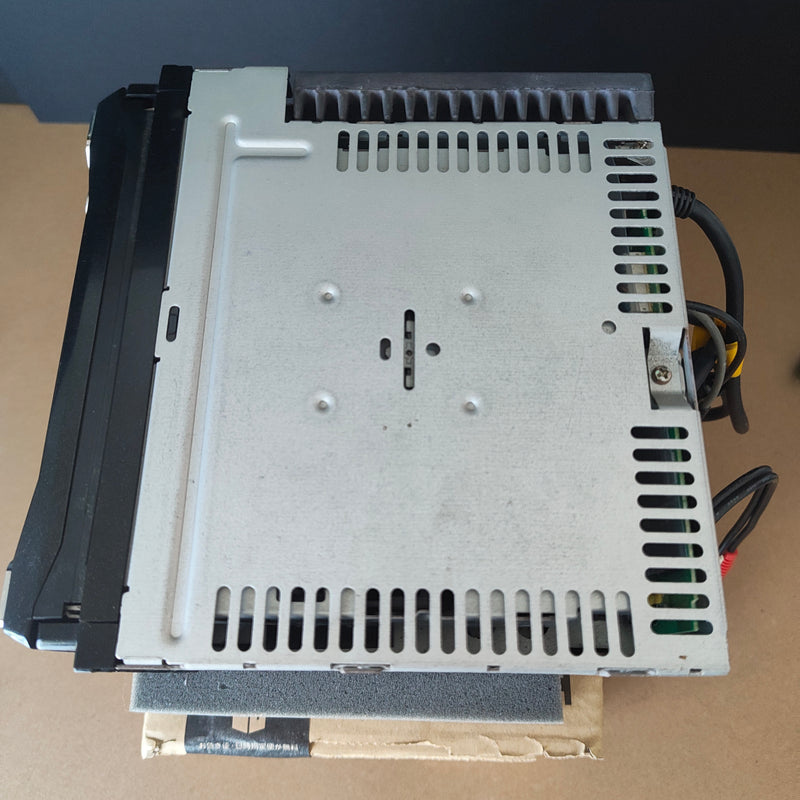

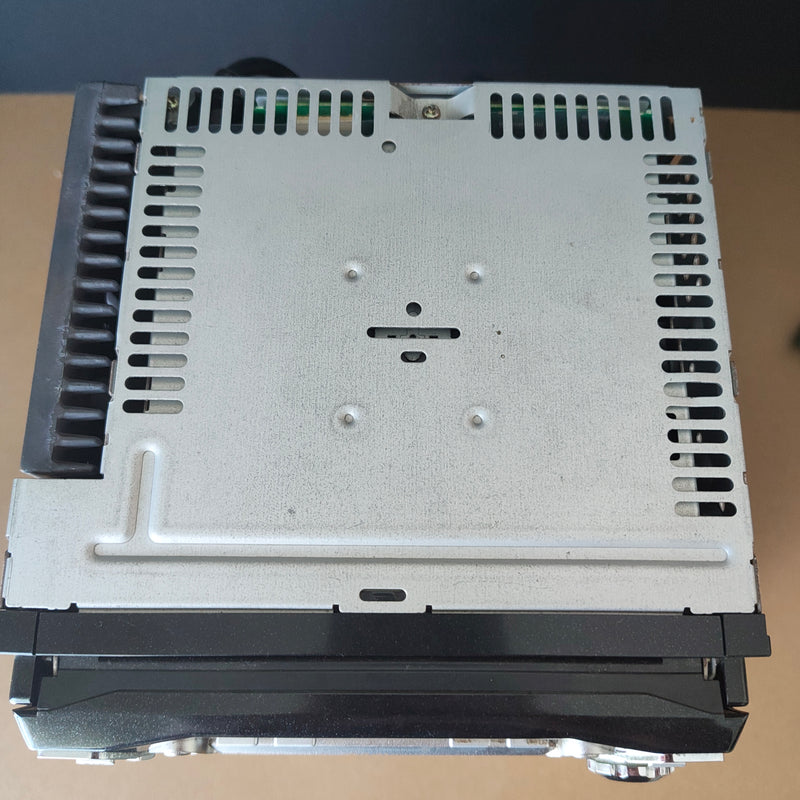

Kenwood DPX-9200WMP

The Kenwood DPX-9200WMP is a double-DIN receiver with CD and MiniDisc transports and an FM/AM tuner. The manual titles it MP3/WMA対応デュアルサイズCD/MDレシーバー and covers two models, the DPX-9200WMP and the DPX-8200WMP, under publication number B64-2209-10. Two entries in the specification differ between them and are noted below.

The CD transport reads CD and CD-R/RW media and decodes MP3 to MPEG-1, MPEG-2 and MPEG-2.5 Audio Layer-3, and WMA to the Windows Media Audio standard. It runs at 400 -> 1000 rpm under constant linear velocity at double speed. The MiniDisc transport supports MDLP and runs at 400 -> 900 rpm. Both use a GaAlAs laser diode at 780 nm with a 1-bit digital-to-analogue converter and eight times oversampling.

The two models are separated by their conversion and equalisation. The DPX-9200WMP uses third-order delta-sigma converters at 20-bit resolution with 128 times oversampling, against 18-bit on the DPX-8200WMP. Its equaliser has nine bands, centred at 60, 120, 250, 500 Hz and 1, 2, 4, 8 and 16 kHz, where the DPX-8200WMP has seven, centred at 60, 160, 400 Hz and 1, 2, 6 and 16 kHz. Both adjust across plus or minus 12 dB in six steps.

An auxiliary input is provided, specified at 20 Hz -> 20 kHz within plus or minus 1 dB, accepting a maximum of 1.5V into an impedance of 68 kohm or more. The pre-out delivers 1.8V into 10 kohm with an output impedance of 600 ohm or less. A remote control and a CR2025 cell are listed among the supplied parts alongside the power harness and mounting hardware.

The CD section's quoted signal-to-noise ratio of 105 dB is the highest of any transport in this archive, and exceeds the MiniDisc section in the same chassis by 15 dB.

DPX-9200WMP SPECIFICATIONS
Media	CD and CD-R/RW with MP3 (MPEG-1, MPEG-2, MPEG-2.5 Audio Layer-3) and WMA (Windows Media Audio) decoding, plus MiniDisc with MDLP
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 40 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu
CD section	GaAlAs laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 400 -> 1000 rpm constant linear velocity at double speed, wow and flutter below measurable limits, frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 105 dB (1 kHz), dynamic range 95 dB, stereo separation 85 dB
MD section	GaAlAs laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 400 -> 900 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 20 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 90 dB (1 kHz), dynamic range 90 dB, stereo separation 85 dB
Audio section	Maximum output 50W x 4, rated output 30W x 4 (4 ohm, 1 kHz, 10% THD), pre-out level 1.8V/10 kohm, pre-out impedance 600 ohm or less
Auxiliary input	Frequency response 20 Hz -> 20 kHz (plus or minus 1 dB), maximum input 1.5V, input impedance 68 kohm or more
DSP and equaliser	Third-order delta-sigma converters, 20-bit, 128 times oversampling (18-bit on the DPX-8200WMP). Equaliser centre frequencies 60, 120, 250, 500 Hz, 1, 2, 4, 8, 16 kHz (seven bands at 60, 160, 400 Hz, 1, 2, 6, 16 kHz on the DPX-8200WMP), adjustment range plus or minus 12 dB in six steps
Supplied parts	Power harness, truss screws M5 x 6 mm (six), flat screws M5 x 7 mm (six), sems screw M4 x 8 mm (one), remote control, CR2025 cell
Electrical	14.4V (11 -> 16V), maximum current draw 10A

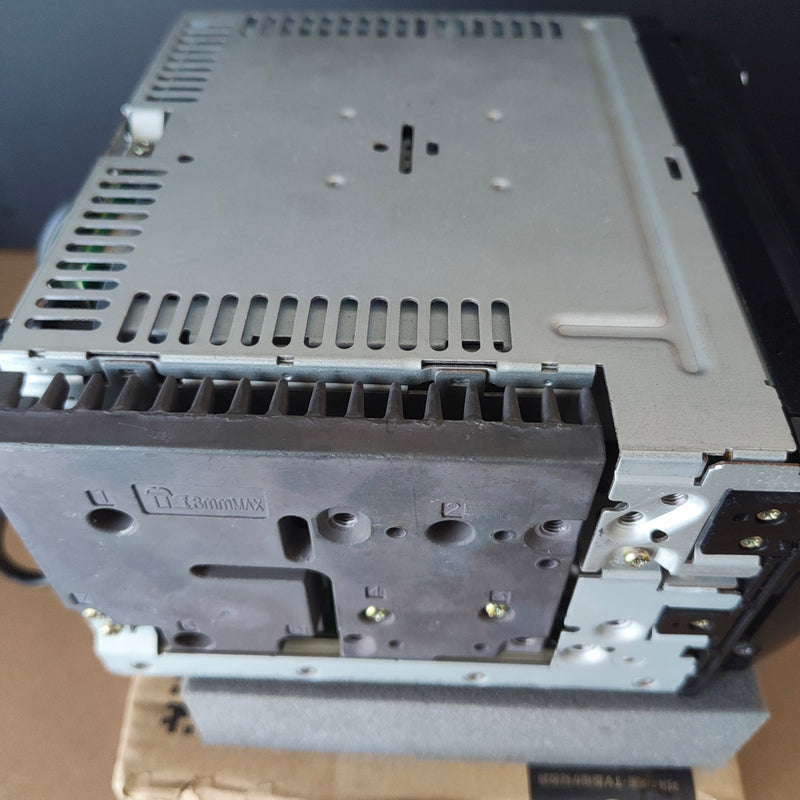

Form factor	Double-DIN, mounting dimensions 178 x 100 x 155 mm, mass 2.8 kg
Source	Kenwood owner's manual, publication B64-2209-10, covering DPX-9200WMP and DPX-8200WMP
