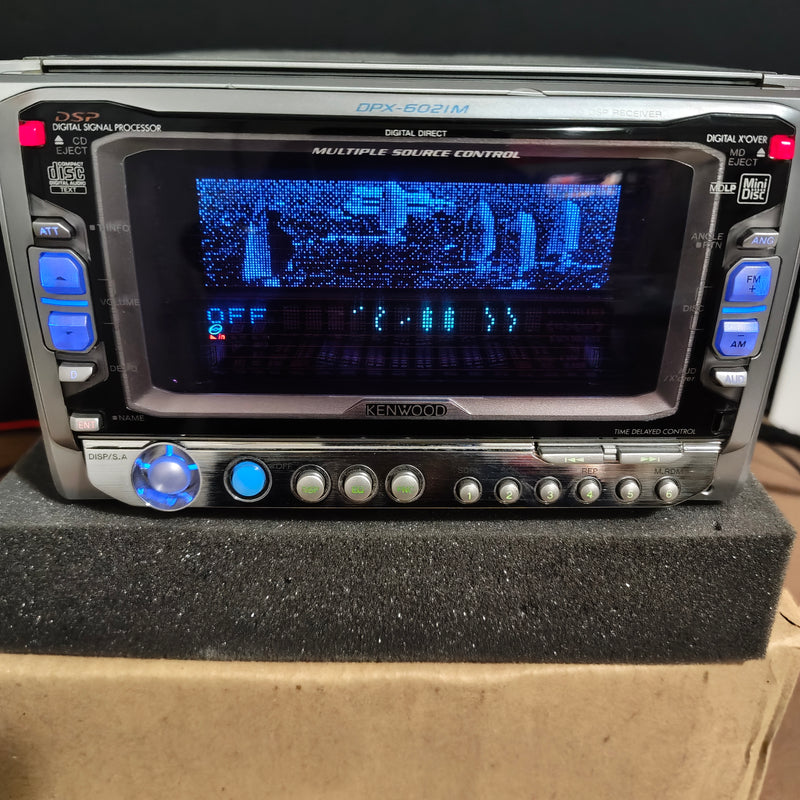

Kenwood DPX-6021M

The Kenwood DPX-6021M is a double-DIN receiver with MiniDisc and CD transports and an FM/AM tuner. It is the entry model of a three-unit family documented in publication B64-2003-00, below the DPX-8021Mi and the DPX-9021MPi. Several specification entries are model-specific and are noted below.

The DPX-6021M does not decode MP3. The manual lists MP3 decoding, to MPEG-1.0 Audio Layer-3, against the DPX-9021MPi only. The MiniDisc transport plays MDLP recordings, with the display lighting separate indicators for LP2 and LP4 material.

Both transports use a GaAlAs double-hetero laser diode at 780 nm. The MiniDisc mechanism runs at 400 -> 900 rpm under constant linear velocity and the CD mechanism at 500 -> 200 rpm. The transport specifications are shared across all three models: the MiniDisc section at 0.005 percent distortion, 93 dB signal-to-noise and 93 dB dynamic range, and the CD section at 0.01 percent distortion, 95 dB signal-to-noise and 95 dB dynamic range with 88 dB stereo separation.

Conversion and equalisation are also common to the family. Third-order delta-sigma converters operate in both directions at 20-bit resolution with 128 times oversampling, and the equaliser provides nine bands centred at 60, 120, 250, 500 Hz and 1, 2, 4, 8 and 16 kHz, each adjustable across plus or minus 12 dB in six steps.

Where the DPX-6021M separates from its siblings is output and supplied parts. It is rated at 29W x 4 into 4 ohms at 1 kHz and 10 percent THD with a maximum of 47W x 4, against 30W and 50W for the two models above it. Its supplied parts list carries the power harness and mounting hardware only: the remote control, AAA cells, parking sensor relay cord and relay connector are listed for the DPX-9021MPi and DPX-8021Mi only. Mass is listed as 3.3 kg for the group.

DPX-6021M SPECIFICATIONS
Media	MiniDisc including MDLP (LP2 and LP4) and CD. MP3 decoding is listed for the DPX-9021MPi only
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 40 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu
MD section	GaAlAs double-hetero laser diode (780 nm), 400 -> 900 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 20 Hz -> 20 kHz (plus or minus 1 dB), THD 0.005% (1 kHz), S/N 93 dB (1 kHz), dynamic range 93 dB, stereo separation 85 dB
CD section	GaAlAs double-hetero laser diode (780 nm), 500 -> 200 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 95 dB (1 kHz), dynamic range 95 dB, stereo separation 88 dB
Audio section	Maximum output 47W x 4, rated output 29W x 4 (4 ohm, 1 kHz, 10% THD), pre-out level 1.5V/10 kohm (FM), pre-out impedance 600 ohm or less
DSP and equaliser	Third-order delta-sigma A/D and D/A converters, 20-bit, 128 times oversampling. Equaliser centre frequencies 60, 120, 250, 500 Hz, 1, 2, 4, 8, 16 kHz, adjustment range plus or minus 12 dB in six steps
Supplied parts	Power harness, truss screws M5 x 6 mm (six), flat screws M5 x 7 mm (six), sems screw M4 x 8 mm (one). The remote control, AAA cells, parking sensor relay cord and relay connector are listed for the DPX-9021MPi and DPX-8021Mi only
Electrical	14.4V (11 -> 16V), maximum current draw 10A
Form factor	Double-DIN, mounting dimensions 178 x 100 x 155 mm, mass 3.3 kg
Source	Kenwood owner's manual, publication B64-2003-00, covering DPX-9021MPi, DPX-8021Mi and DPX-6021M
