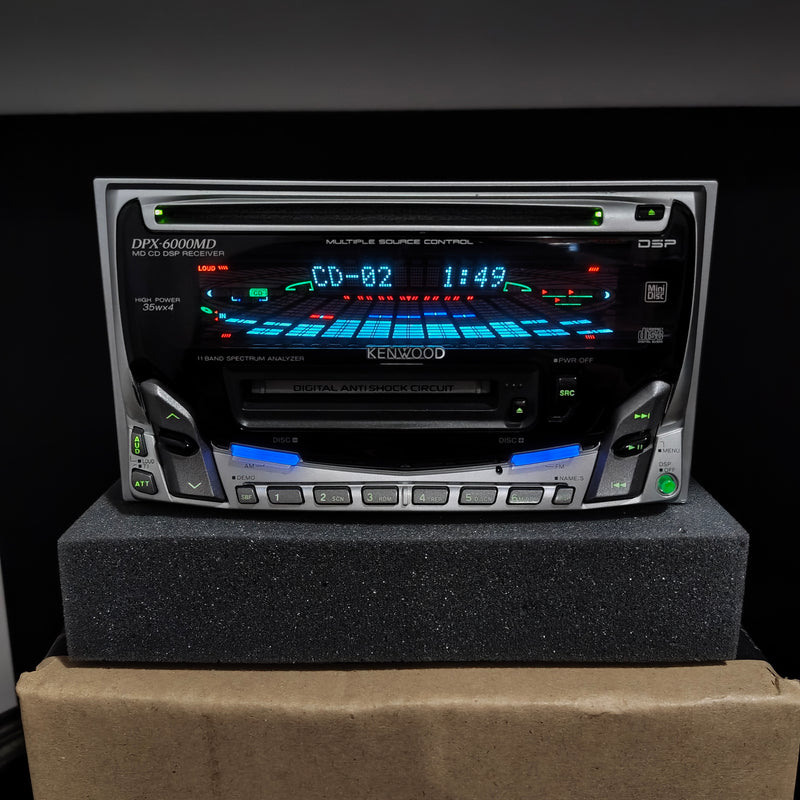

Kenwood DPX-6000MD

The Kenwood DPX-6000MD is a double-DIN receiver with MiniDisc and CD transports and an FM/AM tuner. Kenwood's designation on the manual cover is デュアルサイズMD/CDレシーバー. The manual carries publication number B64-1474-00.

Both transports use a GaAlAs double-hetero laser diode at 780 nm with an eight times oversampling digital filter and a 1-bit digital-to-analogue converter. The MiniDisc mechanism runs at 900 -> 400 rpm under constant linear velocity and the CD mechanism at 500 -> 200 rpm. Wow and flutter on both is quoted as below measurable limits.

Both sections are quoted at 0.01 percent distortion at 1 kHz. The CD section returns 93 dB signal-to-noise and 93 dB dynamic range with 85 dB channel separation, and the MiniDisc section 90 dB on the first two counts with 80 dB channel separation.

Sound adjustment is a two-band tone control, at 100 Hz and 10 kHz, each across plus or minus 10 dB. There is no multi-band equaliser and no DSP section in this specification, which separates it from the DPX-510 and DPX-910MD of the same era.

Output is rated at 21W x 4 into 4 ohms at 1 kHz and 10 percent THD, with a maximum of 35W x 4. These are the lowest output figures recorded in this archive. The pre-out is quoted at 1500 mV into 10 kohm with an output impedance of 600 ohm or less, a higher pre-out level than the later DPX models. Supplied parts cover the power harness and mounting hardware, with no remote control listed.

DPX-6000MD SPECIFICATIONS
Media	MiniDisc and CD
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 40 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu (25 uV/75 ohm)
MD section	GaAlAs double-hetero laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 900 -> 400 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 20 Hz -> 20 kHz, THD 0.01% (1 kHz), S/N 90 dB (1 kHz), dynamic range 90 dB, channel separation 80 dB
CD section	GaAlAs double-hetero laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 500 -> 200 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 10 Hz -> 20 kHz, THD 0.01% (1 kHz), S/N 93 dB, dynamic range 93 dB, channel separation 85 dB
Audio section	Maximum output 35W x 4, rated output 21W x 4 (4 ohm, 1 kHz, 10% THD), pre-out level 1500 mV/10 kohm (FM), pre-out impedance 600 ohm or less
Tone control	Bass plus or minus 10 dB (100 Hz), treble plus or minus 10 dB (10 kHz)
Supplied parts	Power harness, truss screws M5 x 6 mm (six), bind screw M4 x 6 mm (one). No remote control listed
Electrical	14.4V (11 -> 16V), maximum current draw 10A
Form factor	Double-DIN, mounting dimensions 178 x 100 x 155 mm, mass 2.7 kg
Source	Kenwood owner's manual, publication B64-1474-00
