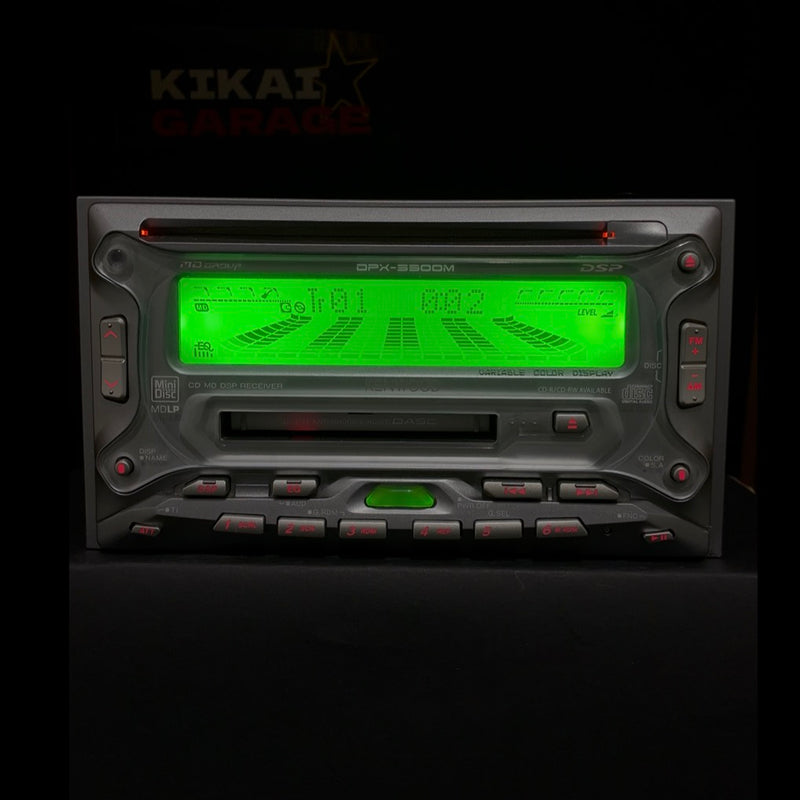

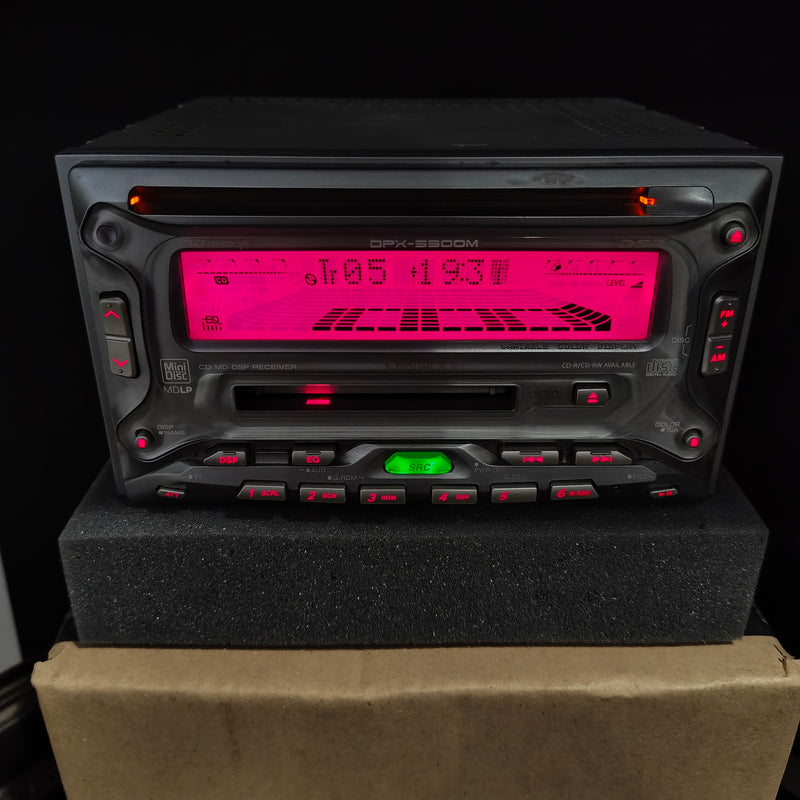

Kenwood DPX-5300M

The Kenwood DPX-5300M is a double-DIN receiver with CD and MiniDisc transports and an FM/AM tuner. The manual carries publication number B64-2455-00.

Both transports use a GaAlAs laser diode at 780 nm feeding a 1-bit digital-to-analogue converter with an eight times oversampling digital filter. The CD mechanism runs at 500 -> 200 rpm under constant linear velocity, the MiniDisc mechanism at 400 -> 900 rpm. Wow and flutter on both is quoted as below measurable limits.

As with the other Kenwood MD receivers in this archive, the MiniDisc section measures lower distortion than the CD section beside it: 0.005 percent against 0.01 percent, both at 1 kHz. The CD section returns the higher signal-to-noise ratio and dynamic range, at 93 dB against the MiniDisc section's 90 dB.

Output is rated at 29W x 4 into 4 ohms at 1 kHz and 10 percent THD, with a maximum of 47W x 4, and the pre-out delivers 1.5V into 10 kohm with an output impedance of 600 ohm or less. These match the DPX-5021M and the DPX-6021M. At 2.2 kg the DPX-5300M is the lightest of that group.

The supplied parts list covers the power harness and mounting hardware only. No remote control is listed.

DPX-5300M SPECIFICATIONS
Media	CD and MiniDisc
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 40 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu
CD section	GaAlAs laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 500 -> 200 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 93 dB (1 kHz), dynamic range 93 dB, stereo separation 85 dB
MD section	GaAlAs laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 400 -> 900 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 20 Hz -> 20 kHz (plus or minus 1 dB), THD 0.005% (1 kHz), S/N 90 dB (1 kHz), dynamic range 90 dB, stereo separation 85 dB
Audio section	Maximum output 47W x 4, rated output 29W x 4 (4 ohm, 1 kHz, 10% THD), pre-out level 1.5V/10 kohm (FM), pre-out impedance 600 ohm or less
Supplied parts	Power harness, truss screws M5 x 6 mm (six), flat screws M5 x 7 mm (six), sems screw M4 x 8 mm (one). No remote control supplied
Electrical	14.4V (11 -> 16V), maximum current draw 10A
Form factor	Double-DIN, mounting dimensions 178 x 100 x 155 mm, mass 2.2 kg
Source	Kenwood owner's manual, publication B64-2455-00
