Kenwood DPX-5021M

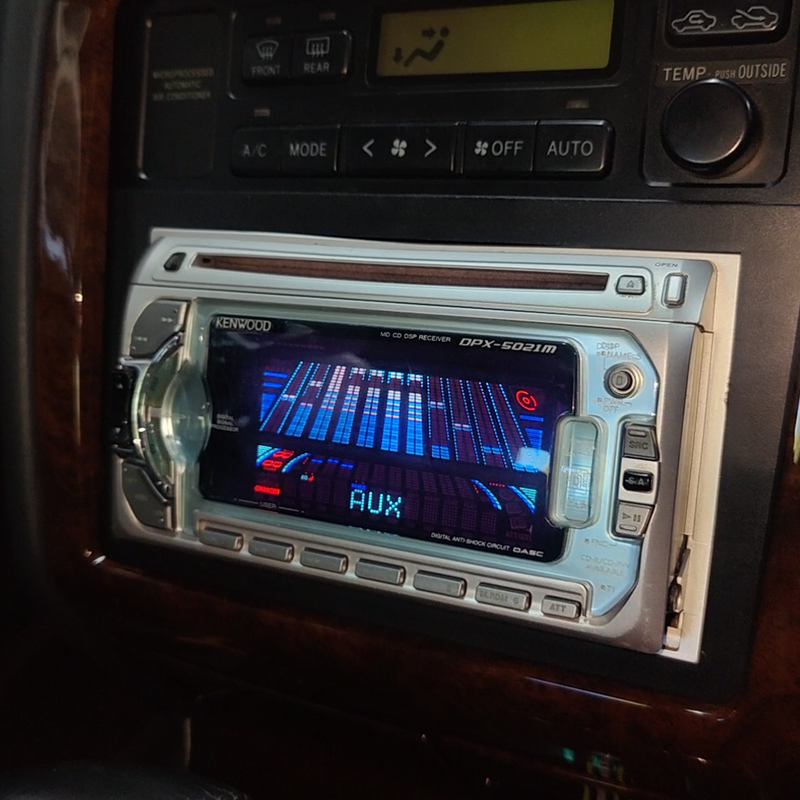

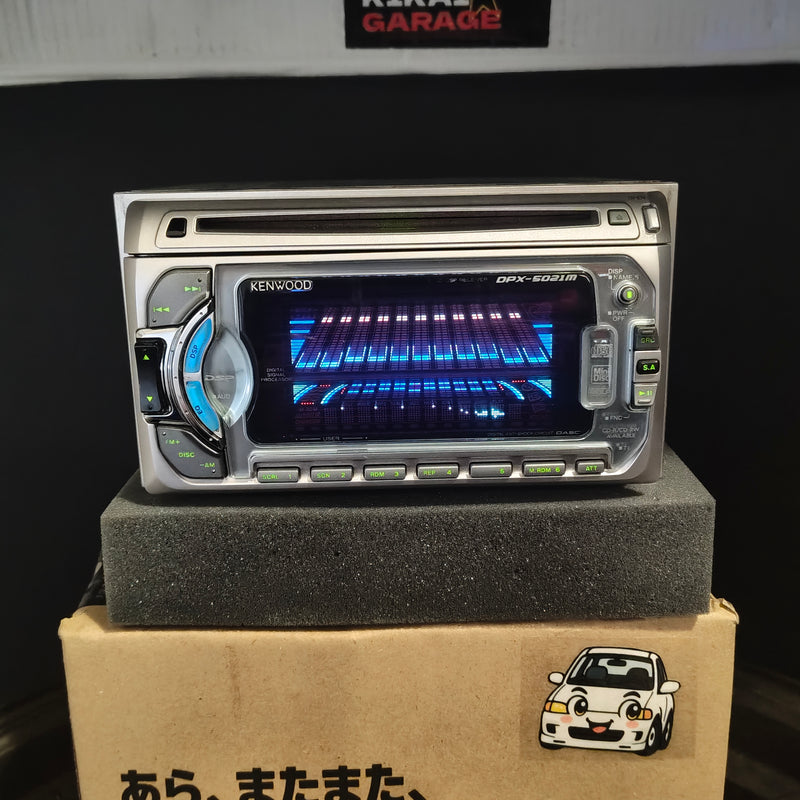

The Kenwood DPX-5021M is a double-DIN receiver with MiniDisc and CD transports and an FM/AM tuner. The manual carries publication number B64-1939-00.

Both transports use a GaAlAs laser diode at 780 nm. The MiniDisc mechanism runs at 400 -> 900 rpm under constant linear velocity and the CD mechanism at 500 -> 200 rpm, the CD section feeding a 1-bit digital-to-analogue converter with eight times oversampling. Wow and flutter on both is quoted as below measurable limits.

The MiniDisc section is specified at 0.005 percent total harmonic distortion at 1 kHz, against 0.01 percent for the CD section in the same chassis. This ordering, with the MiniDisc transport measuring lower distortion than the CD transport beside it, recurs across the Kenwood MD models in this archive.

Output is rated at 29W x 4 into 4 ohms at 1 kHz and 10 percent THD, with a maximum of 47W x 4. The pre-out delivers 1.5V into 10 kohm with an output impedance of 600 ohm or less. These figures match the DPX-5300M and the DPX-6021M.

The supplied parts list covers the power harness and mounting hardware only. No remote control is listed.

DPX-5021M SPECIFICATIONS
Media	MiniDisc and CD
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 40 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu
MD section	GaAlAs laser diode (780 nm), 400 -> 900 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 20 Hz -> 20 kHz (plus or minus 1 dB), THD 0.005% (1 kHz), S/N 90 dB (1 kHz), dynamic range 90 dB, stereo separation 85 dB
CD section	GaAlAs laser diode (780 nm), 8x oversampling digital filter, 1-bit D/A converter, 500 -> 200 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 93 dB (1 kHz), dynamic range 93 dB, stereo separation 85 dB
Audio section	Maximum output 47W x 4, rated output 29W x 4 (4 ohm, 1 kHz, 10% THD), pre-out level 1.5V/10 kohm (FM), pre-out impedance 600 ohm or less
Supplied parts	Power harness, truss screws M5 x 6 mm (six), flat screws M5 x 7 mm (six), sems screw M4 x 8 mm (one). No remote control supplied
Electrical	14.4V (11 -> 16V), maximum current draw 10A
Form factor	Double-DIN, mounting dimensions 178 x 100 x 155 mm, mass 2.6 kg
Source	Kenwood owner's manual, publication B64-1939-00
