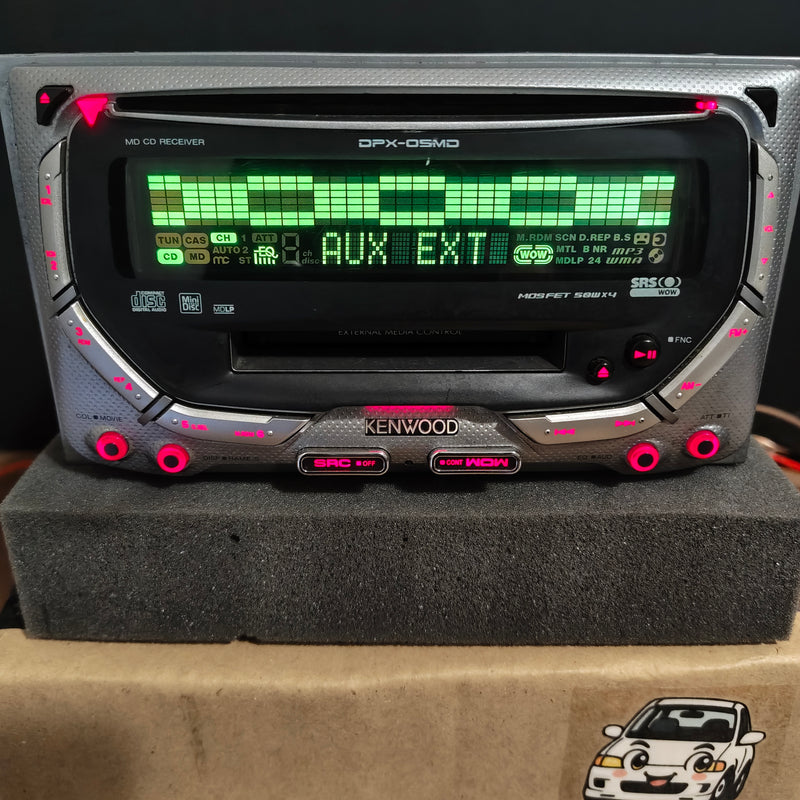

Kenwood DPX-05MD

The Kenwood DPX-05MD is a double-DIN receiver with CD and MiniDisc transports and an FM/AM tuner. It is documented alongside the DPX-04 and the DPX-05MDB in publication B64-2859-00, with a separate specification page for each. The DPX-05MDB is the same unit in a different finish and shares this specification page.

Both transports use a GaAlAs laser diode with an eight times oversampling digital filter and a 1-bit digital-to-analogue converter. The CD mechanism runs at 500 -> 200 rpm under constant linear velocity, the MiniDisc mechanism at 450 -> 950 rpm. Wow and flutter on both is quoted as below measurable limits.

The CD section is specified at 100 dB signal-to-noise at 1 kHz, 7 dB higher than the CD transport in the cassette-equipped DPX-04 documented in the same manual, though both are quoted at the same 0.01 percent distortion and 93 dB dynamic range. The MiniDisc section returns 90 dB signal-to-noise and 90 dB dynamic range.

Output is rated at 30W x 4 into 4 ohms at 1 kHz and 10 percent THD, with a maximum of 50W x 4. Unlike the DPX-04 page, this specification lists a pre-out, at 1.8V into 10 kohm with an output impedance of 600 ohm or less. The supplied parts list covers the power harness and mounting hardware only, with no remote control.

DPX-05MD SPECIFICATIONS
Media	CD and MiniDisc
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 30 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu
CD section	GaAlAs laser diode, 8x oversampling digital filter, 1-bit D/A converter, 500 -> 200 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 100 dB (1 kHz), dynamic range 93 dB, stereo separation 85 dB
MD section	GaAlAs laser diode, 8x oversampling digital filter, 1-bit D/A converter, 450 -> 950 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 20 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 90 dB (1 kHz), dynamic range 90 dB, stereo separation 85 dB
Audio section	Maximum output 50W x 4, rated output 30W x 4 (4 ohm, 1 kHz, 10% THD), pre-out level 1.8V/10 kohm (FM), pre-out impedance 600 ohm or less
Supplied parts	Power harness, truss screws M5 x 6 mm (six), flat screws M5 x 7 mm (six), sems screw M4 x 8 mm (one). No remote control supplied
Electrical	14.4V (11 -> 16V), maximum current draw 10A
Form factor	Double-DIN, mounting dimensions 178 x 100 x 155 mm, mass 2.1 kg
Source	Kenwood owner's manual, publication B64-2859-00, covering DPX-04, DPX-05MD and DPX-05MDB
