Kenwood DPX-04

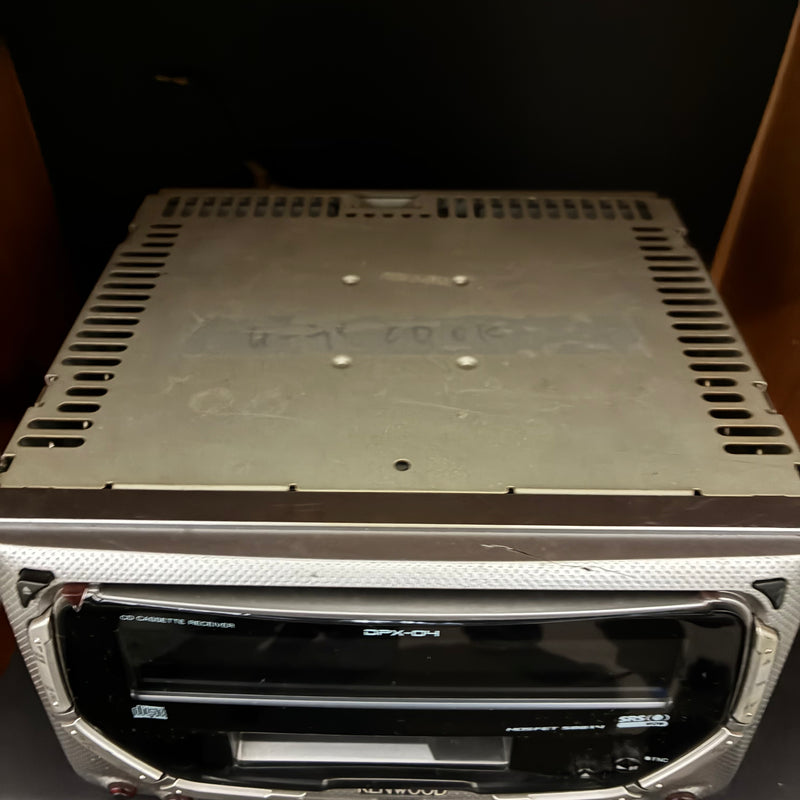

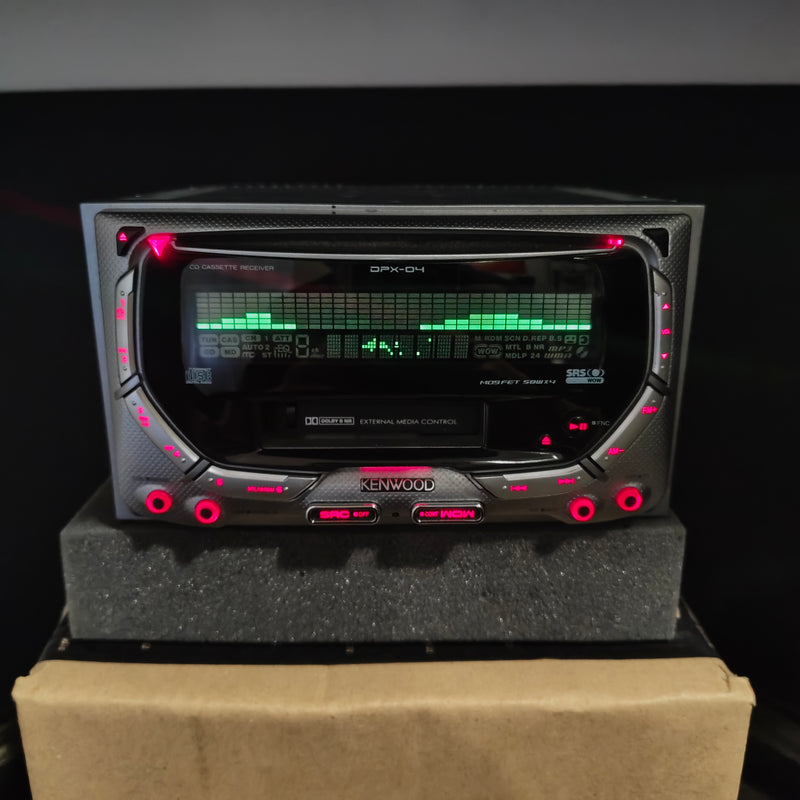

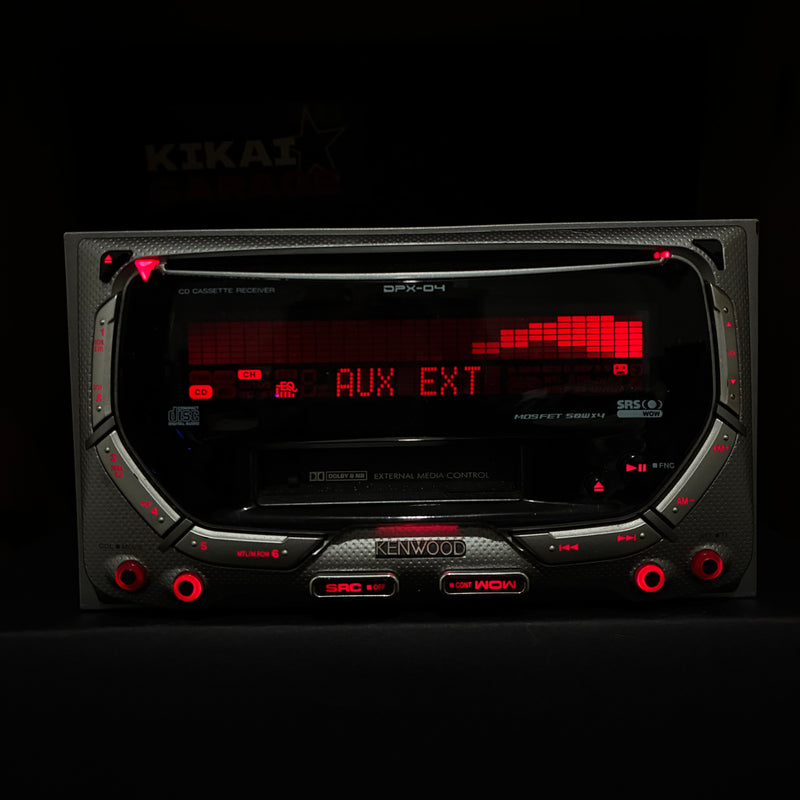

The Kenwood DPX-04 is a double-DIN receiver pairing a cassette deck with a CD transport and an FM/AM tuner. It is documented alongside the DPX-05MD and DPX-05MDB in publication B64-2859-00, with a separate specification page for each. The DPX-04 carries no MiniDisc transport; the cassette deck occupies that position in the range.

The cassette deck runs at 4.76 cm/sec with wow and flutter of 0.1 percent WRMS and a frequency response of 40 Hz -> 20 kHz within plus or minus 3 dB at the 70 microsecond equalisation. Dolby B noise reduction is provided, and the manual quotes signal-to-noise as 50 dB with it off and 60 dB with it on. Dolby C is not listed for this model, unlike the DPX-510 elsewhere in this archive.

The CD transport uses a GaAlAs laser diode running 500 -> 200 rpm under constant linear velocity, feeding a 1-bit digital-to-analogue converter with an eight times oversampling digital filter. Signal-to-noise is quoted at 93 dB at 1 kHz, against 100 dB for the CD transport in the DPX-05MD documented in the same manual.

Output is rated at 30W x 4 into 4 ohms at 1 kHz and 10 percent THD, with a maximum of 50W x 4. No pre-out level or impedance is listed in the DPX-04 specification, where the DPX-05MD page quotes 1.8V into 10 kohm. The supplied parts list covers the power harness and mounting hardware only, with no remote control.

DPX-04 SPECIFICATIONS
Media	Cassette with Dolby B noise reduction, and CD
FM tuner	76.0 -> 90.0 MHz in 100 kHz steps. Usable sensitivity 9.3 dBf (0.8 uV/75 ohm), S/N 50 dB sensitivity 15.2 dBf (1.6 uV/75 ohm), frequency response 30 Hz -> 15 kHz (plus or minus 3.0 dB), S/N 75 dB mono, selectivity 80 dB or more (plus or minus 400 kHz), stereo separation 30 dB (1 kHz)
AM tuner	522 -> 1629 kHz in 9 kHz steps, sensitivity 28 dBu
CD section	GaAlAs laser diode, 8x oversampling digital filter, 1-bit D/A converter, 500 -> 200 rpm constant linear velocity, wow and flutter below measurable limits, frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), THD 0.01% (1 kHz), S/N 93 dB (1 kHz), dynamic range 93 dB, stereo separation 85 dB
Cassette section	Tape speed 4.76 cm/sec, wow and flutter 0.1% (WRMS), frequency response 40 Hz -> 20 kHz (plus or minus 3 dB, 70 microsecond), stereo separation 35 dB (1 kHz), S/N 50 dB with Dolby B off, 60 dB with Dolby B on
Audio section	Maximum output 50W x 4, rated output 30W x 4 (4 ohm, 1 kHz, 10% THD). No pre-out specified for this model
Supplied parts	Power harness, truss screws M5 x 6 mm (six), flat screws M5 x 7 mm (six), sems screw M4 x 8 mm (one). No remote control supplied

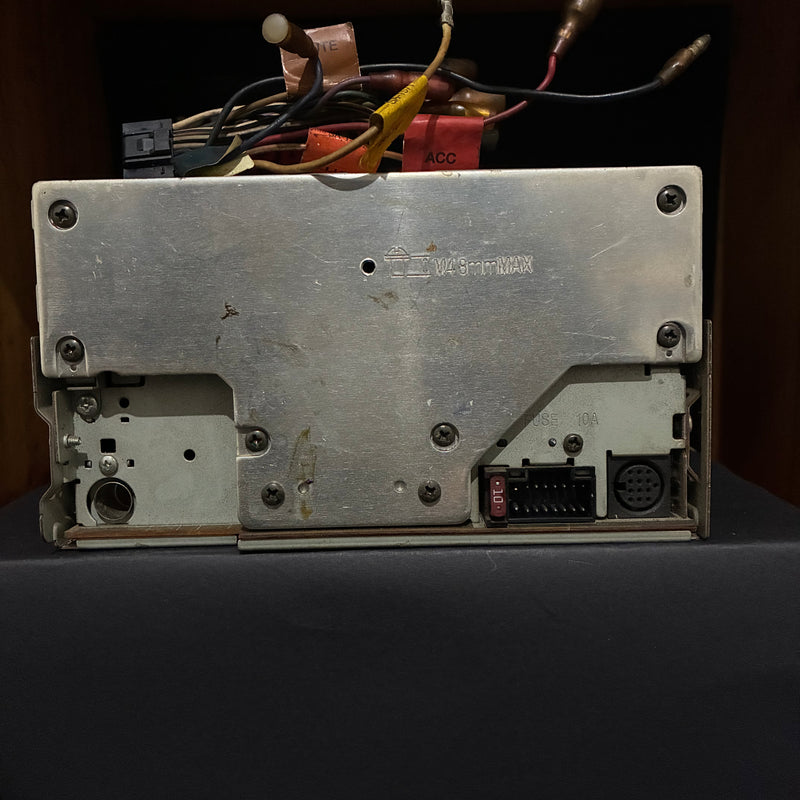

Electrical	14.4V (11 -> 16V), maximum current draw 10A

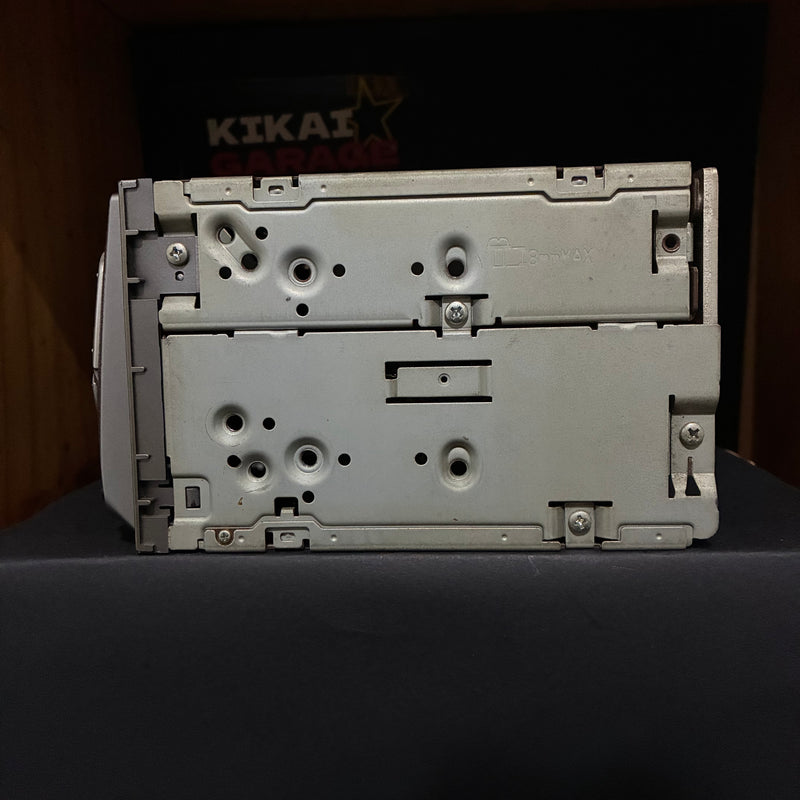

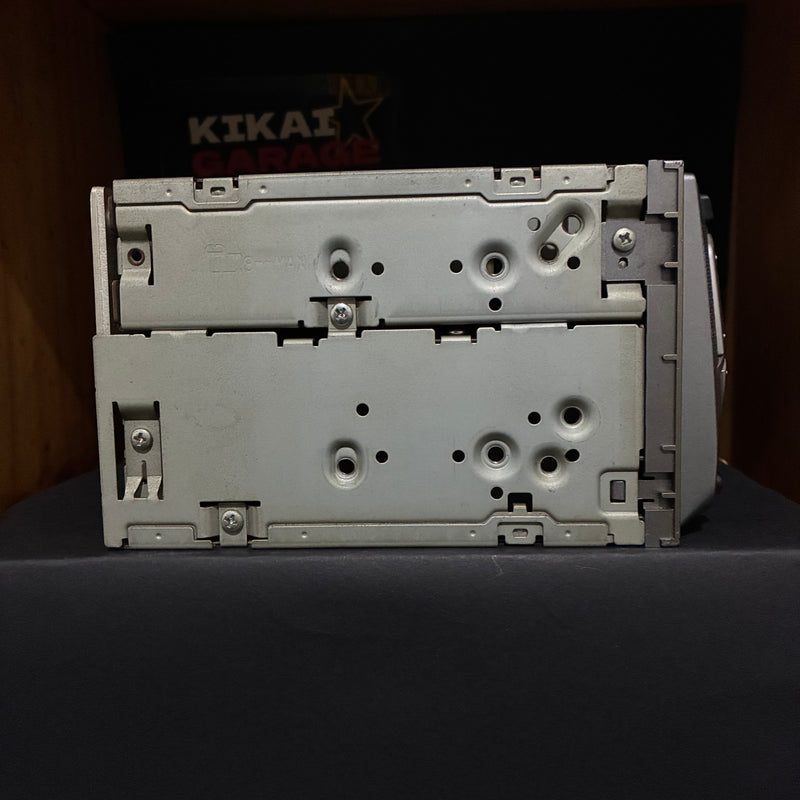

Form factor	Double-DIN, mounting dimensions 178 x 100 x 155 mm, mass 2.3 kg
Source	Kenwood owner's manual, publication B64-2859-00, covering DPX-04, DPX-05MD and DPX-05MDB
