Carrozzeria (Pioneer) FH-P900MD
24 September 2026

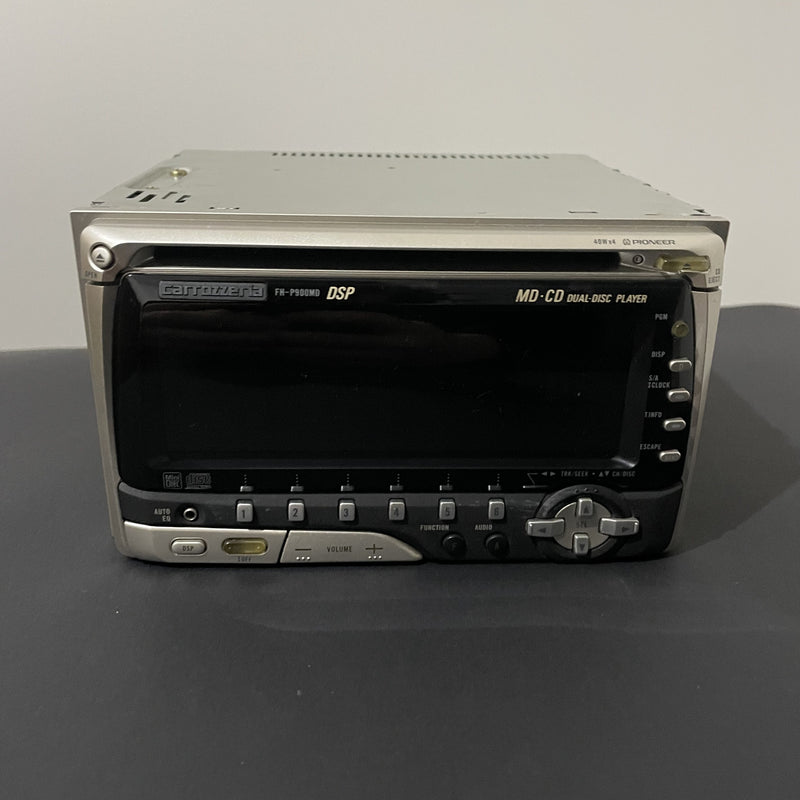

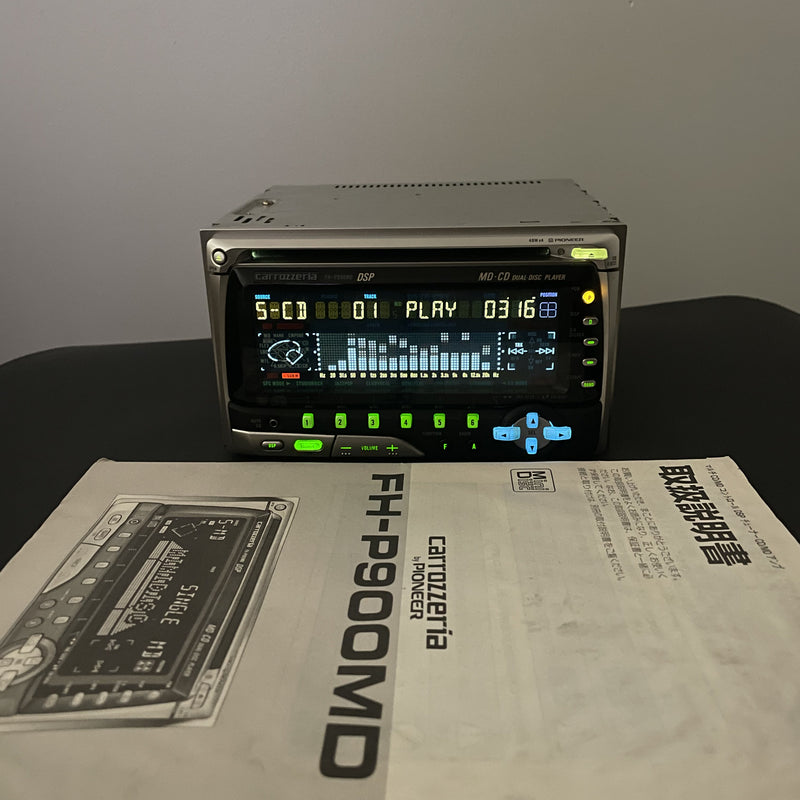

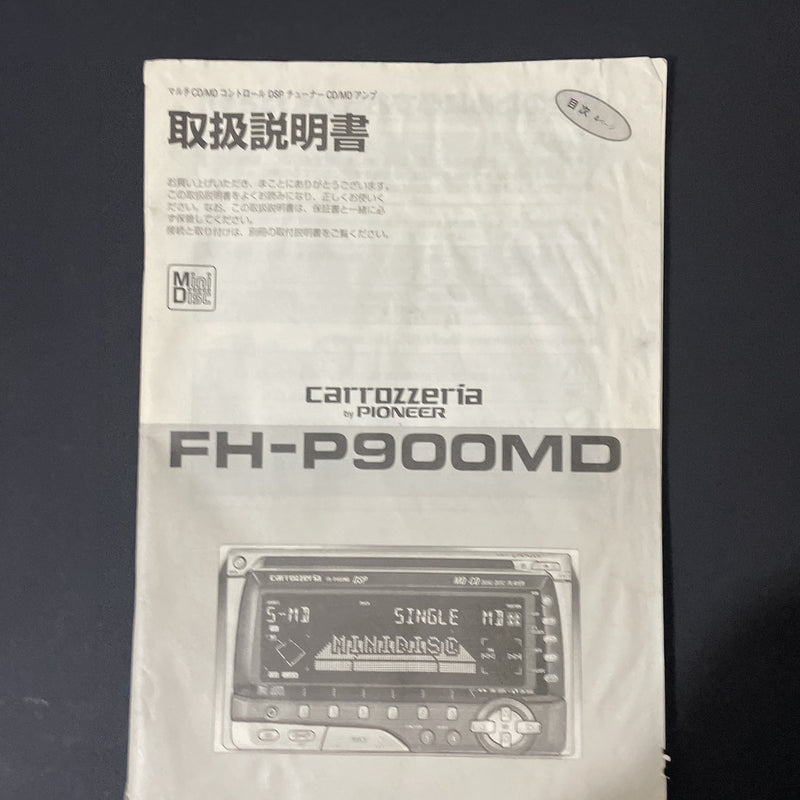

The Carrozzeria FH-P9000MD is a double-DIN main unit with CD and MiniDisc transports, an FM/AM tuner and a separate FM multiplex tuner. Pioneer's own description on the manual cover is FM文字多重内蔵マルチCD/MDコントロール DSPチューナーCD/MDアンプ, identifying the built-in FM text multiplex receiver, multi-CD and MD control, and the DSP section.
The FM multiplex tuner is a distinct section in the specification, covering 76.1 -> 89.9 MHz and using the DARC system. This carries FM text broadcast data, and the manual documents displaying FM programme information on a dedicated screen along with an automatic aerial setting specific to multiplex reception.
Both transports are specified with 44.1 kHz sampling and 16-bit linear quantisation. The CD section returns 96 dB signal-to-noise on the IHF-A network with 94 dB dynamic range across 5 -> 20,000 Hz, and the MiniDisc section 90 dB signal-to-noise with 91 dB dynamic range across 20 -> 20,000 Hz.
The audio section carries a 13-band equaliser at 50, 80, 125, 200, 315, 500, 800 Hz and 1.3, 2, 3.2, 5, 8 and 12.5 kHz, adjustable across plus or minus 12 dB. A subwoofer crossover is provided at 50, 80 or 125 Hz with a fixed 18 dB per octave slope and plus or minus 12 dB of gain. The manual documents an auto-equalising procedure, and a microphone is listed among the supplied parts for that purpose, along with a remote control and two R03 cells.
Output is rated at 22W x 4 across 50 -> 15,000 Hz at 5 percent distortion, with a maximum of 45W x 4. The pre-out reaches 2V into an output impedance of 1 kohm. At 3.0 kg excluding the cord unit this is among the heavier units recorded here.
| FH-P9000MD SPECIFICATIONS | |
|---|---|
| Media | CD and MiniDisc, with multi-CD and MD changer control |
| FM tuner | 76.1 -> 89.9 MHz. Usable sensitivity 11 dBf (1.0 uV/75 ohm, mono, S/N 30 dB), S/N 50 dB sensitivity 16 dBf (1.7 uV/75 ohm, mono), S/N 70 dB (IHF-A network), THD 0.3% (65 dBf input, 1 kHz, stereo), frequency response 30 -> 15,000 Hz (plus or minus 3 dB), stereo separation 40 dB (65 dBf input, 1 kHz), usable selectivity 70 dB (2ACA) |
| FM multiplex tuner | 76.1 -> 89.9 MHz, DARC system |
| AM tuner | 522 -> 1,629 kHz, usable sensitivity 18 uV (S/N 20 dB), effective selectivity 50 dB (plus or minus 9 kHz) |
| CD section | Compact disc digital audio system, 44.1 kHz sampling, 16-bit linear quantisation, frequency response 5 -> 20,000 Hz (plus or minus 1 dB), S/N 96 dB (1 kHz, IHF-A network), dynamic range 94 dB (1 kHz), 2 channels stereo |
| MD section | MiniDisc digital audio system, 44.1 kHz sampling, 16-bit linear quantisation, frequency response 20 -> 20,000 Hz (plus or minus 1 dB), S/N 90 dB (1 kHz, IHF-A network), dynamic range 91 dB (1 kHz), 2 channels stereo |

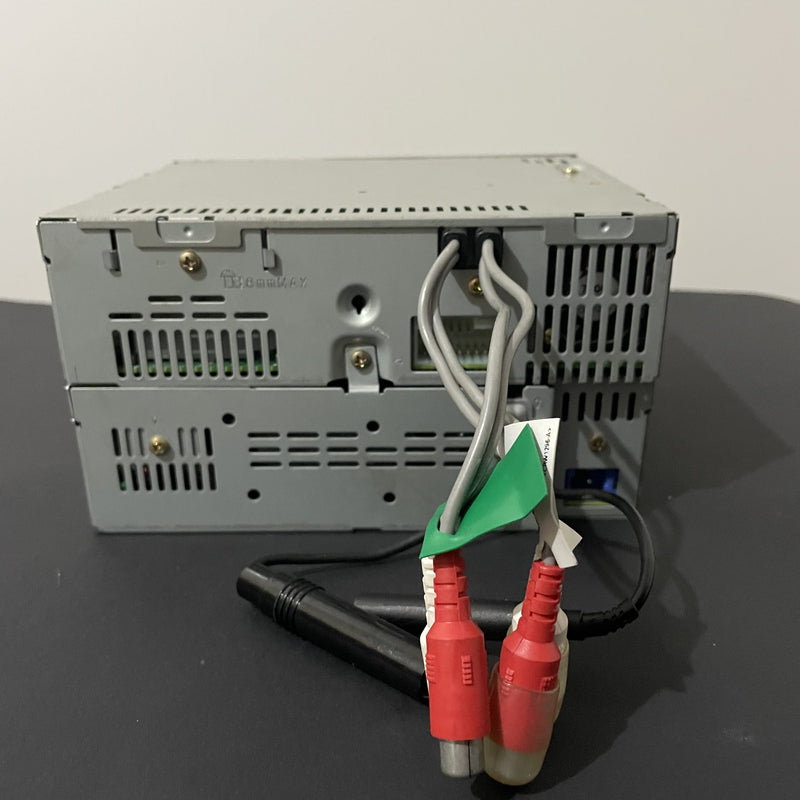

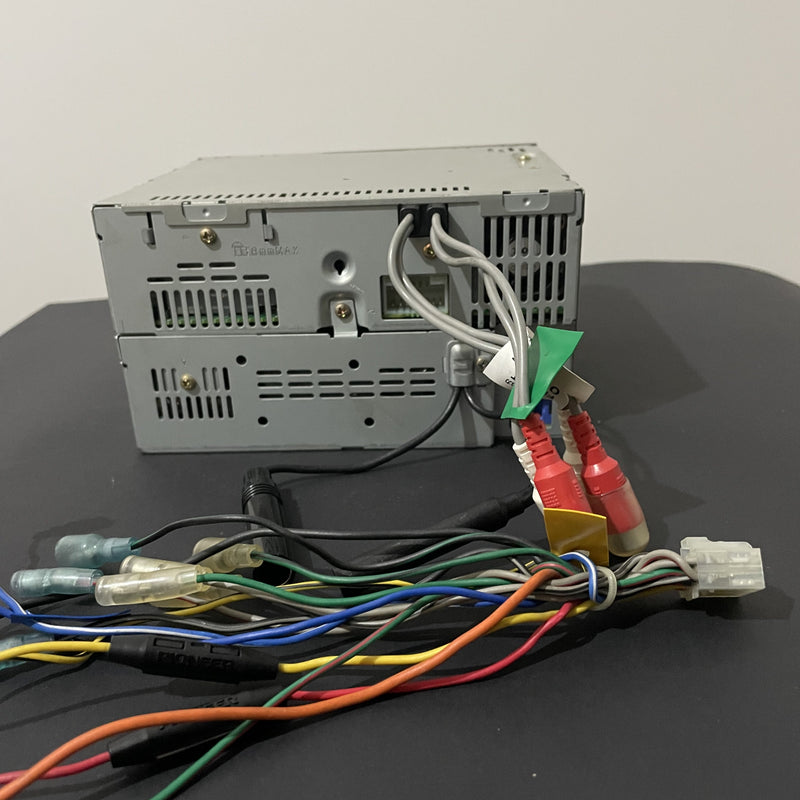

| Audio section | Maximum output 45W x 4, rated output 22W x 4 (50 -> 15,000 Hz, 5%), load impedance 4 ohm (4 to 8 ohm usable), pre-out maximum output level 2V, output impedance 1 kohm, maximum current draw 10.0A |
| Equaliser | 13 bands at 50, 80, 125, 200, 315, 500, 800 Hz, 1.3, 2, 3.2, 5, 8, 12.5 kHz, adjustment range plus or minus 12 dB |
| Subwoofer crossover | 50, 80 or 125 Hz, slope 18 dB/oct, gain plus or minus 12 dB |
| Loudness contour | 5 dB (100 Hz) and 4 dB (10 kHz) at minus 30 dB volume |
| Supplied parts | Remote control, R03 cells (two), microphone for auto-equalising, cord unit, mounting screws, manuals and warranty documents |
| Electrical | DC 14.4V (10.8 -> 15.1V usable), negative earth |

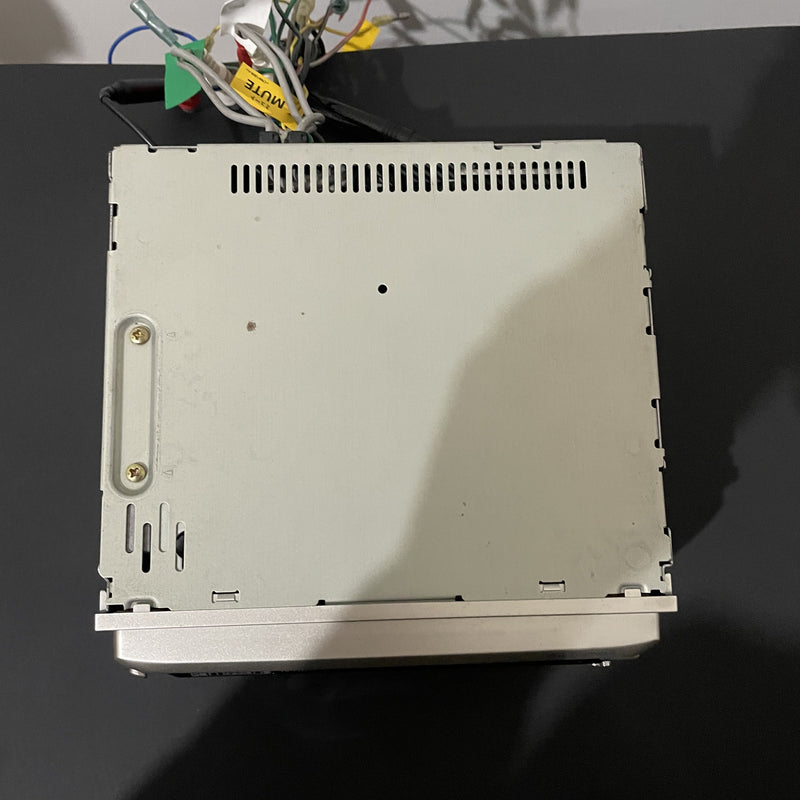

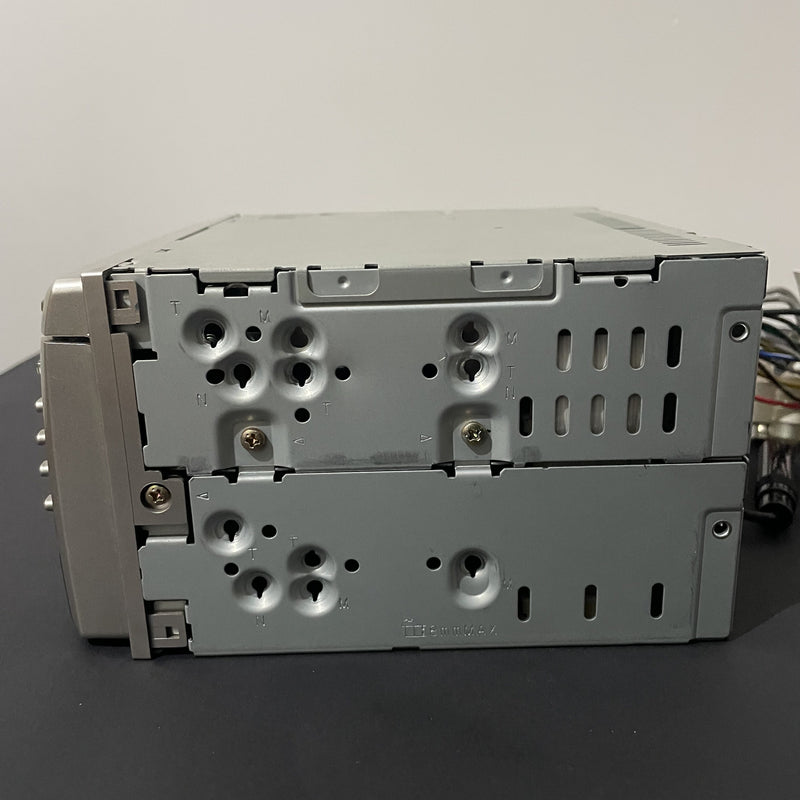

| Form factor | Double-DIN, 178 x 100 x 160 mm with a 169 x 94 x 18 mm nose, mass 3.0 kg excluding the cord unit |
| Source | Pioneer Carrozzeria owner's manual for the FH-P9000MD |
