Carrozzeria (Pioneer) FH-P070MD
24 September 2026

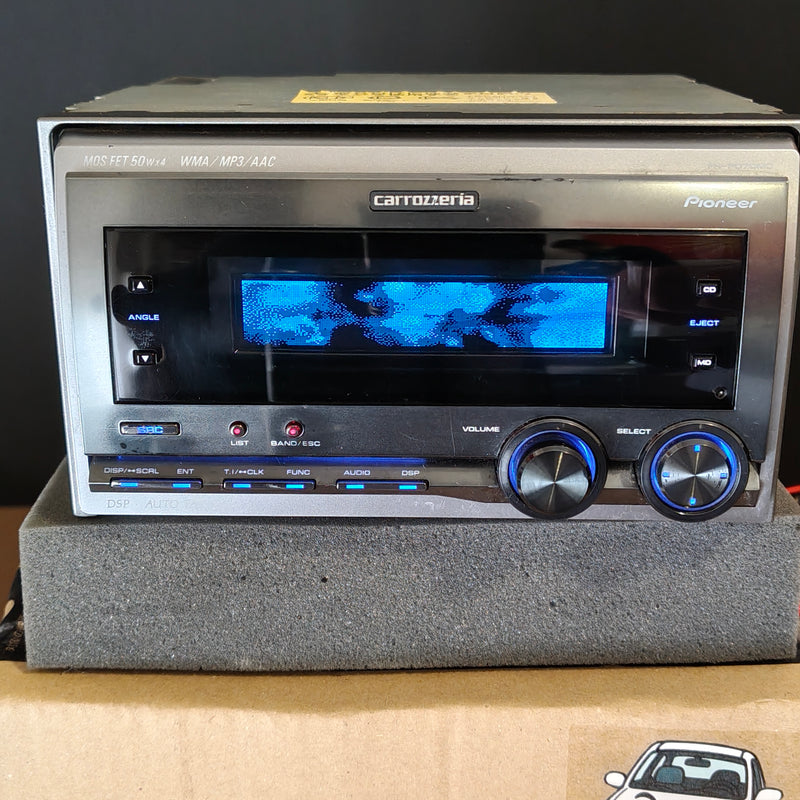

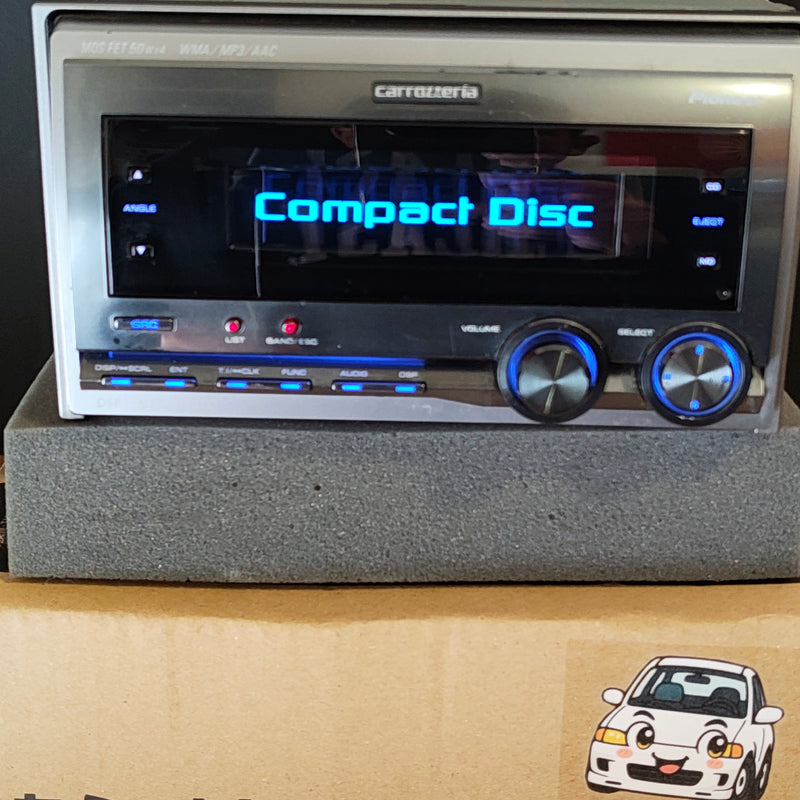

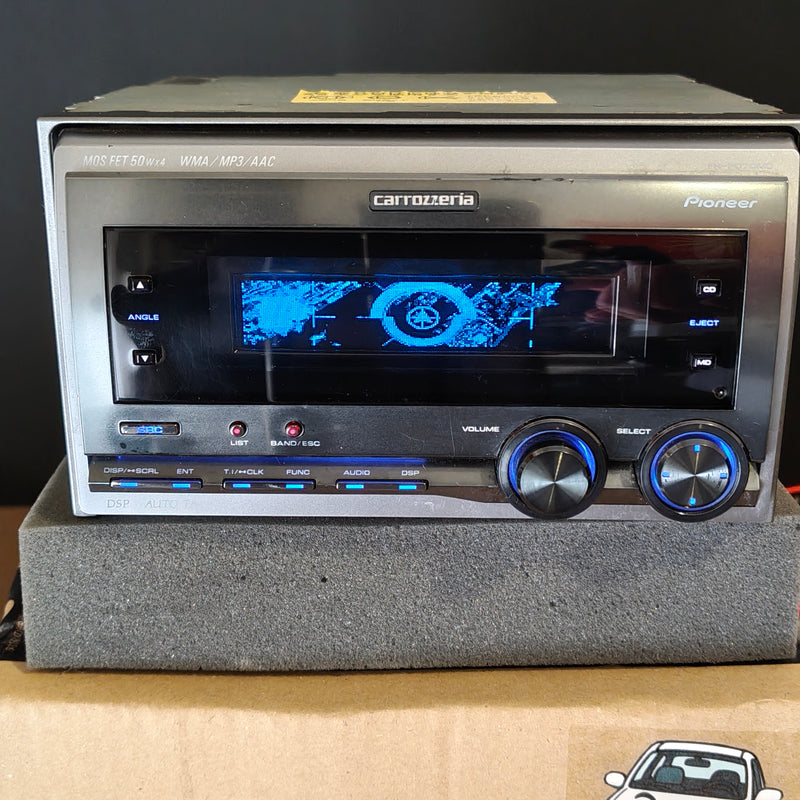

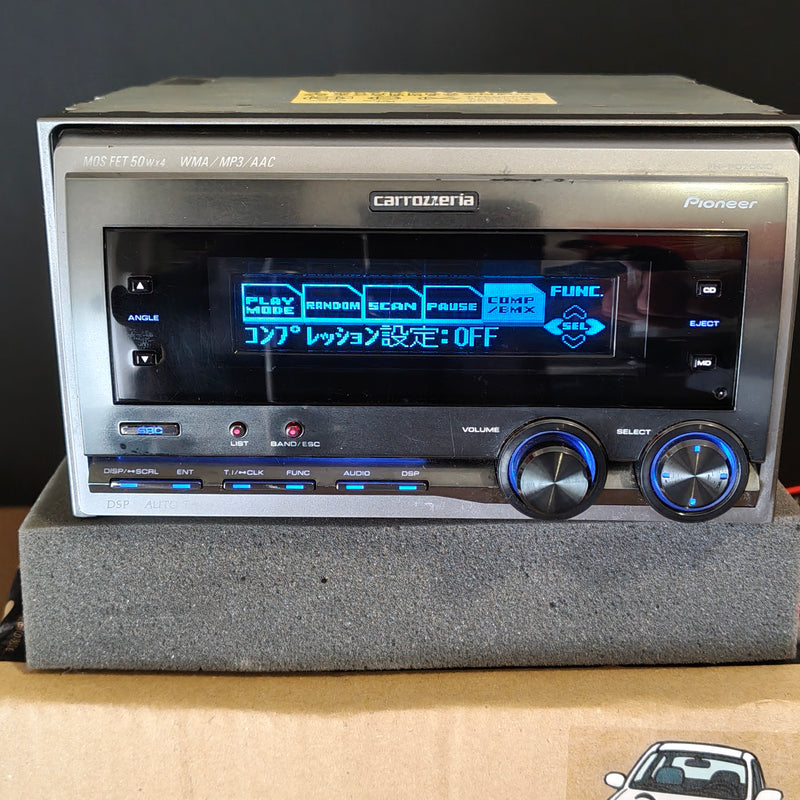

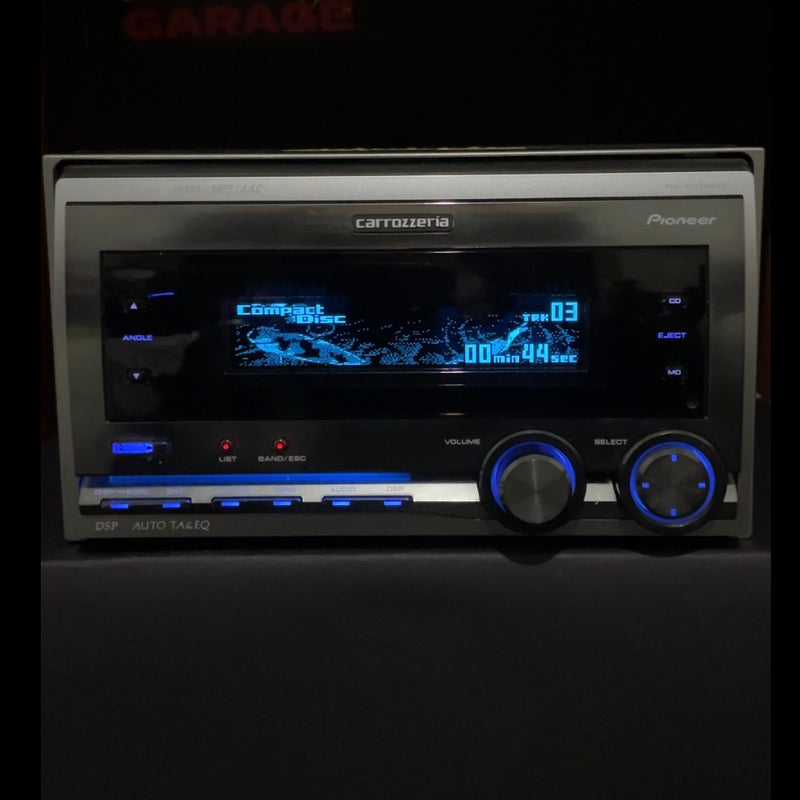

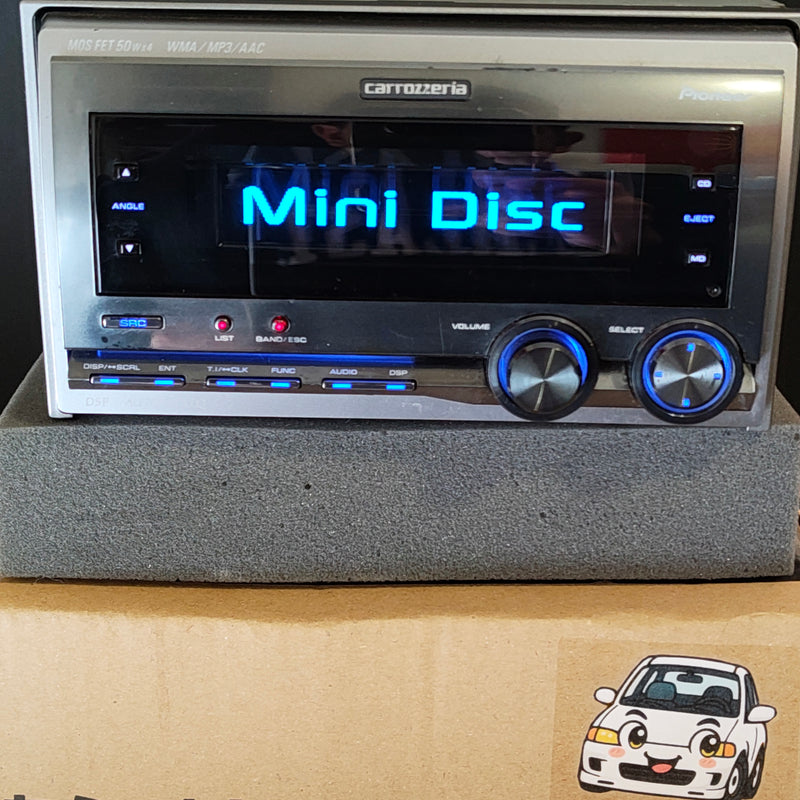

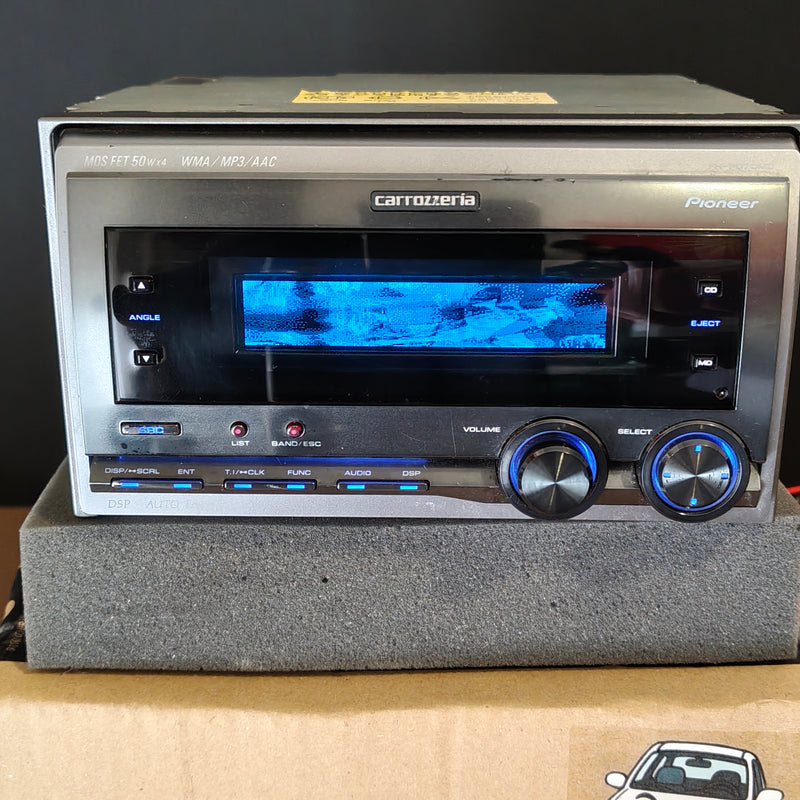

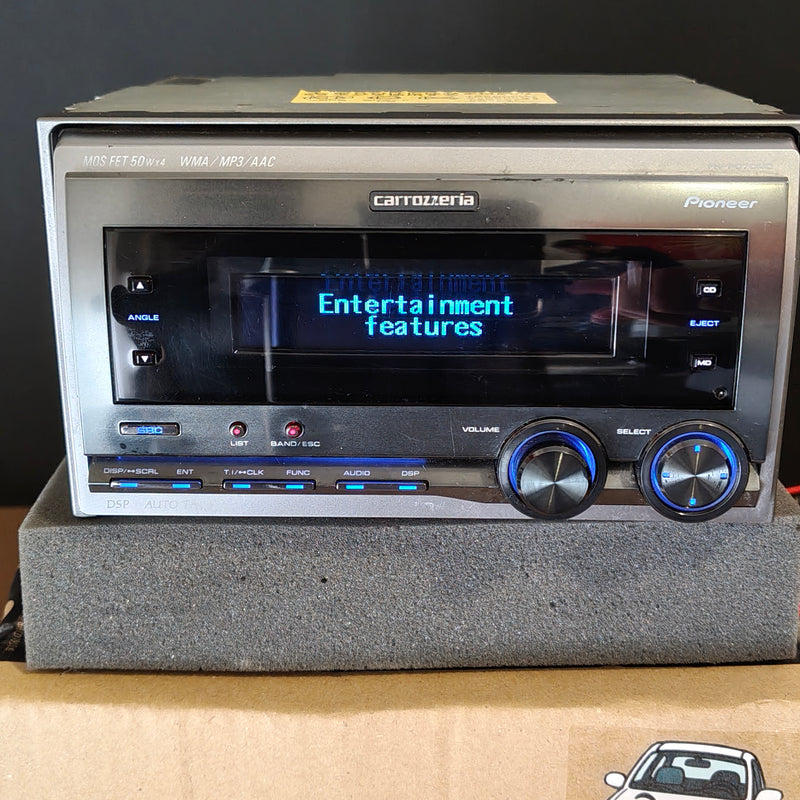

The Carrozzeria FH-P070MD is a double-DIN main unit with MiniDisc and CD transports, an FM/AM tuner and a DSP section. Pioneer's description on the manual cover is MD/CD/チューナー・WMA/MP3/AAC/WAV 対応 DSP メインユニット, listing four compressed formats. It is the broadest decoder set of any unit recorded in this archive.
The CD transport decodes MP3 to MPEG-1 and MPEG-2 Audio Layer-3, WMA to versions 7, 7.1, 8 and 9 in two-channel audio, AAC in MPEG-4 form limited to files encoded by iTunes, and WAV in Linear-PCM and MS ADPCM. Both transports are specified with 44.1 kHz sampling and 16-bit linear quantisation. The CD section returns 94 dB signal-to-noise on the IHF-A network with 94 dB dynamic range across 5 -> 20,000 Hz, and the MiniDisc section 90 dB on both counts across 20 -> 20,000 Hz.
The audio section carries a 13-band equaliser at 50, 80, 125, 200, 315, 500, 800 Hz and 1.25, 2, 3.15, 5, 8 and 12.5 kHz, adjustable across plus or minus 12 dB. The network high-pass filter operates at 50, 63, 80, 100, 125, 160 or 200 Hz with a slope of flat, 6 or 12 dB per octave and gain from minus 24 dB to 0 dB. The subwoofer output covers the same seven frequency points with a slope of 6, 12 or 18 dB per octave, gain from minus 24 dB to plus 6 dB, and selectable normal or reverse phase. Both filter sections offer more frequency points than any other Carrozzeria unit here.
Output is rated at 22W x 4 across 50 -> 15,000 Hz at 5 percent THD with a maximum of 50W x 4. The pre-out reaches 2.2V into 1 kohm, the highest Carrozzeria pre-out recorded here. Supplied parts include a remote control, a CR2025 lithium cell and a microphone for acoustic measurement.
Its FM tuner is quoted at 8 dBf usable sensitivity with 45 dB stereo separation and 75 dB signal-to-noise, the strongest tuner figures of the Carrozzeria units in this archive.
| FH-P070MD SPECIFICATIONS | |
|---|---|
| Media | MiniDisc and CD, with MP3 (MPEG-1 and 2 Audio Layer-3), WMA (versions 7, 7.1, 8, 9, two-channel audio), AAC (MPEG-4, iTunes encoded files only) and WAV (Linear-PCM, MS ADPCM) decoding |
| FM tuner | 76.1 -> 89.9 MHz. Usable sensitivity 8 dBf (0.7 uV/75 ohm, mono, S/N 30 dB), S/N 50 dB sensitivity 10 dBf (0.9 uV/75 ohm, mono), S/N 75 dB (IHF-A network), THD 0.3% stereo and 0.05% mono (65 dBf input, 1 kHz), frequency response 30 -> 15,000 Hz (plus or minus 3 dB), stereo separation 45 dB (65 dBf input, 1 kHz) |
| AM tuner | 522 -> 1,629 kHz (9 kHz), usable sensitivity 18 uV (S/N 20 dB), S/N 67 dB (IHF-A network) |
| CD section | Compact disc digital audio system, 44.1 kHz sampling, 16-bit linear quantisation, frequency response 5 -> 20,000 Hz (plus or minus 1 dB), S/N 94 dB (1 kHz, IHF-A network), dynamic range 94 dB (1 kHz), 2 channels stereo |
| MD section | MiniDisc digital audio system, 44.1 kHz sampling, 16-bit linear quantisation, frequency response 20 -> 20,000 Hz (plus or minus 1 dB), S/N 90 dB (1 kHz, IHF-A network), dynamic range 90 dB (1 kHz), 2 channels stereo |
| Audio section | Maximum output 50W x 4, rated output 22W x 4 (50 -> 15,000 Hz, 5% THD), load impedance 4 ohm (4 to 8 ohm usable), pre-out maximum output level 2.2V, output impedance 1 kohm |
| Equaliser | 13 bands at 50, 80, 125, 200, 315, 500, 800 Hz, 1.25, 2, 3.15, 5, 8, 12.5 kHz, adjustment range plus or minus 12 dB |
| Network high-pass filter | 50, 63, 80, 100, 125, 160 or 200 Hz, slope flat, 6 or 12 dB/oct, gain minus 24 dB to 0 dB |
| Subwoofer output | 50, 63, 80, 100, 125, 160 or 200 Hz, slope 6, 12 or 18 dB/oct, gain minus 24 dB to plus 6 dB, phase normal or reverse |
| Loudness contour | 10 dB (100 Hz) and 6.5 dB (10 kHz) at minus 30 dB volume |
| Supplied parts | Remote control, CR2025 lithium cell, cord unit, acoustic measurement microphone, mounting screws, manuals and warranty documents |
| Electrical | DC 14.4V (10.8 -> 15.1V usable), negative earth, maximum current draw 10A |
| Form factor | Double-DIN, 178 x 100 x 161 mm with a 169 x 94 x 19 mm nose, mass 2.4 kg excluding the cord unit |
| Source | Pioneer Carrozzeria owner's manual for the FH-P070MD |
