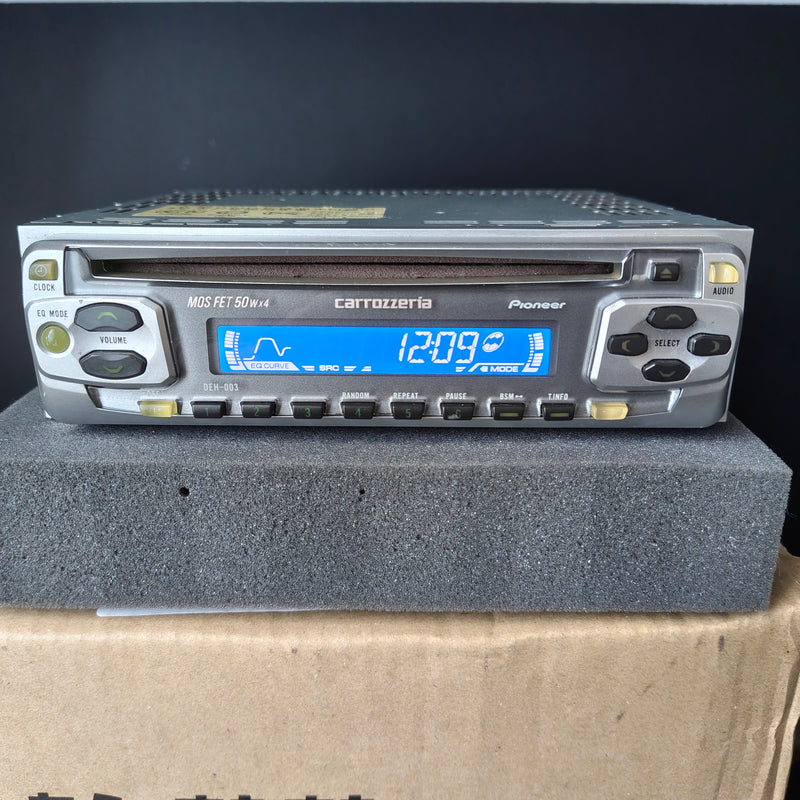

Carrozzeria (Pioneer) DEH-003
24 September 2026

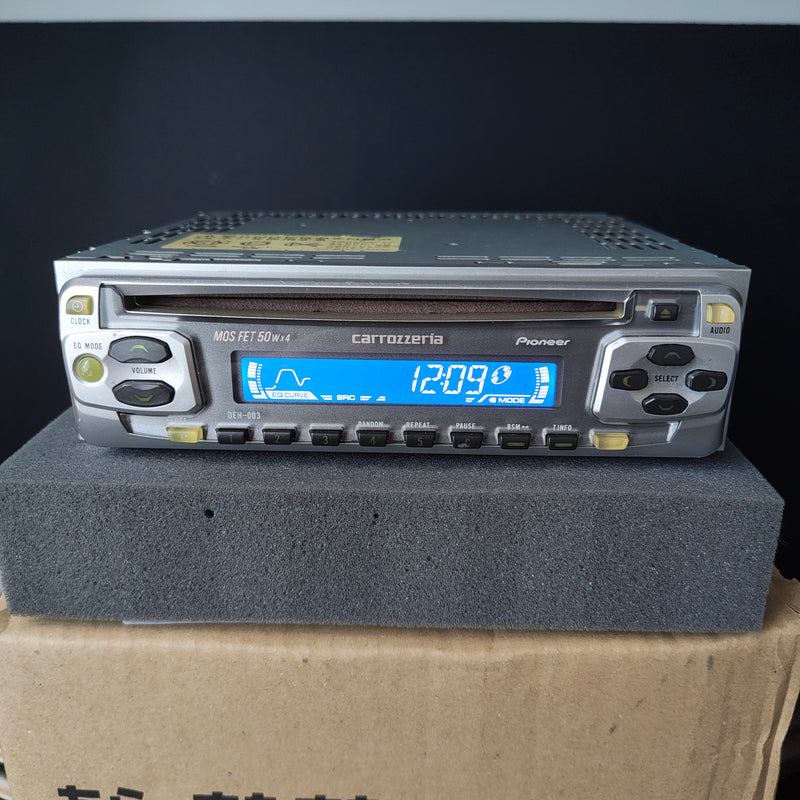

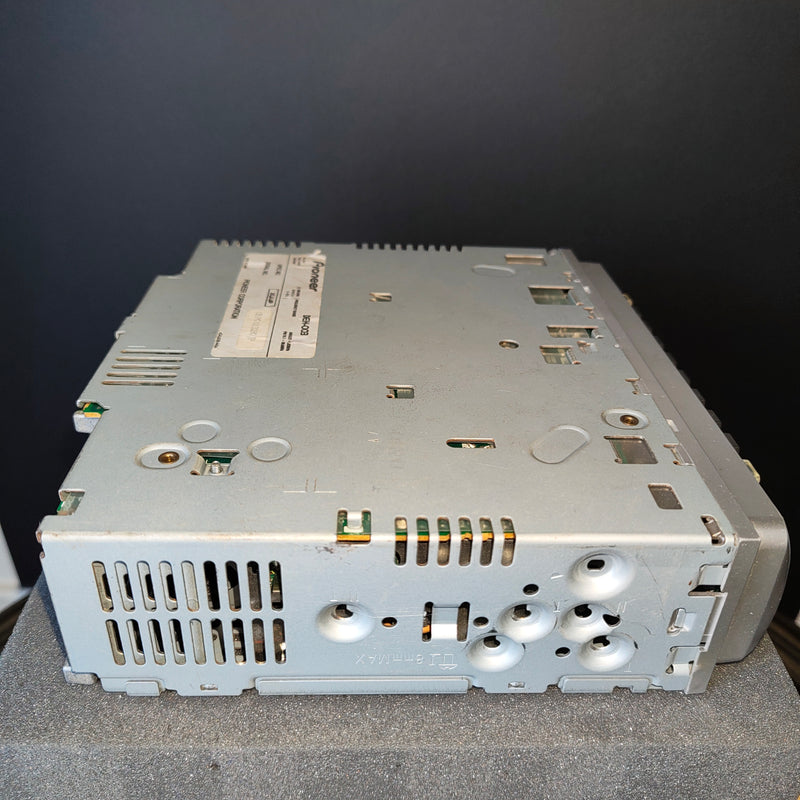

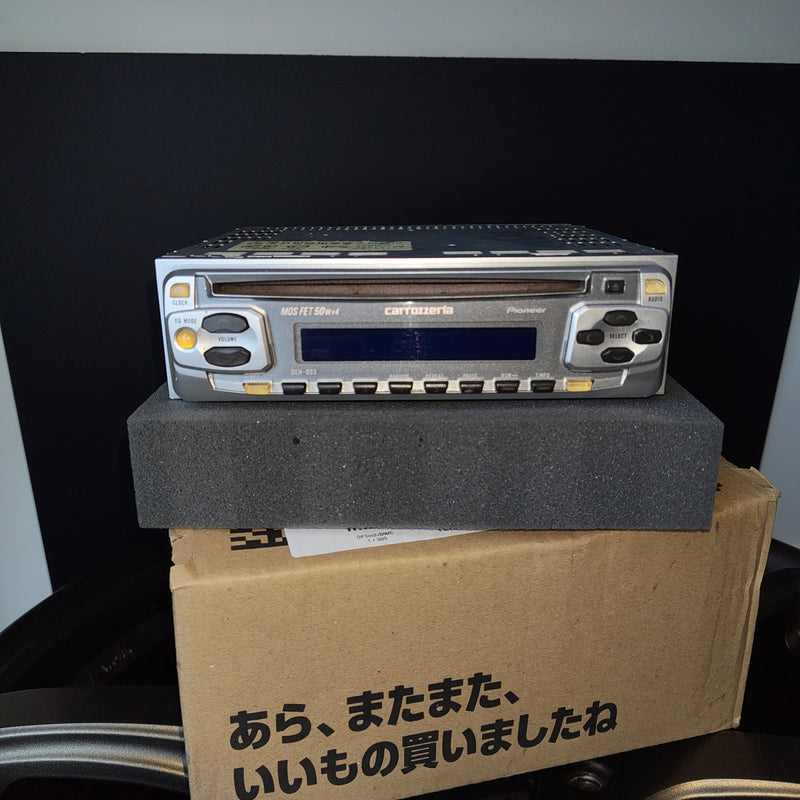

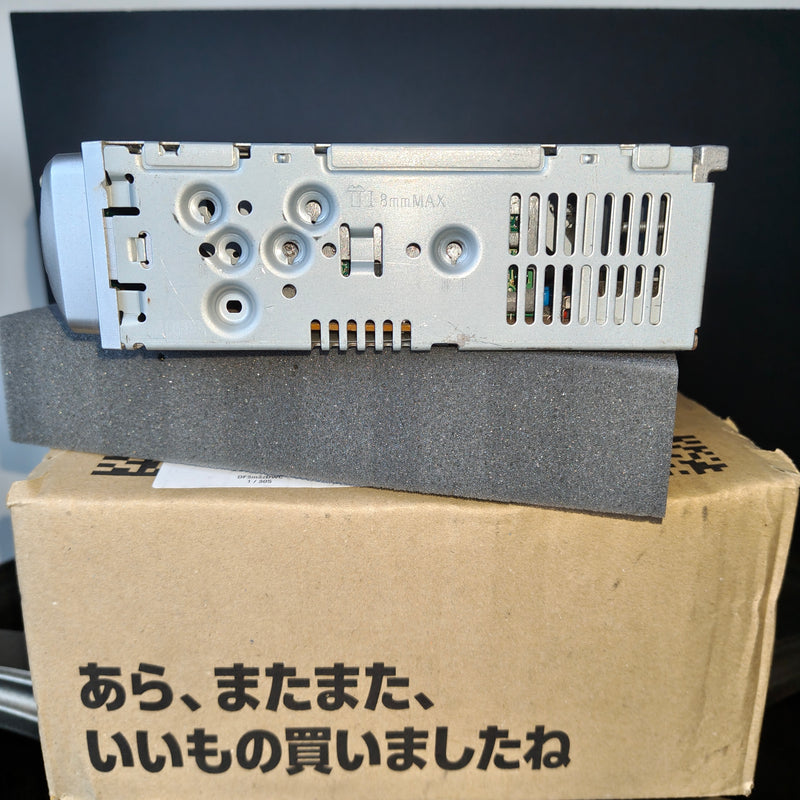

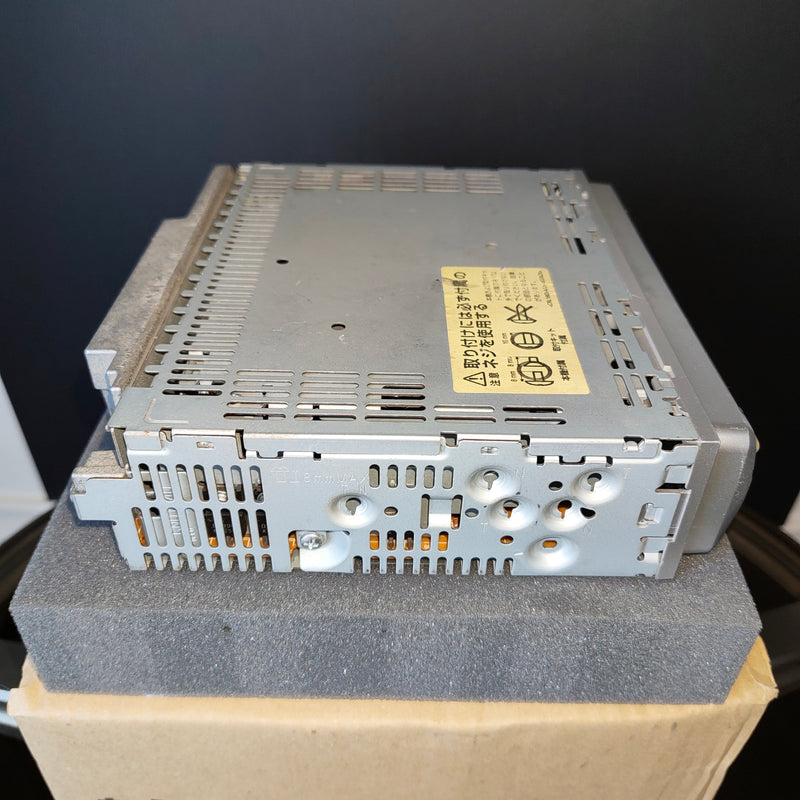

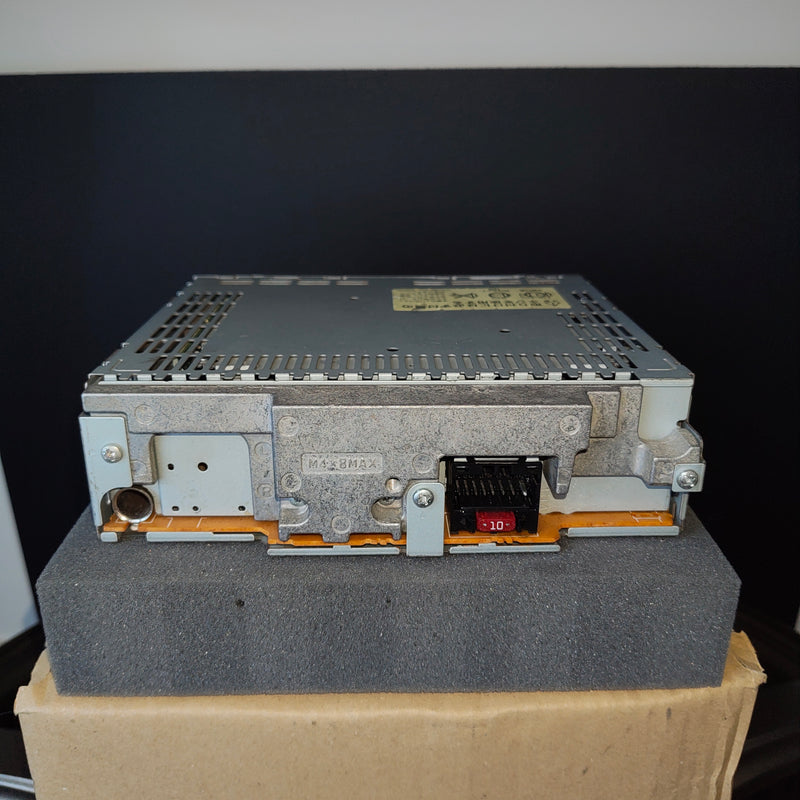

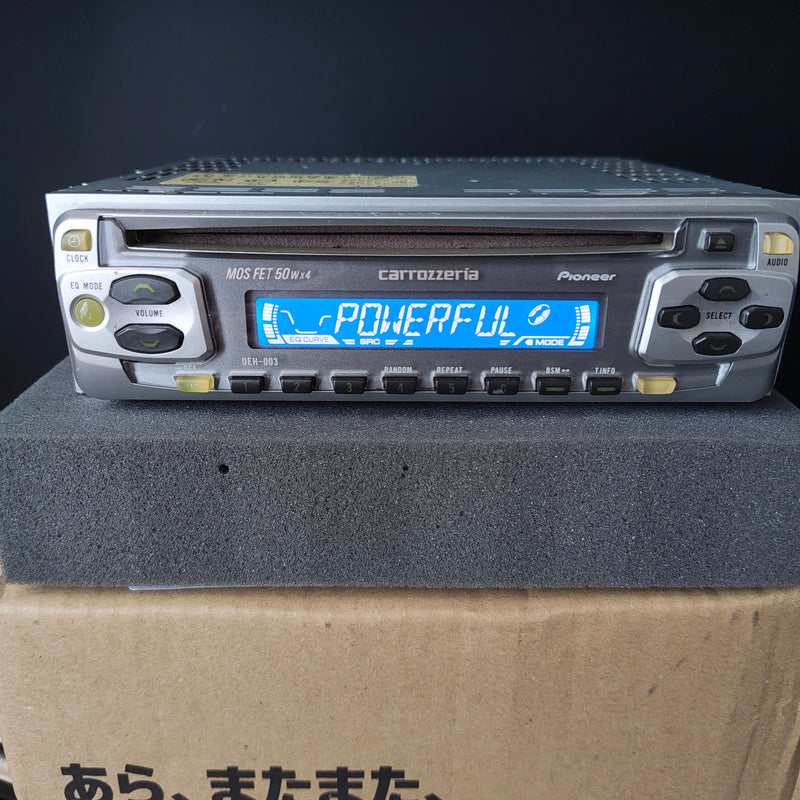

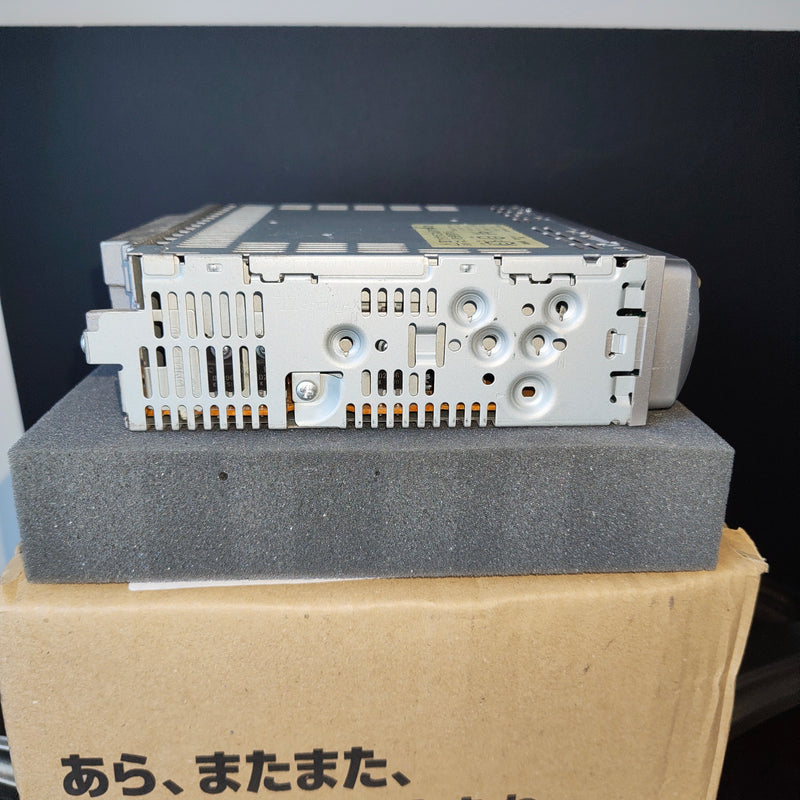

The Carrozzeria DEH-003 is a single-DIN main unit with a CD transport and an FM/AM tuner. Pioneer's description on the manual cover is CD/チューナープレーヤー. Mounting dimensions are 178 x 50 x 162 mm with a nose of 170 x 46 x 14 mm and a mass of 1.3 kg excluding the cord.
The CD section is specified with 44.1 kHz sampling and 16-bit linear quantisation, a frequency response of 5 -> 20,000 Hz within plus or minus 1 dB, signal-to-noise of 94 dB at 1 kHz on the IHF-A network and dynamic range of 92 dB. There is no MiniDisc transport and no changer control documented in this manual.
The audio section carries a three-band parametric equaliser. Each band takes a selectable centre frequency and a selectable Q factor, quoted at a 6 dB boost, with plus or minus 12 dB of adjustment. The low band covers 40, 80, 100 or 160 Hz, the middle band 200, 500 Hz, 1 kHz or 2 kHz, and the high band 3.15, 8, 10 or 12.5 kHz, each with Q factors of 0.35, 0.59, 0.95 or 1.15. This is the same equaliser structure fitted to the MEH-P515.
The loudness contour is specified at three levels, ranging from 3.5 dB at 100 Hz on the low setting to 11 dB at both 100 Hz and 10 kHz on the high setting, measured at minus 30 dB volume. Output is rated at 22W x 4 across 50 -> 15,000 Hz at 5 percent THD with a maximum of 50W x 4.
The supplied parts list covers the cord unit, mounting screws and documentation. No remote control is listed, and no pre-out level is given in the specification.
| DEH-003 SPECIFICATIONS | |
|---|---|
| Media | CD |
| FM tuner | 76.1 -> 89.9 MHz. Usable sensitivity 8 dBf (0.7 uV/75 ohm, mono, S/N 30 dB), S/N 50 dB sensitivity 10 dBf (0.9 uV/75 ohm, mono), S/N 75 dB (IHF-A network), THD 0.3% stereo and 0.1% mono (65 dBf input, 1 kHz), frequency response 30 -> 15,000 Hz (plus or minus 3 dB), stereo separation 45 dB (65 dBf input, 1 kHz) |
| AM tuner | 522 -> 1,629 kHz (9 kHz), usable sensitivity 18 uV (S/N 20 dB), usable selectivity 65 dB (plus or minus 9 kHz) |
| CD section | Compact disc digital audio system, 44.1 kHz sampling, 16-bit linear quantisation, frequency response 5 -> 20,000 Hz (plus or minus 1 dB), S/N 94 dB (1 kHz, IHF-A network), dynamic range 92 dB (1 kHz), 2 channels stereo |
| Audio section | Maximum output 50W x 4, rated output 22W x 4 (50 -> 15,000 Hz, 5% THD), load impedance 4 ohm (4 to 8 ohm usable) |
| Parametric equaliser | Three bands, each plus or minus 12 dB with Q factors of 0.35, 0.59, 0.95 or 1.15 at 6 dB boost. Low 40, 80, 100 or 160 Hz. Middle 200, 500 Hz, 1 or 2 kHz. High 3.15, 8, 10 or 12.5 kHz |
| Loudness contour | Low 3.5 dB (100 Hz) and 3 dB (10 kHz), middle 10 dB and 6.5 dB, high 11 dB and 11 dB, all at minus 30 dB volume |
| Supplied parts | Cord unit, mounting screws, manuals and warranty documents. No remote control listed |
| Electrical | DC 14.4V (10.8 -> 15.1V usable), negative earth, maximum current draw 10A |
| Form factor | Single-DIN, 178 x 50 x 162 mm with a 170 x 46 x 14 mm nose, mass 1.3 kg excluding the cord |
| Source | Pioneer Carrozzeria owner's manual for the DEH-003 |
