Addzest DMZ545LP

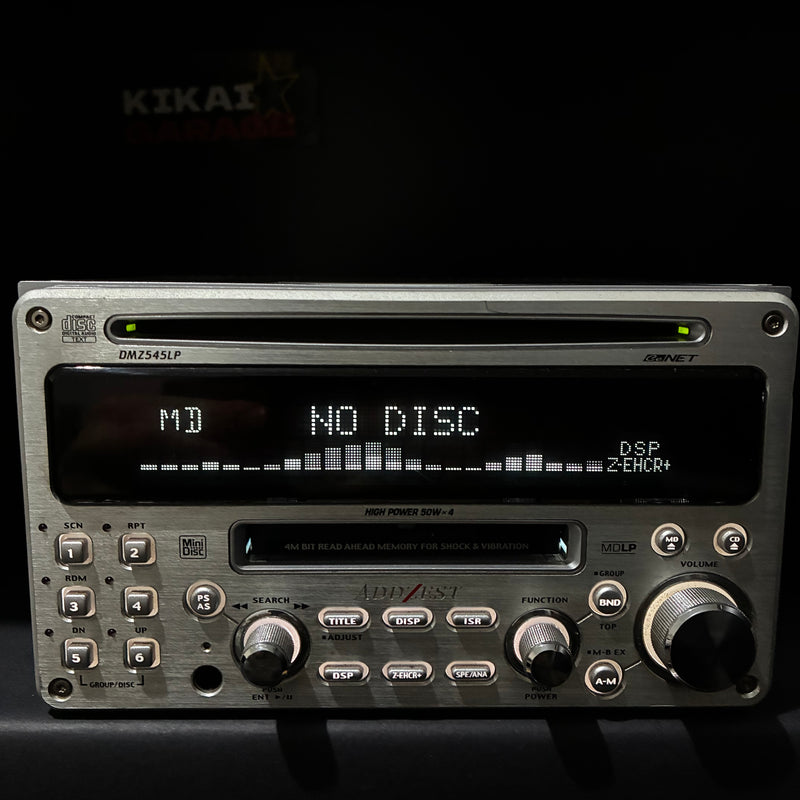

The Addzest DMZ545LP is a double-DIN centre unit with MiniDisc and CD transports and an FM/AM tuner. The manual describes it as a CeNET-compatible 2DIN centre unit able to control an external DVD, CD or MD changer, and covers the DMZ545LP alongside the DMZ545BK on a shared specification page.

MDLP playback is listed among the unit's principal features. The manual states that an 80 minute MiniDisc gives 160 minutes of continuous playback in double mode and 320 minutes in quadruple mode, and that group-edited MiniDiscs are supported. MP3 appears in the manual only as a display state for an attached DVD changer, not as a format the unit's own CD transport decodes.

The CD section is quoted at 100 dB signal-to-noise with 95 dB dynamic range across 10 Hz -> 20 kHz within plus or minus 1 dB, and 0.01 percent distortion. The MiniDisc section returns 90 dB signal-to-noise, 85 dB dynamic range and 0.01 percent distortion at 1 kHz.

Sound processing is arranged in two independent layers. Z-Enhancer Plus provides five settings, listed as Bass Boost, Impact, Excite, Custom and off. A separate five-mode DSP provides Stadium, Hall, Club, Church and Living Room settings. Magna Bass EX adds 10 dB at 50 Hz at volume step 14. Tone control is a two-band arrangement with bass selectable at 60, 100 or 200 Hz across plus or minus 15 dB and treble at 10 or 15 kHz across plus or minus 12 dB.

Tuner features documented include ISR one-touch station recall, an area select function that displays station names automatically for a chosen tuner region, and 30 stations of name memory. A Message Information function displays up to 30 characters of user text as a screen saver. The auxiliary input has three selectable sensitivity settings for a 2V output, at 650 mV, 1.3V and 2.0V.

DMZ545LP SPECIFICATIONS
Media	MiniDisc with MDLP (160 minutes in double mode, 320 minutes in quadruple mode from an 80 minute disc) including group-edited discs, plus CD
FM tuner	76.0 -> 90.0 MHz. Usable sensitivity 9 dBf, 50 dB quieting sensitivity 15 dBf, S/N 70 dB, frequency response 30 Hz -> 15 kHz (plus or minus 3 dB), separation 35 dB (1 kHz), THD 0.3% (1 kHz)
AM tuner	522 -> 1,629 kHz, usable sensitivity 28 dBuV, S/N 50 dB
CD section	Frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), S/N 100 dB, dynamic range 95 dB, THD 0.01%
MD section	Frequency response 20 Hz -> 20 kHz, S/N 90 dB, dynamic range 85 dB, THD 0.01% (1 kHz)
Audio section	Maximum output 50W x 4, rated output 17W x 4 (20 Hz -> 20 kHz, 1%, 4 ohm), load impedance 4 ohm (4 to 8 ohm), line out level 2.0V (CD at 1 kHz)
Sound processing	Z-Enhancer Plus with five settings (Bass Boost, Impact, Excite, Custom, off) and a five-mode DSP (Stadium, Hall, Club, Church, Living Room, off). Magna Bass EX plus 10 dB at 50 Hz at volume step 14
Tone control	Bass at 60, 100 or 200 Hz, plus or minus 15 dB. Treble at 10 or 15 kHz, plus or minus 12 dB
Auxiliary input	Three input sensitivity settings for 2V output: low 650 mV, mid 1.3V, high 2.0V
Tuner features	ISR one-touch station recall, area select automatic station naming, 30 station name memory
Display	Message Information screen saver, up to 30 characters in alphanumerics or katakana
Expansion	CeNET wiring for an external DVD, CD or MD changer
Supplied parts	Power lead, sems hex bolts (eight), flat screws M5 x 8 (eight), manuals and warranty documents. No remote control listed
Electrical	DC 14.4V, negative earth, current draw 3.0A at 1W output, fuse rating 15A and 3A

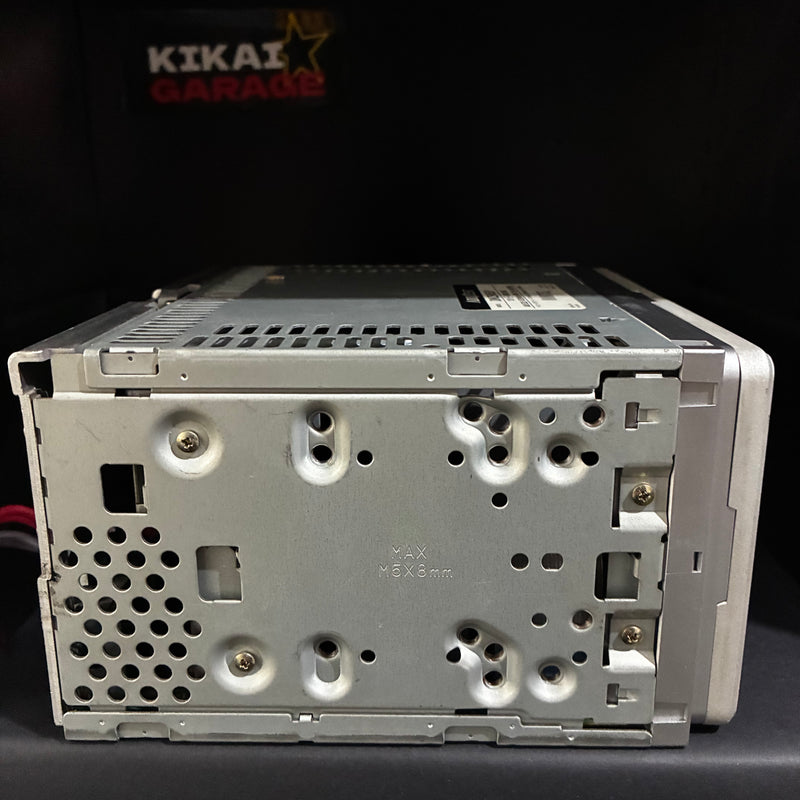

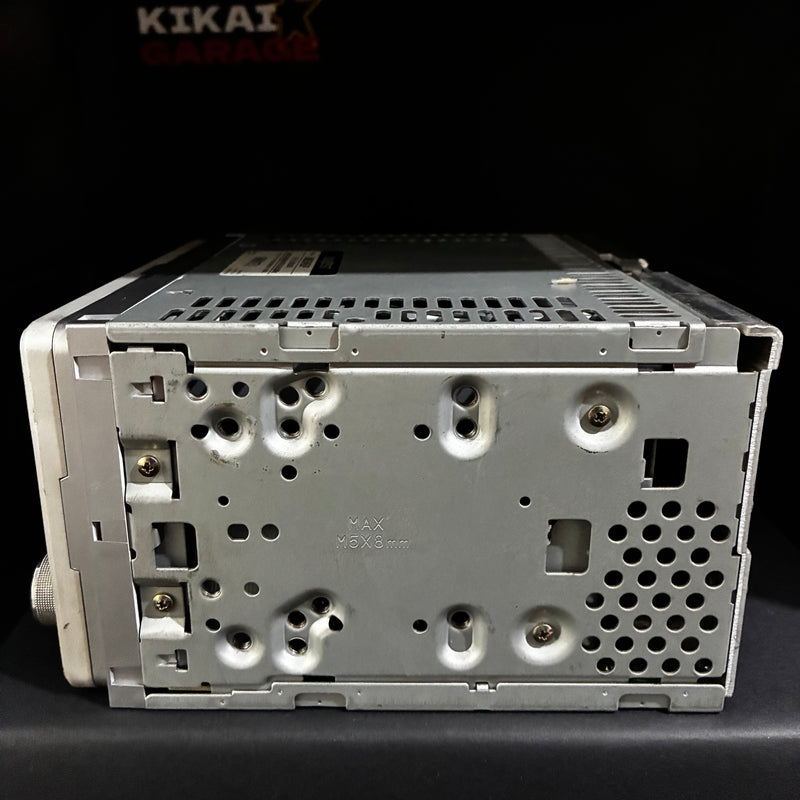

Form factor	Double-DIN, 178 x 100 x 180.5 mm with a mounting depth of 156.5 mm, mass 2.2 kg
Source	Addzest owner's manual, covering DMZ545LP and DMZ545BK
