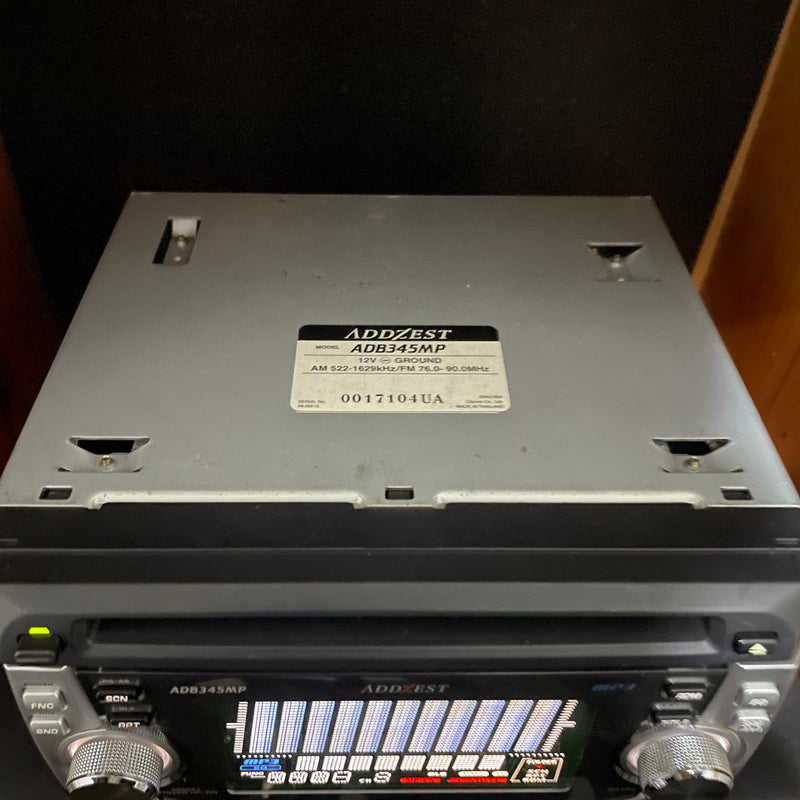

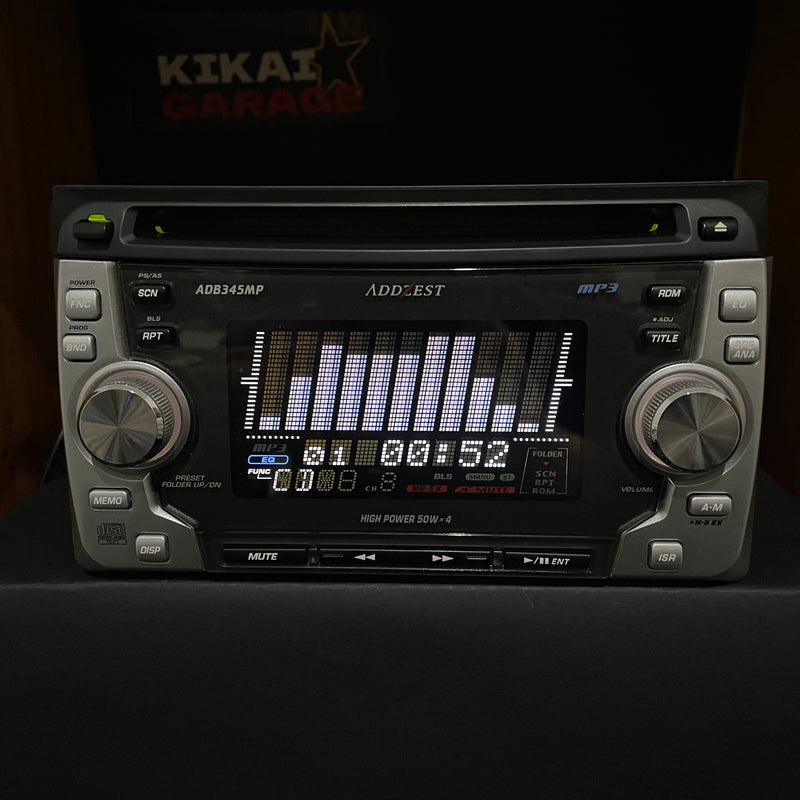

Addzest ADB345MP

The Addzest ADB345MP is a double-DIN centre unit with a CD transport, a cassette deck and an FM/AM tuner. The manual describes it as a 2DIN CD/MP3/カセット センターユニット. It is the only unit in this archive combining a cassette deck with MP3 decoding.

The CD transport decodes MP3 to MPEG-1 Audio Layer-3. Supported sampling rates are listed by MPEG generation: 32, 44.1 and 48 kHz for MPEG-1, 16, 22.05 and 24 kHz for MPEG-2, and 8, 11.025 and 12 kHz for MPEG-2.5. Bit rates run 32 -> 320 kbps including variable bit rate for MPEG-1, and 8 -> 160 kbps for MPEG-2 and MPEG-2.5. Disc structure is read as CD-ROM mode 1 or mode 2 form 1 with automatic detection, in ISO9660 level 1 and 2, Joliet or Romeo logical formats, across up to eight folder levels. The unit holds a maximum of 128 folders and 256 files including folders, with file and folder names up to 64 and 32 single-byte characters in Joliet.

The CD section is quoted at 100 dB signal-to-noise with 95 dB dynamic range across 10 Hz -> 20 kHz within plus or minus 1 dB and 0.01 percent distortion. The cassette deck returns 30 Hz -> 18 kHz frequency response, 45 dB channel separation at 1 kHz and 0.06 percent WRMS wow and flutter, with a fast wind or rewind of a C-60 cassette in about 110 seconds.

Tone control is a three-band arrangement fixed at 100 Hz, 1 kHz and 10 kHz, each across plus or minus 10 dB, alongside a four-mode equaliser. Magna Bass EX adds 8 dB at 100 Hz and 6 dB at 10 kHz at minus 32 dB volume.

Output is rated at 17W x 4 across 20 Hz -> 20 kHz at 1 percent into 4 ohms with a maximum of 50W x 4. Current draw is 3.0A at 1W output with a 15A fuse. At 183 mm deep with a 156.5 mm mounting depth, this is the deepest chassis recorded here.

ADB345MP SPECIFICATIONS
Media	CD with MP3 decoding (MPEG-1 Audio Layer-3) and cassette
FM tuner	76.0 -> 90.0 MHz. Usable sensitivity 9 dBf, S/N 70 dB, frequency response 30 Hz -> 15 kHz (plus or minus 3 dB), separation 35 dB (1 kHz), THD 0.4% (1 kHz)
AM tuner	522 -> 1,629 kHz, usable sensitivity 28 dBu, S/N 50 dB
CD section	Frequency response 10 Hz -> 20 kHz (plus or minus 1 dB), S/N 100 dB, dynamic range 95 dB, THD 0.01%
Cassette section	Frequency response 30 Hz -> 18 kHz, channel separation 45 dB (1 kHz), wow and flutter 0.06% (WRMS), fast wind and rewind about 110 seconds (C-60)
MP3 support	Sampling rates 32, 44.1, 48 kHz (MPEG-1), 16, 22.05, 24 kHz (MPEG-2), 8, 11.025, 12 kHz (MPEG-2.5). Bit rates 32 -> 320 kbps with VBR (MPEG-1), 8 -> 160 kbps (MPEG-2 and 2.5). Sector structure CD-ROM mode 1 and mode 2 form 1, automatically detected. Logical formats ISO9660 level 1 and 2, Joliet, Romeo. Eight folder levels, maximum 128 folders and 256 files including folders
Audio section	Maximum output 50W x 4, rated output 17W x 4 (20 Hz -> 20 kHz, 1%, 4 ohm), load impedance 4 ohm (4 to 8 ohm)
Tone control	Bass plus or minus 10 dB (100 Hz), middle plus or minus 10 dB (1 kHz), treble plus or minus 10 dB (10 kHz). Magna Bass EX plus 8 dB (100 Hz) and plus 6 dB (10 kHz) at minus 32 dB volume
Equaliser	Four modes
Supplied parts	Power lead, sems hex bolts (eight), flat screws M5 x 8 (eight), manuals and warranty documents

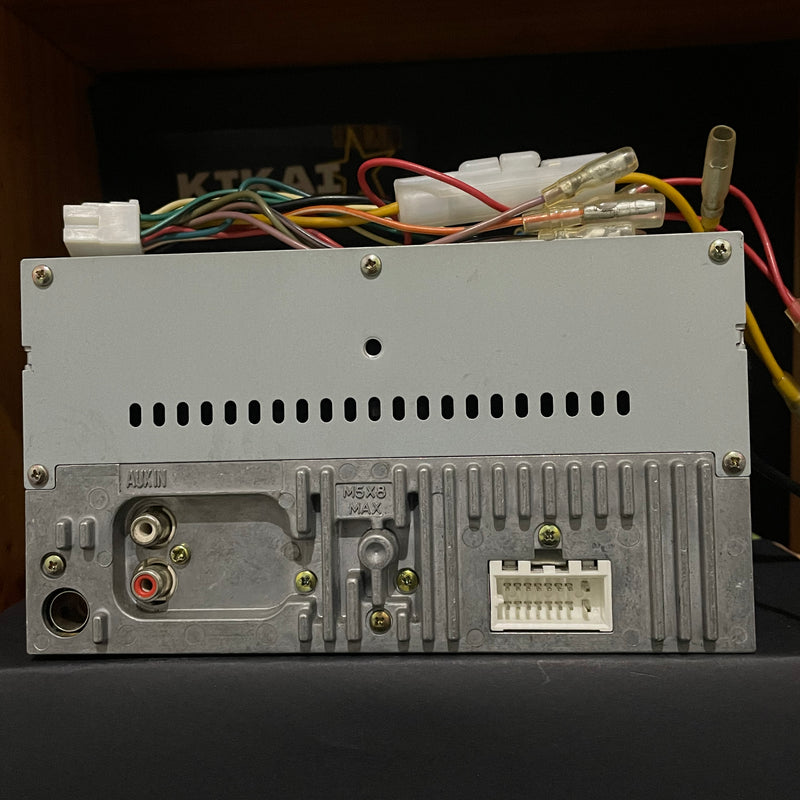

Electrical	DC 14.4V, negative earth, current draw 3.0A at 1W output, fuse rating 15A

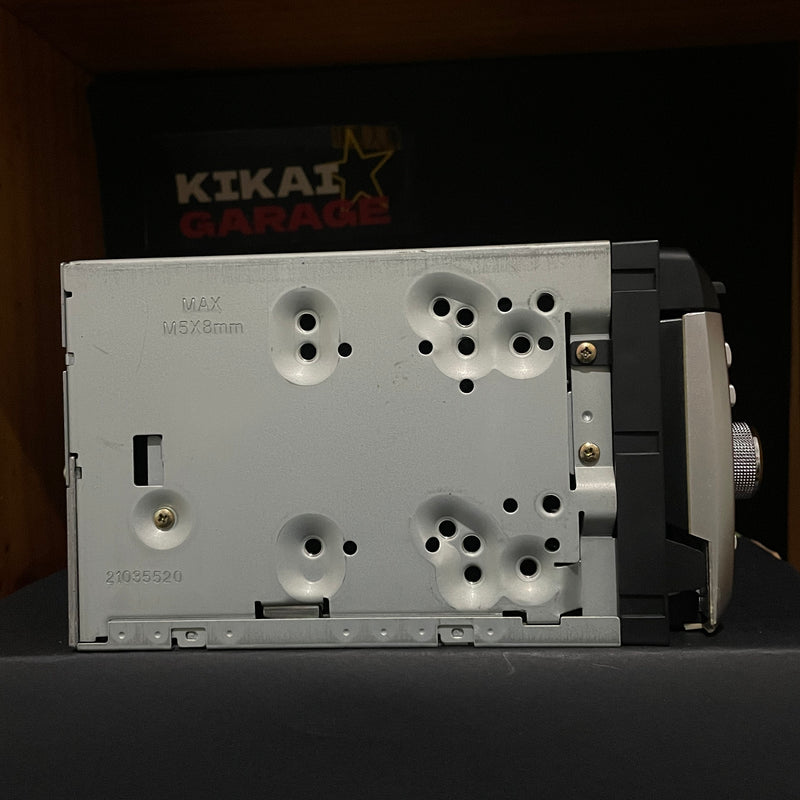

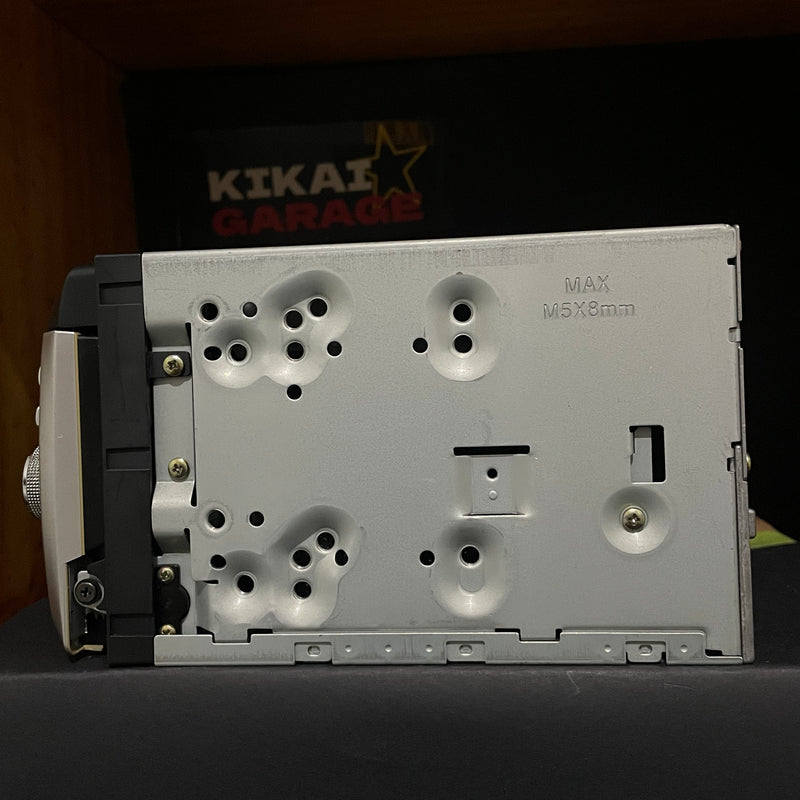

Form factor	Double-DIN, 178 x 100 x 183 mm with a mounting depth of 156.5 mm, mass 2.1 kg
Source	Addzest owner's manual for the ADB345MP
